35mm Galvanized Steel Washer Discs For Tile Backer Boards

Large Image : 35mm Galvanized Steel Washer Discs For Tile Backer Boards

Product Details:

Place of Origin:	China
Brand Name:	HUIHAO CUSTOM
Certification:	ISO9001-2008
Model Number:	35mm Galvanized Steel Washer Discs

Payment & Shipping Terms:

Minimum Order Quantity:	50000pcs

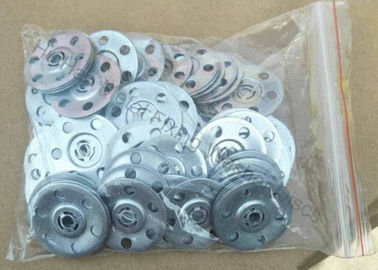

Packaging Details:	100 pcs per bag, 50pcs per carton, 36 cartons per pallet
Delivery Time:	20 days after the payment
Payment Terms:	L/C,T/T,Western Union,PayPal
Supply Ability:	1,000,000 pcs per 20 days

Contact Now

35mm Galvanized Steel Washer Discs For Tile Backer Boards

Description

Item:	35mm Galvanized Steel Washer Discs	Material:	Galvanized Steel Or Stainless Steel
Diameter:	35mm	Package:	As Your Requirement
Thickness:	0.6mm	Samples:	Free
Center Hole:	5mm	Logo:	Customizable
Highlight:	35mm washer discs , galvanized steel washer discs , tile backer boards washer discs

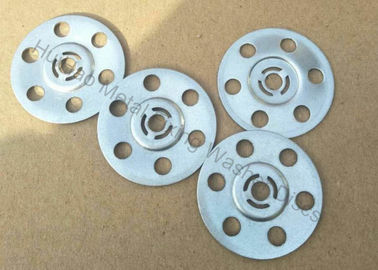

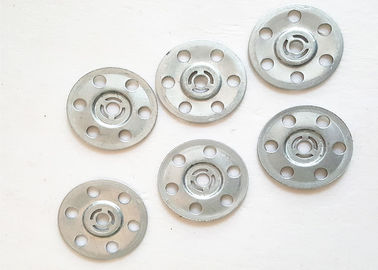

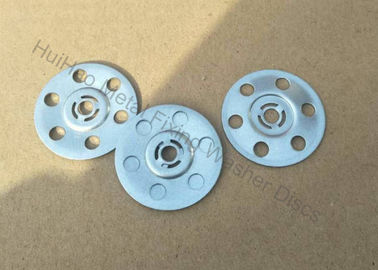

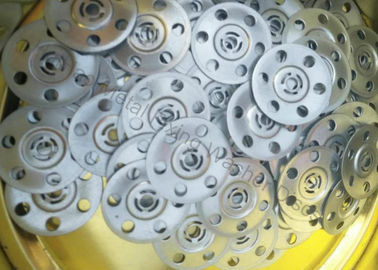

35mm Galvanized Steel Washer Discs For Wall And Floor Tile Backer Boards

Product Specifications

Attribute	Value
Item	35mm Galvanized Steel Washer Discs
Material	Galvanized Steel Or Stainless Steel
Diameter	35mm
Package	As your requirement
Thickness	0.6mm
Samples	Free
Center Hole	5mm
Logo	Customizable

Technical Specifications

Material	Galvanized steel	Stainless steel
Thickness	0.6mm	0.6mm
Diameter	35mm	35mm
Center hole	5mm	5mm

Galvanized steel washer discs are widely used for fixing tile backer boards to wooden sub-floors. These fixing discs have been specially designed to provide an easy, secure way to fix Marmox and Wedi type insulation boards to walls and floors.

Key Advantages

Counter-sunk design: Allows screw heads to pull into the board while maintaining a flush outer rim for a flat surface ready for subsequent layers.
Perforated surface: Maximizes board surface exposure, allowing adhesives and plasters to adhere properly and minimizing risk of delamination.
Galvanized protection: Provides corrosion resistance and long-term durability.

Installation Guidelines

When fixing tile backer boards, we recommend using 15 discs per 1200 x 600mm board. This is a general guideline - the actual number required may vary based on board type, thickness, subsurface, and intended application.

Packaging Options
