Frame Type Shale Shaker Screen, Self Cleaning Mesh Composite Mesh For Industry

Frame Type Shale Shaker Screen, Self Cleaning Mesh Composite Mesh For Industry
Frame Type Shale Shaker Screen, Self Cleaning Mesh Composite Mesh For Industry Frame Type Shale Shaker Screen, Self Cleaning Mesh Composite Mesh For Industry Frame Type Shale Shaker Screen, Self Cleaning Mesh Composite Mesh For Industry

Large Image :  Frame Type Shale Shaker Screen, Self Cleaning Mesh Composite Mesh For Industry

Product Details:
Place of Origin: China
Brand Name: huihao
Certification: ISO
Model Number: shale shaker screen
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Packaging Details: carton box +wooden case , or packed As your request.
Delivery Time: 15 days after first payment
Payment Terms: L/C, T/T, Western Union.PAYPAL
Supply Ability: 1000PCS PER 7 DAYS

Frame Type Shale Shaker Screen, Self Cleaning Mesh Composite Mesh For Industry

Description
Name: Shale Shaker Screen Material: Stainless Steel Wire, Low Carbon Galvanized.
Application: Linear Motion Shale Shaker ,drilling Fluids Solids Control Dimension: 585 × 170mm,635 × 1253mm,913 × 650mm,720 × 1220mm
Weight: 6-17kgs Size: 1250×630mm
High Light:

crimped wire mesh

,

stainless steel filter mesh



Frame Type Shale Shaker Screen, Self Cleaning Mesh Composite Mesh For Industry



Frame Type Shale Shaker Screen, Self Cleaning Mesh Composite Mesh have many types : such as hook strip soft screen , hook strip flat screen , waving type shale shaker screen and frame type shale shaker screen



>>>Frame Type Frame Type Shale Shaker Screen, Self Cleaning Mesh Composite Mesh



Steel frame shaker screen also called steel frame shale shaker screen. It is a type of replacement screen widely applied in oil vibrating applications. Steel frame shale shaker has a high strength steel frame structure. This type shaker screen consists of two or three layers of stainless steel wire mesh. Its supporting layer and working layer work together to make the screen more durable.



Specifications:

  • Screen material: stainless steel wire.
  • Screen layers: two or three.
  • Colors: black, blue, red, gray, etc.

The technical parameters of the Frame Type Shale Shaker Screen, Self Cleaning Mesh Composite Mesh



Screen Model Range of Mesh Dimension (length × width) Weight (kg)
HHMESH-1 16 - 325 585 × 1170mm 12
HHMESH-2 16 - 325 635 × 1253mm 13.5
HHMESH-3 16 - 325 913 × 650mm 12.5
HHMESH-4 16 - 325 720 × 1220mm 17
HHMESH-5 16 - 325 712 × 1181mm 17

Frame Type Shale Shaker Screen, Self Cleaning Mesh Composite Mesh For Industry 0



The replacement screens can be specifically designed to fit various shale shakers. Specifications can be customized according to your needs.



>>>Wave Type Shale Shaker Screen



Wave type shale shaker screen  like unique wavy, installation can be hook edge or steel frame. Compared with plate type oil vibrating screen, wave type oil vibrating screen's effective area is big during high drilling fluid processing.



Specifications:

Wave type vibaring screen technical parameters

Items

Mesh

Dimension
(L × W)

Approx Weight

Screen Layer

Screen Material

Frame Material

Three-dimensional shaker screen A

API 20 - API 400

1050 × 695 mm

7.5 kg

2 or 3

SS304 or SS316

carbon steel

Three-dimensional shaker screen B

API 20 - API 400

1053 × 697 mm

5.8 kg

2 or 3

SS304

carbon steel

Specifications of three-dimensional shaker screen can be customized according to your needs.



Frame Type Shale Shaker Screen, Self Cleaning Mesh Composite Mesh For Industry 1

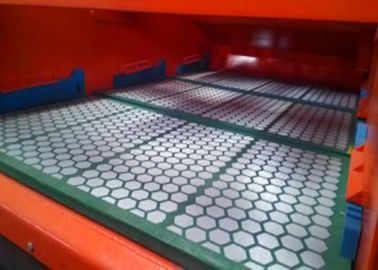

Application in Linear Motion Shale Shaker

Application in Balanced elliptical shale shaker

Shale Shaker for drilling fluids solids control



Frame Type Shale Shaker Screen, Self Cleaning Mesh Composite Mesh For Industry 2



Packaging of the shale shaker screen :

carton box+ wooden case or packed as reequest



Frame Type Shale Shaker Screen, Self Cleaning Mesh Composite Mesh For Industry 3
