Product Details:
|
| Name: | PVD Color Metal Frame Room Drivider | Type: | FRAME TYPE |
|---|---|---|---|
| Dimensions: | 750x3500mm, 850x4300mm, 950x4880mm | Frame Size: | 40mmx40mm |
| Mesh: | Rigid Type | Installation Parts: | Support |
| High Light: | woven wire screen mesh,architectural steel mesh |
||
Specification of PVD Color Metal Frame Room Drivider With Steel Rigid Decorative Weave Fabric
| material | wire diameter | wire type | aperture |
| stainless steel 304 | 1.5mmx2.5mm | crimped flat wire | 15mmx15mm |
| frame type | frame size | max width | max length |
| square tube | 40mmx40mm | 2400mm | 6000mm |
| surface treatment | color | custom services | |
| pvd | gold | pattern design, frame design | install parts |
pattern design services for PVD Color Metal Frame Room Drivider With Steel Rigid Decorative Weave Fabric
we had design more than 200 types patterns rigid decorative weave fabric, and we are according customer's requirements
to design the frame and install parts. and our factory own ISO 9001-2008 , and we accept third test .
 |
|
|
|
|

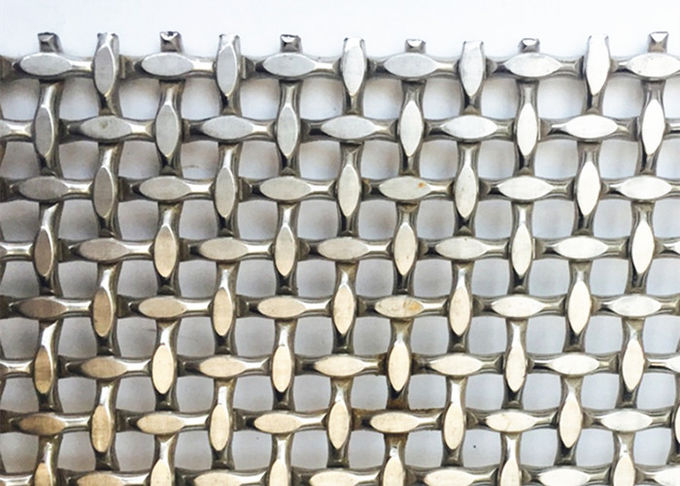

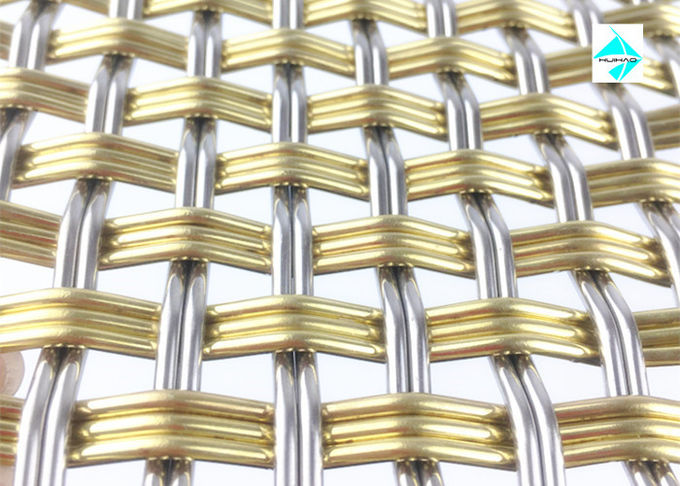

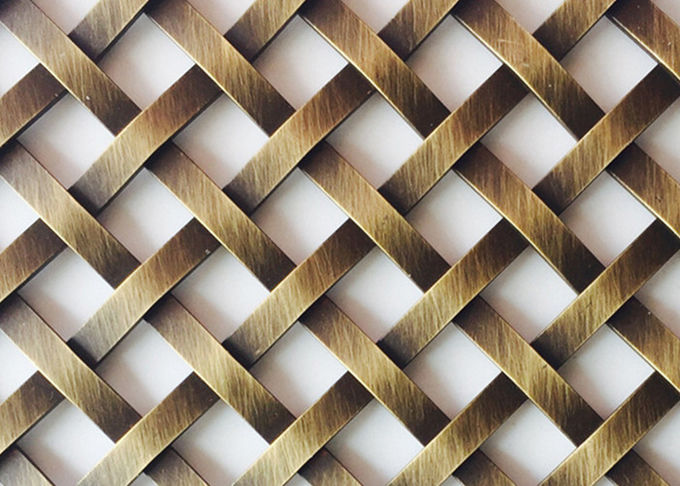

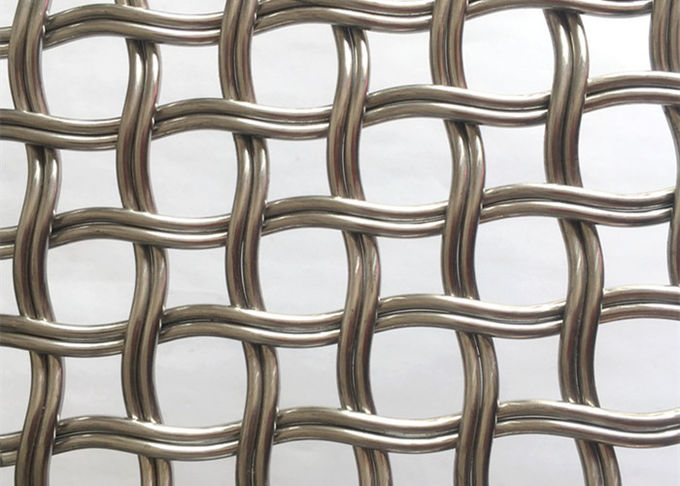

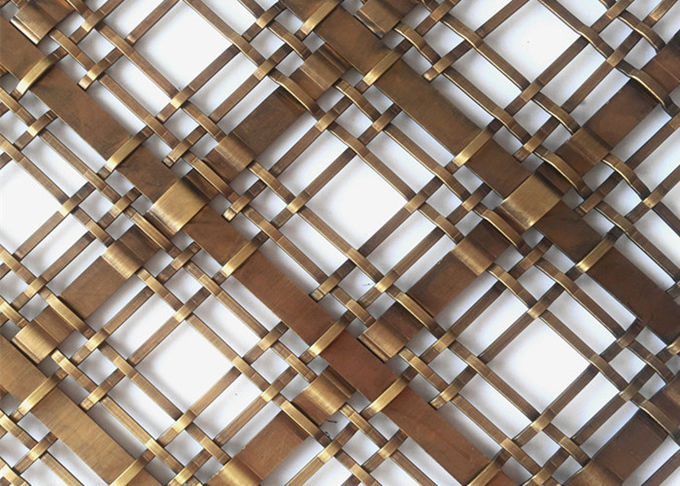

Rigid Decorative Weave Fabric flat wire diameter: 2.5mmx1.5mm aperture:8.5mmx8.5mm |
Rigid Decorative Weave Fabric warp wire :2mm warp pitch:21.5mm weft wire:2mm weft pitch:50mm |
Rigid Decorative Weave Fabric wire diameter: 1.4mm×3mm×4, 1.0mm×10mm×1 aperture pitch:63mm |
Rigid Decorative Weave Fabric wire diameter:2mmx2 aperture:13mmx13mm |
|
|
|
|
|
Rigid Decorative Weave Fabric warp wire :2mm warp pitch:5mm weft wire:1.2mmx2 weft pitch:5mm
|
Rigid Decorative Weave Fabric wrap wire diameter:2mmx3 wrap pitch:6mm weft wire diameter:2mmx2 weft pitch:4mm
|
Rigid Decorative Weave Fabric rod wire:2mm rod pitch:4.5mm flat wire:1mmx3.8,mm flat wire pitch:50mm
|
Rigid Decorative Weave Fabric warp wire:2mm warp picth:5mm weft wire:1mmx4mm weft pitch:4mm |
|
|
|
|
|
Rigid Decorative Weave Fabric flat wire:1.5mmx4mm aperture:20mmx20mm
|
Rigid Decorative Weave Fabric warp wire:1.35mm warp pitch:2.5mm weft wire:1.6mm weft pitch:5.4mm
|
Rigid Decorative Weave Fabric rod wire:2mm rod picth:6mm crimped wire:2mmx3 crimped wire pitch:6mm |
Rigid Decorative Weave Fabric rod wire:1.2mm rod pitch:5mm crimped wire:1.2mmx3mm crimped pitch:12mm |
frame design services for PVD Color Metal Frame Room Drivider With Steel Rigid Decorative Weave Fabric
| V Type frame | U type frame | L type frame |
|
|
|
