Product Details:
|
| NAME: | Drum Johnson Wire Screen | External Diameter: | 25-300MM |
|---|---|---|---|
| Length: | Upto 4000mm | Material: | Ss316,304 |
| Standard: | Non-standard, OEM, ODM | Slot: | 0.05-100mm |
| Highlight: | johnson well screen,johnson stainless steel screen |
||
Rotary Drum Johnson Wire Screen details
___________________________________________________________________________________
Wedge Wire Cylinders, rotary drum johnson wire screen are created by wrapping a continuous piece of Wedge Wire across a number of support rods.
Each time the Wire touches a support rod they are fused together, once the drum is complete it may stay as a cylinder or cut open and rolled the
opposite way to create a reverse rolled cylinder.
Some uses for Wedge Wire reverse rolled cylinder are to sieve powders such as flour. Flour is pumped inside the cylinder, once inside it is then forced
through the small slots in the Wedge Wire, therefore, breaking it down into a finer powder.
Specification of rotary drum johnson wire screen
___________________________________________________________________________________
It is made of 'V' shaped stainless steel wire and stainless steel strip. Smooth surface is for filtering, the gap is strip, belonging to the form of surface
filtration. As a multiform of automatic filters ( such as automatic back washing, scraper self-cleaning, scraping disc self-cleaning, sucking self-cleaning
filter) are widely used in various industries of fluid filtration.
|
OD Range |
According to request and the actual flange and strengthen bar |
||||
|
Normal ID |
176mm, 200mm, 230mm, 255mm. According to request |
||||
|
Normal Length |
600mm, 602mm, According to request |
||||
|
Normal Slot |
0.21mm, 0.4mm, 0.41mm, 0.8mm. Customized 0.02-3mm. |
||||
|
Slot Direction |
Radial Direction |
||||
|
Wedge Wire |
0.75x1.5 |
1x2 |
2x3 |
2*4 |
3*5 |
|
Support Rod |
1.5x2.5 2x3 |
1.5x2.5 2x3 |
2x3 2x4 3x5 3x6
|
2x4 3x5 3x6 5x6 |
3x5 3x6 5x6
|
|
End Finishing |
Flange, , Metal Ring, etc |
||||
|
Note |
Customized According To Requirement |
||||

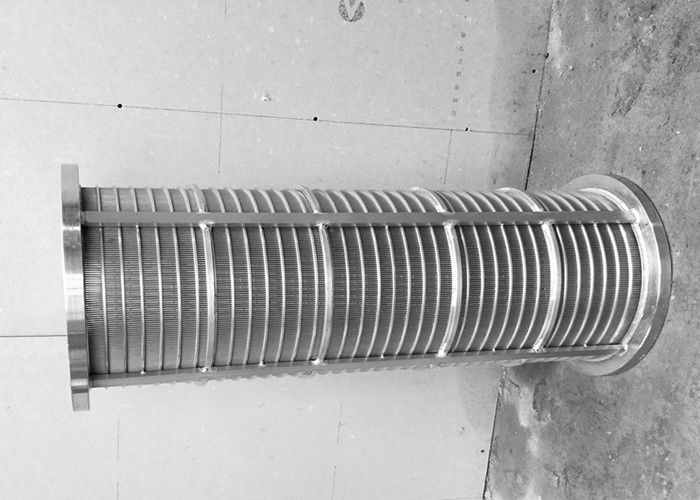

Images of rotary drum johnson wire screen
___________________________________________________________________________________
Features of johnson wire screen
___________________________________________________________________________________
1. A continuous slot opening which significantly increases the available open area, thus providing greater access to the water-bearing zone
2. A V-shaped profile wire which avoids clogging and ensures an uninterrupted flow.
3. A uniform and efficient well development due to the continuous slot opening.
4. Vee wire welded screens have a strong structure and high open area, as well as an accurate slot dimension.
5. Vee wire welded screens have the features of easy backwashing, last long, safety, and reliability as well as low comprehensive cost.
