Product Details:
|
| Product Name: | Speedfix Insulation Self Locking Washer | Material: | Aluminum, Mild Steel , Stainless Steel |
|---|---|---|---|
| Washer Shape: | Round, Square | Clips Size: | 28mm,30mm,38mm |
| Pins Diameter: | 2.7mm,3mm In Common , Also Could Be Customized | Cap: | Cap Is Available |
| Small Order: | Available | Sample: | Support |
| High Light: | heat insulating washers,insulation fixing washer |
||
Huihao company supply square / round speedfix insulation washers,and dome cap insulation washers .
Detail specificaton of the speedfix insulation washers:
| insulation self locking washer | insulation dome cap washer |
| Speedfix insulation washers are used in conjunction with weld pins, insulation anchors and lacing anchors to fasten insulation in place, simply press with self locking washer onto the pin up to the insulation until the desired position is reached, then clip off or bend over the remaining portion of pin for a permanent attachment | Dome cap insulation washers are designed to be used where appearance and safety are factors when installing insulation, or fabricating blankets or pads. The washers are used to cover the nail point on weld pins, hangers, lacing anchors & quilt pins. |
Specification of insulation self locking washer- dome caps washers
| Material | Washer shape | diameter | center hole | height | Packaging |
| Alu, steel, ss | Round | 22mm | 10Ga, 12Ga, 14Ga | 8mm | 1000pcs/carton |
| Alu, steel, ss | Round | 25mm | 10Ga, 12Ga, 14Ga | 8mm | 1000pcs/carton |
| Alu, steel, ss | Round | 30mm | 10Ga, 12Ga, 14Ga | 8mm | 1000pcs/carton |
| Alu, steel, ss | Round | 38mm | 10Ga, 12Ga, 14Ga | 8mm | 1000pcs/carton |
| Dome cap washers also could be customized | |||||
Both round or square Speedfix Insulation Self Locking Washer
are available as a matter of design or application preference, The domed, multi-lanced hole design provides for ease of
locating washer on pin and positive locking. Washers are manufactured with a beveled edge to prevent the washer from
cutting into the insulation facing.
Round or square speedfix insulation washers without caps :
| Material | Washer shape | Washer diameter | Pin diameter | Packaging |
| Aluminum,SS, Galv steel | Round / square | 25mm | 10Ga, 12Ga, 14Ga | 1000pcs/carton |
| Aluminum,SS, Galv steel | Round / square | 28mm | 10Ga, 12Ga, 14Ga | 1000pcs/carton |
| Aluminum,SS, Galv steel | Round / square | 30mm | 10Ga, 12Ga, 14Ga | 1000pcs/carton |
| Aluminum,SS, Galv steel | Round / square | 38mm | 10Ga, 12Ga, 14Ga | 1000pcs/carton |
| the insulation washers specifications also could be customized | ||||
Advantages of the Speedfix Insulation Self Locking Washer

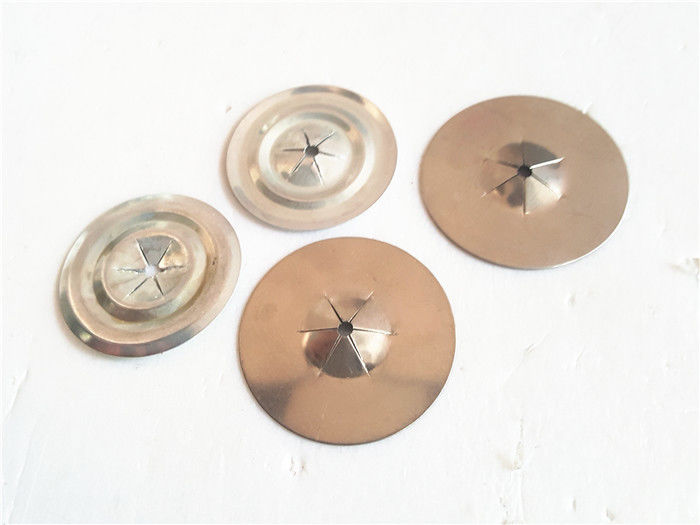

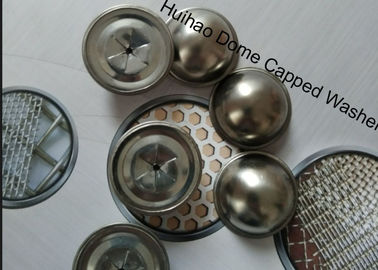

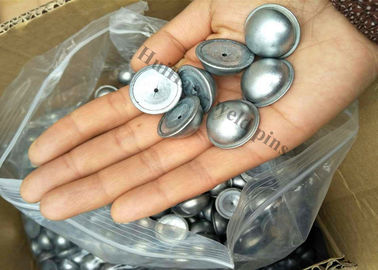

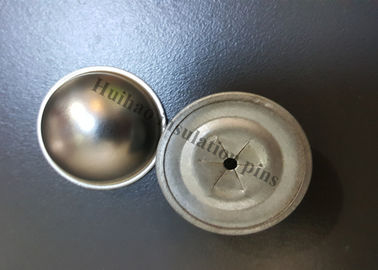

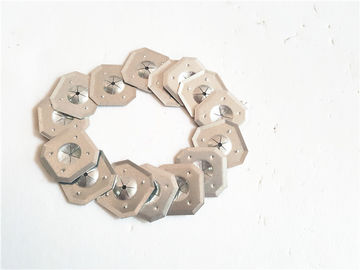

images of Speedfix Insulation Self Locking Washer
