Square Metal Self Locking Washer With Beveled Edges 64x64mm For Insulation Pins

Square Metal Self Locking Washer with Beveled Edges 64x64mm for Insulation Pins

Square self locking washers are available according to the chart below and with standard 14GA, 12GA, 3mm or 10GA hole sizes.

Detail specificaton of the square self locking washers:

Characteristics of the square self locking washers

• Quick Mounting
• Stallable to all positions
• Fire-resistant
• Other dimensions are available upon special request.
• Square self locking washers are available as a matter of design or application preference,
• The domed, multi-lanced hole design provides for ease of locating washer on pin and positive locking.
• Washers are manufactured with a beveled edge to prevent the washer from cutting into the insulation facing.

application of square self locking washers

Square self locking washers are used in conjunction with weld pins, insulation anchors and lacing anchors to fasten insulation

in place, simply press with self locking washer onto the pin up to the insulation until the desired position is reached, then clip off

or bend over the remaining portion of pin for a permanent attachment

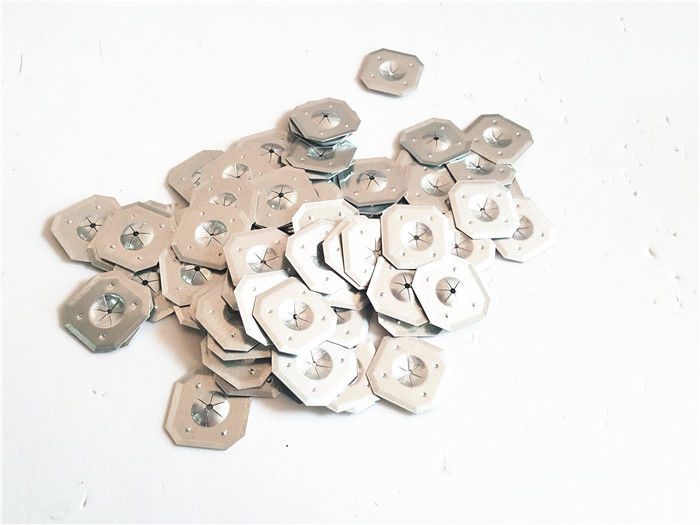

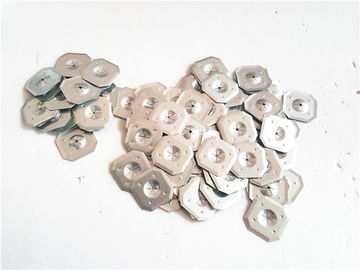

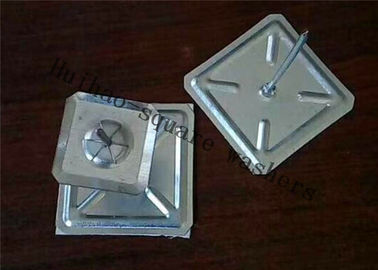

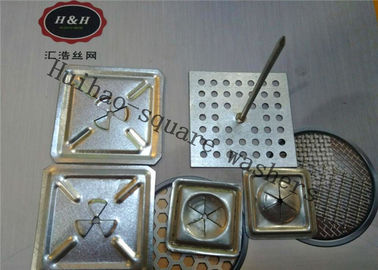

images of square self locking washers
