Galvaznied Steel Self Adhesive Insulation Hangers Pins For Fixing Rock Wool Layer

Large Image : Galvaznied Steel Self Adhesive Insulation Hangers Pins For Fixing Rock Wool Layer

Product Details:

Place of Origin:	China
Brand Name:	HUIHAO
Certification:	ISO
Model Number:	Self Adhesive Insulation Hangers

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Packaging Details:	Package 1. insulation pin length less than 65mm, 1000pcs per carton, 64 cartons per pallets. 2. insulation pins length 70mm-120mm, 500pcs per cartons,64 cartons per pallets. 3. insulation pins length 125mm-250mm, 250 pcs per cartons, 64 cartons per pallet
Delivery Time:	7 work days
Payment Terms:	L/C,T/T,Western Union,paypal

Contact Now

Galvaznied Steel Self Adhesive Insulation Hangers Pins For Fixing Rock Wool Layer

Description

Product Name:	Self Adhesive Insulation Hangers	Material:	Aluminum, Mild Steel, Galvanized Steel
Pin Diameter:	12 Ga	Length:	25mm-180mm
Base Thickness:	0.4-0.8mm	Base Size:	2" X 2"

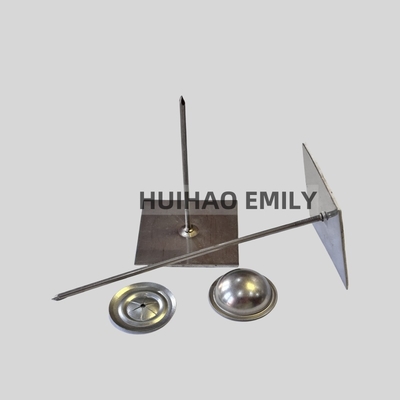

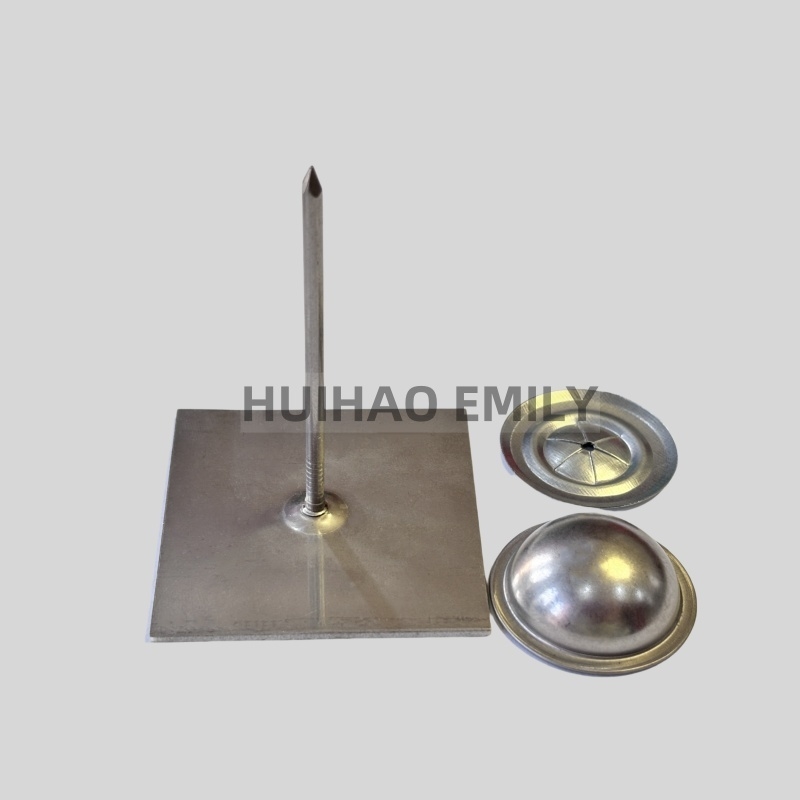

Accessories:	Self Locking Washer,dome Cap Washer	Sample:	Support
Highlight:	insulation hangers , insulation pins and washers

Galvanized Steel Self Adhesive Insulation Hangers Pins For Fixing Rock Wool Layer

Product Attributes

Attribute	Value
Product name	Self Adhesive Insulation Hangers
Material	aluminum, mild steel, galvanized steel
Pin diameter	12 ga
Length	25mm-180mm
Base thickness	0.4-0.8mm
Base size	2" x 2"
Accessories	self locking washer, dome cap washer
Sample	support

Product Description

Self-Adhering Hangers are designed to attach insulation to clean, dry, smooth, non-porous surfaces. After the hanger is installed, the insulation is impaled over the spindle & secured with a self-locking washer. Due to the nature of adhesives, it is important that the user read & follow the guidelines. It is the responsibility of the user to determine the suitability of the intended application.

Material: Galvanized Steel (Standard) Available in Stainless Steel & Aluminum as special order.

Other details: Standard Lengths are listed above. Other lengths available as Special Order.

Packaging: 1,000 pcs/ctn up to 2-1/2", 500 pcs/ctn up to 8". Hangers are available packed with, or without washers. 100 pc packaging also available. Other diameters available as Special Order. A complete line of Self-Locking Washers in various styles and materials is available for use with Self-Adhering Insul-Hangers.

Specifications

Pin Diameter	Tape Base	Pin Length
12 ga (.106)/ 3mm	50mm Square	1"
12 ga (.106)/ 3mm	50mm Square	1-5/8"
12 ga (.106)/ 3mm	50mm Square	2-1/2"
12 ga (.106)/ 3mm	50mm Square	3-1/2"
12 ga (.106)/ 3mm	50mm Square	4-1/2"
12 ga (.106)/ 3mm	50mm Square	5-1/2"
12 ga (.106)/ 3mm	50mm Square	6-1/2"
12 ga (.106)/ 3mm	50mm Square	8"
12 ga (.106)/ 3mm	50mm Square	8-1/2"
12 ga (.106)/ 3mm	50mm Square	9-1/2"
12 ga (.106)/ 3mm	50mm Square	10-1/2"
12 ga (.106)/ 3mm	50mm Square	12"

Product Image

Product Advantages

Suitable for all kinds of wall
High pull-off strength for a higher security of the system
Low thermal conduction addition value to avoid thermal bridge
Galvanized layer on the steel nail to protect the nail from alkali

Application

Application: It is fixed on the position where there is significant wind-suction-force or if the height is more than 20m or if the finishing coat is tile etc.

Installation Steps:

WIPE SURFACE CLEAN. Anchor should be applied to a clean, dry non-porous surface
PEEL OFF RELEASE BACKING. NOTE: Double faced foam tape has a one-year active shelf life
STICK ANCHOR IN PLACE. Select location before contact with surface. Press firmly
APPLY FIRM PRESSURE. 20 pounds of pressure should be applied all around the base of the anchor
ALLOW TO STAND 15-20 MINUTES. This will permit better adhesion to take place
INSTALL INSULATION AND SECURE WITH WASHER. Recommended load is 3 lbs. per anchor (.75 lbs./sq. inch maximum)
