Steel Perforated Base Insulation Pins Fix Insulation Rough Surface12Ga Dia 63.5mm

Large Image : Steel Perforated Base Insulation Pins Fix Insulation Rough Surface12Ga Dia 63.5mm

Product Details:

Place of Origin:	China
Brand Name:	Huihao
Certification:	ISO9001-2015
Model Number:	Self Adhesive Insulation Pins

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Packaging Details:	Self Adhesive Insulation Pins Packaging: 1,000 pcs/ctn up to 2-1/2" 500 pcs/ctn up to 8" Hangers are available packed with, or without washers 100 pc packaging also available
Delivery Time:	15 days after payment
Payment Terms:	L/C,T/T,Western Union,Paypal
Supply Ability:	300000pcs per 15 days

Contact Now

Steel Perforated Base Insulation Pins Fix Insulation Rough Surface12Ga Dia 63.5mm

Description

Material:	Galvanized Steel Or Stainless Steel Or Aluminum	Base Size:	2" X 2"
Base Thickness:	28ga As Standard	Pin Dia:	12ga As Standard
Pin Length:	1" To 12"	Washer Size:	38mm
Highlight:	insulation hangers , insulation wall plugs

Steel Perforated Base Insulation Pins Fix Insulation Rough Surface 12Ga Dia 63.5mm

Attribute	Value
Material	Galvanized Steel Or Stainless Steel Or Aluminum
Base Size	2" x 2"
Base Thickness	28ga as standard
Pin Dia	12ga as standard
Pin Length	1" to 12"
Washer Size	38mm

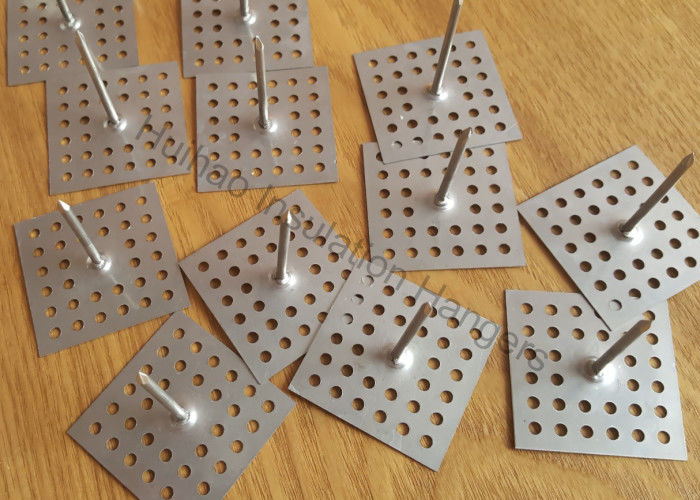

Introduction To Perforated Base Insulation Pins

The Perforated Base Insulation Pins are designed to fix efficiently insulation concrete and any other rough surfaces. It consists of a pin, firmly mounted on a perforated base.

Material: Galvanized Steel (Standard), Available in Stainless Steel & Aluminum as special order

Pin Diameter	Base Plate Size	Insulation Pin Length
12ga (0.106")	2" square	1"
12ga (0.106")	2" square	1-5/8"
12ga (0.106")	2" square	2"
12ga (0.106")	2" square	2-1/2"
12ga (0.106")	2" square	3-1/2"
12ga (0.106")	2" square	4-1/2"
12ga (0.106")	2" square	5-1/2"
12ga (0.106")	2" square	6-1/2"
12ga (0.106")	2" square	8"
12ga (0.106")	2" square	8-1/2"
12ga (0.106")	2" square	9-1/2"
12ga (0.106")	2" square	10-1/2"
12ga (0.106")	2" square	12"

Standard Lengths are listed above
Other lengths available as Special Order
Fasteners are available packed with, or without washers
Other diameters available as Special Order

Package Of The Perforated Base Insulation Pins

Insulation pin length less than 65mm, 1000pcs per carton, 64 cartons per pallets.
Insulation pins length 70mm-120mm, 500pcs per cartons, 64 cartons per pallets.
Insulation pins length 125mm-250mm, 250 pcs per cartons, 64 cartons per pallets.
As your requirement

Related Products: Self Stick Insulation Pins

Self-stick metal insulation fasteners are designed to attach insulation to clean, dry, smooth, non-porous surfaces.

Material: Galvanized Steel (Standard), Available in Stainless Steel & Aluminum as special order

Pin Diameter	Base Plate Size	Insulation Pin Length
12ga (0.106")	2" square w/tape	1"
12ga (0.106")	2" square w/tape	1-5/8"
12ga (0.106")	2" square w/tape	2"
12ga (0.106")	2" square w/tape	2-1/2"
12ga (0.106")	2" square w/tape	3-1/2"
12ga (0.106")	2" square w/tape	4-1/2"
12ga (0.106")	2" square w/tape	5-1/2"
12ga (0.106")	2" square w/tape	6-1/2"
12ga (0.106")	2" square w/tape	8"

Standard Lengths are listed above
Other lengths available as Special Order
Fasteners are available packed with, or without washers
Other diameters available as Special Order
