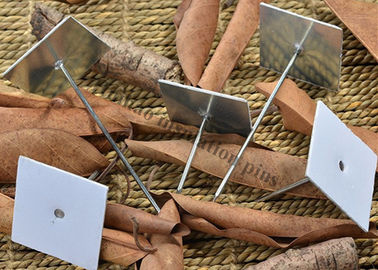

Product Details:
|
| Product Name: | Metal Insulation Hangers | Material: | Galvanized Steel , Stainless Steel |
|---|---|---|---|
| Base Size: | 40MMX40MM , 50MMX50MM , 35MMX35MM | Pin Length: | 38 Mm - 230 Mm In Common |
| Washer Size: | Round , Square , Domn Cup | Pin Diameter: | 2.7 Mm , 3.0 Mm |
| Highlight: | insulation hangers,insulation wall plugs |
||
SW washers are steel washers 30 gauge galvanized and are available in 500 pieces per box. Te steel base is made from 28 gauge metal,
a steel pin and double sided self adhesive tape having high shear strength. The use of this pic prevents corrosion on the street metal which
is caused by the welding fasteners.
1.metal insulation hangers Base Material:Polyethylene foam with aggresive pressure sensitive rubber resin adhesive.
2.Service Temperature : -40 deg C to +70 Deg C
3.Highly Resistant to abrasion, corrosion and moisture.
4.Confirms to European Directive 2000/53 (Lead, Chromium VI, Mercury, Cadmium free)
5.10 Minutes 180 degree Peel Adhesion : 30 N/25mm
6.500 Hour static shear ( Stainless Steel) : 0.8 kg/cm3
1.Self Adhesive Type – Steel nail reinforced and plain base options
2.Self Adhesive Type – Aluminium nail easy to bend and cut
3.Perforated Base Type – Available in both steel and aluminium nail.
| Self Adhesive type steel model No. | Self Adhesive type Aluminum model No. | perforated base type steel model No. | perforated base type aluminum model No. | pin length (mm / inches ) | used for insulation size |
| IF34 | IFA34 | PIF34 | PIFA34 | 0.75" | 0.5" |
| IF114 | IFA134 | PIF114 | PIFA114 | 1.25" | 1.0" |
| IF134 | IFA114 | PIF134 | PIFA134 | 1.75" | 1.5" |
| IF200 | IFA200 | PIF200 | PIFA200 | 2.00" | 1.75" |
| IF250 | IFA250 | PIF250 | PIFA250 | 2.50" | 2.0" |
| IF300 | PIF300 | 3.00" | 3" | ||
| IF80 | PIF80 | 80MM | 3" | ||
| IF400 | PIF400 | 4.0" | 4" | ||
| IF450 | PIF450 | 4.5" | 4" | ||
| IF120 | PIF120 | 120MM | 4" | ||
| IF130 | PIF130 | 130MM | 5" | ||
| IF140 | PIF140 | 140MM | 5" | ||
| IF150 | PIF150 | 150MM | 6" |
If you are one of our loyal clients , we thank you for having reposed your confidence in Aeroduct. If you are looking for a partner to address
your requirements for HVAC accessories, we would be delighted to compete for your business.
1.Best results are obtained when ambient temperature is above 40° F at the time of application.
2.Remove the release paper from the base plate and apply hanger to a suitable flat surface.
3.A firm straight, forward pressure should be used. Do not twist. Due to the quick-tack nature of the adhesive, it is very important that the
4.release paper not be removed until ready to apply the hanger.
5.Insulation may be applied immediately after properly securing the hanger. Hangers should be stored at 75° F and 50% relative humidity.
6.It is important that stock be rotated. Shelf life is estimated at 2 years if stored as recommended
1.if the length less than65mm,1000pcs per cartons, 64 cartons per pallets.
2. if the length less than 120mm, 500pcs per carton, 48 cartons per pallet.
3 others length, we can be according your request
Aeroduct Insulation Fasteners (IF) are an economical and effective solution for your insulation fastening needs. Aeroduct insulation fasteners
are manufactured and designed to meet SMACNA Standards utilizing steel as per ASTM-A 591. It has a 28 Gauge Metal Base. with a size of
50mm x 50mm. Pins are 12 Gauge Zinc Plated and packaging is done with 500 pieces per box with SW washers.
