Product Details:
|
Material: | 65mn / 45 Mn Steel | Certification: | ISO9001:2008,OHSAS18001,CE |
---|---|---|---|
Technology: | Anealing Process | Wire Diameter: | 1--19.05 Mm |
Tensile Strength: | 1200MPA-1800MPA | Type: | Crimped Wire Mesh |
Highlight: | stainless steel filter mesh,self cleaning screen |

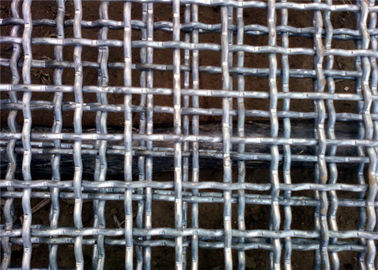

Material of High Tensile Carbon Stone Crusher Self Cleaning Screen Mesh
There are more than 500 steel works in China. We only chose 2 of them as our material suppliers. Except their stable quality (and good qualification we need), they can customize steel wire rods in accordance with correct composition ratios we provide and provide the test report of SGS by the international third party test.
International Standard of High Tensile Carbon Stone Crusher Self Cleaning Screen Mesh
Our woven wire cloth is high durability, precision and impact resistance. 90% of our products are used in international markets because they can be perfectly matched with various kinds of vibrating screens including international brands, such as Wirtgen,AtlasCopco,,Mesto,Terex and other.
High Tensile Stone Crusher Screen Mesh Error:
1)Aperture error:≤3%,which is better than International Standards;
2)Wire diameter error: ±3%;
3) Diagonal error:≤9mm every2m
Wire Gauge (SWG) |
Wire Diameter (mm) |
Mesh/Inch |
Aperture (mm) |
Weight (kg/m²) |
6 |
4.8 |
1 |
20.6 |
11.5 |
8 |
4.05 |
2 |
9 |
16.5 |
10 |
3.2 |
2 |
10 |
10.5 |
12 |
2.6 |
3 |
5.9 |
10.5 |
14 |
2.0 |
3 |
6.5 |
6 |
16 |
1.6 |
4 |
5 |
5.5 |
17 |
1.4 |
5 |
5.1 |
5.0 |
18 |
1.2 |
5 |
4 |
3.6 |
19 |
1.0 |
6 |
3.2 |
3.0 |
21 |
0.8 |
7 |
2.8 |
2.3 |
22 |
0.7 |
8 |
2.5 |
2 |
No |
Grade |
Chemical Composition |
||
C |
Si |
Mn |
||
1 |
45 |
0.42-0.50 |
0.17-0.37 |
0.50-0.80 |
2 |
50 |
0.47-0.55 |
||
3 |
55 |
0.52-0.60 |
||
4 |
60 |
0.57-0.65 |
||
5 |
65 |
0.62-0.70 |
||
6 |
70 |
0.67-0.75 |
||
7 |
65Mn |
0.62-0.70 |
0.90-1.20 |
|
8 |
72A |
0.70-0.75 |
0.15-0.35 |
0.30-0.60 |
1.Not bittle
we have adopted an advancedprocess for different steel,processed to achieve the right choice of different materials of Right wire .We conclude a series of hardness and shrinkage with the cross-section to ensure the greatest hardness requirements .
2.Smooth surface suitable tightness
Flat surface and suitable tightness net is base requirement of a woven screen ,which directly affect the life of mine screen ,Griddle screen machines in the highfrequency vibrations make the wires loose due to the friction themselves , damaged in advance .
3.Precision surface mesh , Aperture founder
The precise screen mesh will affect screening accuracy , surface founder screen mesh will be easy installation , improving production efficiency . Our plant produces knitting mesh surface smooth , precise mesh (Aperture deviation less than +-3%) , screen cloth surface founder (within 2.5 degrees latitude and longitude degrees vertically) .
Packing & Delivery
Packaging Details
Each specification on one plywood pallet or iron pallet and Product surface is processed with anticorrosive paint or as your requirement
Delivery Time - Within 15-20 days after received the deposit
