GI / SS Round Self Locking Washers For Insulation Pins and locking Anchors

Large Image : GI / SS Round Self Locking Washers For Insulation Pins and locking Anchors

Product Details:

Place of Origin:	China
Brand Name:	Huihao
Certification:	ISO9001-2015
Model Number:	round self locking washers

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Packaging Details:	PP bags + paper carton +wood pallet
Delivery Time:	15 days after payment
Payment Terms:	L/C,T/T,Western Union,Paypal
Supply Ability:	500,000 pcs per 10 days

Contact Now

GI / SS Round Self Locking Washers For Insulation Pins and locking Anchors

Description

Material:	Galvanized Steel Or Stainless Steel Or Aluminum	Size:	1" Or 1-3/16" Or 1-1/2" Or 2"
Thickness:	0.4-1MM	Product Name:	Self Locking Washer
Application:	For Fixing Self Adhesive Insulation Pins	Center Hole:	For 14ga,12ga,10ga
Highlight:	insulation fixing washer , self locking dome caps

GI / SS Round Self Locking Washers For Insulation Pins and Locking Anchors

Material	Galvanized Steel Or Stainless Steel Or Aluminum
Size	1" or 1-3/16" or 1-1/2" or 2"
Thickness	0.4-1MM
Product Name	Self Locking Washer
Application	For fixing Self Adhesive Insulation Pins
Center Hole	For 14ga, 12ga, 10ga

What is Round Types Self Locking Washers

Round self-locking washer is also named speed clip and self metal clips. It is made primarily in Mild Steel, with Standard Stainless available by CNC machines. This insulation washer mounts on many types of insulation fasteners/insulation pins/lacing anchor/weld nails for capturing and holding insulation material in place.

The gauge of the pin, or diameter, should match the fastener to be affixed, or "locked". The thickness of the self locking washer is decided by the material hardness, common thickness is 0.4mm-1mm. If it is too thick, the washer will lose its self-locking function.

Specifications of Round Self Locking Washer

Diameter	25mm	28mm	30mm	38mm	50mm
Nominal Thickness	0.4mm	0.4mm	0.4-0.5mm	0.4-0.5mm	0.5-1mm
Standard Material	GI/SS	GI/SS	GI/SS	GI/SS	GI/SS

Huihao company accepts special orders.

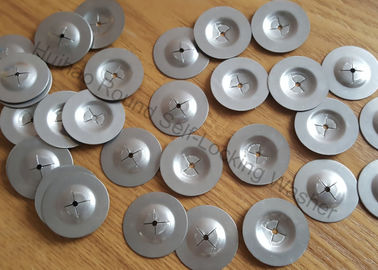

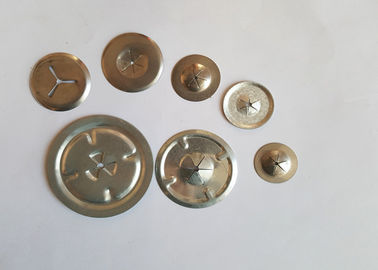

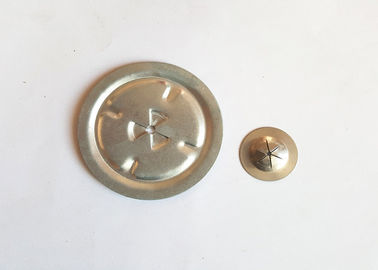

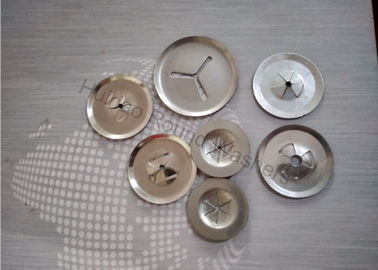

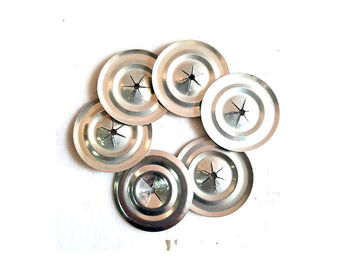

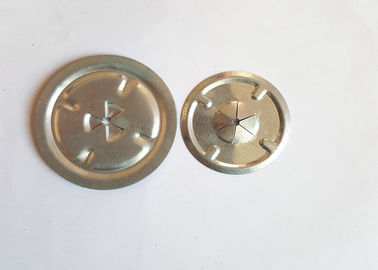

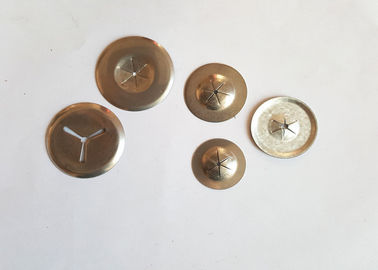

Images of the Round Self Locking Washer

Applications of Round Self Locking Washer

Round Self Locking washers are used with Capacitor Discharge (CD) pins and Insulation Hangers. Washers are available in 10G and 12G and 14 GA Inner diameter. Self-Locking round washers are a great fastener to keep insulation in place and offer a profile that minimizes tears in insulation facing.

Huihao Company Advantages

CUSTOMIZATION

Step 1: Send samples and supply design drawing
Step 2: Technical confirmation, material, standard, specification, surface treatment and technical requirements
Step 3: Quotation is according to specification requirements
Step 4: Approve sample and place order to our company
Step 5: Mass production, arrange production schedule according to PI/PO after received advance payment

SENIOR EXPERIENCE

12 years' production experience in the insulation nails field

We guarantee good quality of raw material for sample
We master the annealing technology of different metal pins under temperature to guarantee pins easy bent without broken
We concern product's firmness in detailed design

VARIOUS TYPES

Different kinds of production moulds, in accordance with different countries' usage standard

We have make different mould for production different insulation fasteners
We have supplied to more than 300 customers and other projects

COMPETITIVE COST

Factory direct sale, save cost
We have long term cooperated express delivery company and logistic company to delivery goods lowest fee

TIMELY DELIVERY

We have stock for common types of insulation fasteners and washers. And we have CNC machines production lines, can delivery as soon as possible if confirm well the type and quantity

QUALITY ASSURANCE

ISO9001-2008
Supply official material certification, SGS test report

For pricing inquiries or sample requests, please contact us at david@huihaomesh.com
