Product Details:
|
| Material: | Stainless Steel 304 | Dia: | 7/8" / 22mm |
|---|---|---|---|
| Suit For: | 14GA Pins,12GA,10GA, REQUEST | Name: | Dome Cap Washers |
| Thickness: | 0.4mm | Application: | Cd Weld Pins Washer |
| Small Order: | Available | Sample: | Support |
| Highlight: | insulation fixing washer,self locking dome caps |
||
Specification Of The Dome Cap Washers
Material: Stainless Steel AISI 304 With Stainless Steel Insert
| B | A | C |
| 14 Ga (2mm) | 7/8" (22mm) | 9/32" (7.2mm) |
| 12 Ga (2.7mm) | 7/8" (22mm) | 9/32" (7.2mm) |
| 10 Ga | 7/8" (22mm) | 9/32" (7.2mm) |
| 3mm | 7/8" (22mm) | 9/32" (7.2mm) |
features of dome cap washers

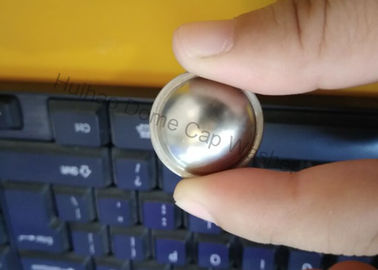

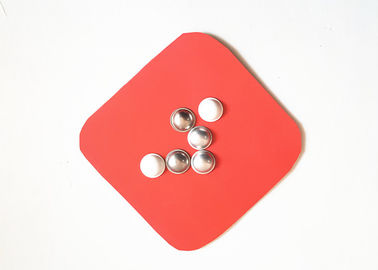

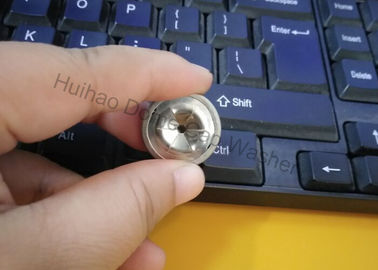

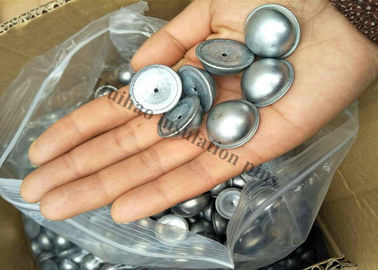

Detailed Pictures Of The Dome Cap Washers

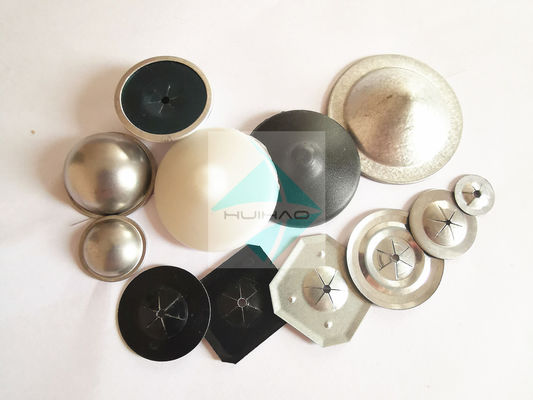

Related Products
Round Self Locking Washers
Material: stainless steel or galvanized steel or aluminum
Size: 1" or 1-3/16" or 1-1/2" or 2"
Thickness: 28ga (0.4mm)
Self-locking washers are designed to be used with weld pins, insulation-hangers, lacing anchors, etc.
| Diameter: | 1" | 1-3/16″ | 1-1/2” |
| Thickness: | 0.015" | 0.015" | 0.015" |
| Plating: | Galvanized | Galvanized | Galvanized |
| Material: | Mild Steel /SS 304 | Mild Steel /SS 304 | Mild Steel /SS 304 |
| Edge: | Beveled or Flat | Beveled or Flat | Beveled or Flat |
Square Self-Locking Washers
Material: stainless steel or galvanized steel or aluminum
Thickness: 28ga (0.4mm)
Self-locking washers are designed to be used with weld pins, insulation-hangers, lacing anchors, etc.
| Pin Diameter | 2-1/2" | 1-1/2" | 1-1/4" | 1-1/2" |
| 14 Ga (2mm) | square | square | square | round |
| 12 Ga | square | square | square | round |
| 10 Ga | square | square | square | round |
| 3mm | square | square | square |
round |
Stainless Steel Insulation Clips With Plastic Coating
Insulation clips are fixed on the position where there is significant wind-suction-force or if the height is more than 20m or
if the finishing coat is tile etc.
| Material | Stainless steel as standard |
| Colors | White, grey or black |
| d1 | 40mm |
| d2 | 2mm, 2,7mm, 3mm,4mm, 5mm, 6mm |
