Product Details:
|
| Material: | Stainless Steel, Aluminum | Application: | Facades Sunshade Partition Cladding |
|---|---|---|---|
| Product Name: | Architectural Metal Screens | Type: | Weave, Perforated, Laser Cutting, Expaned, Crimped |
| Width: | Less Than 6m | Length: | To Be Your Requirements |
| Weave Wire Mesh: | Wire Diameter:0.2mm-6mm | Punch Type: | Thickness:0.3mm-8mm |
| Laser Cutting Type: | Thickness:3mm-20mm | Surface Treatment: | Spray Paint, Oxidation, Plating Color |
| High Light: | stainless steel mesh screen,woven wire screen mesh |
||
Huihao services
architectural metal screens-stainless steel wire rope mesh
architectiral metal screens is also named decorative wire mesh, cable rope wire mesh and woven wire mesh. it made of stainless steel wire rope
and stainless steel rod. stainless steel 304/316 is common material for architectiral metal screens. others material include copper, brass and aluminum wire.
surface treatments include: powder coated, PDFV and anodic oxidation. common color are gold, white, black, grey and blue.

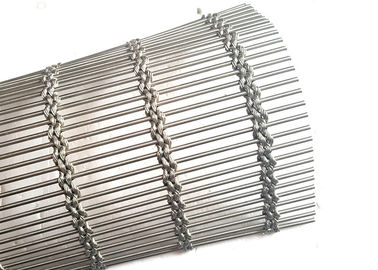

1.Below are three types for one cable rope with stainless steel wire rod as pictures
| molde type | HH-ZJ12 | ||
| Material | Stainless steel | Opening Area | 45.9% |
| cable Diameter | 2.5mm | Thickness | 7mm |
| cable Pitch | 7mm | Surface | clean &free oil |
| rod Diameter | 2mm | Max Length | 36m |
| rod Pitch | 7mm | Max Wide | 4M |
| Weight | 6.45kgs/suqare meter | Application | Partition Cladding |
| ITEMS | HH-Z13 | ||
| Material | stainless steel | Opening Area | 43.8% |
| cable Diameter | 2.5mm | Thickness | 5mm |
| Cable Pitch | 6.0mm | Surface | free oil |
| rod Diameter | 2.0mm | Max Width | 4m |
| Rod Pitch | 8mm | Max Length | 30m |
| Weight | 9.8kgs/square meter | Application | Facade Sunshade |
|
ITEMS |
HH-ZJ14 |
||
|
Material |
Stainless steel |
Opening Area |
35.4% |
|
cable Diameter |
1.6mm |
Thickness |
3.8mm |
|
cable Pitch |
3.2mm |
Surface |
free oil |
|
rod Diameter |
0.6mm x1.75mm |
Max Length |
30m |
|
rod Pitch |
6mm |
Max Wide |
4m |
|
Weight |
7.3kgs/square meter |
Application |
Interior / Exterior |
2.belows are other common sizes of stainless steel cable rope mesh
| design | open area | cable wire dia. | cable pitch | rod dia. | rod pitch | thickness | weight |
| HHZ-Q1 | 40% | 1x1.8 mm | 4 mm | 1.5 mm | 5.5 mm | 5.1 mm | 7.74kg/m2 |
| HHZ-Q2 | 43% | 1x2.5 mm | 6 mm | 2 mm | 8 mm | 5.5 mm | 7.87kg/m2 |
| HHZ-Q3 | 62% | 2x2.75 mm | 40 mm | 4 mm | 14.5 mm | 9.5 mm | 9.41kg/m2 |
| HHZ-Q4 | 37.20% | 3x0.5 mm | 3.5 mm | 0.5 mm | 1.4 mm | 1.3 mm | 2.4kg/m2 |
| HHZ-Q5 | 71% | 3x1.6 mm | 80 mm | 2.5 mm | 10 mm | 5.7 mm | 4.58kg/m2 |
| HHZ-Q6 | 65% | 3x2 mm | 80 mm | 3 mm | 10 mm | 7 mm | 6.67kg/m2 |
| HHZ-Q7 | 65.90% | 3x2.75 mm | 110 mm | 4 mm | 14.5 mm | 10 mm | 8.5kg/m2 |
| HHZ-Q8 | 67% | 3x3 mm | 110 mm | 4 mm | 14.2 mm | 10 mm | 8.6kg/m2 |
| HHZ-Q9 | 44.30% | 4x0.75 mm | 26.4 mm | 1.5 mm | 3 mm | 3 mm | 5.2kg/m2 |
| HHZ-Q10 | 62% | 4x1 mm | 36 mm | 2 mm | 6.6 mm | 4 mm | 4.55kg/m2 |
| HHZ-Q11 | 40% | 4x2 mm | 50 mm | 3 mm | 6 mm | 7mm | 11.2kg/m2 |
| HHZ-Q12 | 42% | 4x2 mm | 50 mm | 3 mm | 6 mm | 7 mm |
11.8kg/m2 |
architectural metal screens application
|
For exterior application, it is an ideal alternative for building facade,column cladding, wall coverings,cable shielding mesh, sunshade screen |
|
For interior, it can be used as room dividers, decorative curtains and ceiling curtains,elevator panel,partition walls |
