Product Details:
|
Name: | Self Cleaning Screens Mesh | Material: | 65 Mn Steel, Staiinless Steel,pu |
---|---|---|---|
Wire Diameter: | 0.5mm-10mm | Technique: | Weave |
Application: | Stone, Coal Industry, Quarry Cursher Stone Machine | Hole Diameter: | 1.5mm-100mm |
Highlight: | stainless steel filter mesh,self cleaning screen |

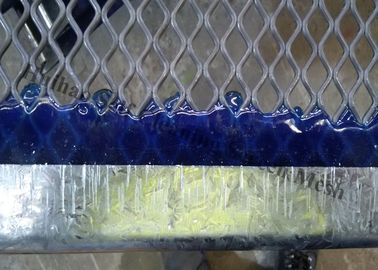

Custom Crimped Steel Self Cleaning Screen Mesh With Polyurethane Cross Bands
Self cleaning screen mesh is made of high carbon steel wire, spring steel wire and stainless steel wire. It can offer effective solutions to difficult sizing and aggregate separation conditions, such as the blinding and plugging.
Self cleaning screen mesh can separating and screening the wet and moist materials. It is widely used in the separating materials in the mining, quarry and other industries.
some parts of specification as reference, at same time we Can be according your requirements to custom.
aperture (mm)
|
wire diameter(mm)
|
kg/m2
|
screening area%
|
1.50
|
1.20-1.60
|
4.7-6.8
|
31-38
|
2.00
|
1.20-1.60
|
4.3-6.2
|
37-43
|
3.00
|
1.20-2.00
|
3.6-7.8
|
40-52
|
4.00
|
1.20-2.00
|
3.1-6.9
|
45-58
|
5.00
|
1.50-2.80
|
2.7-11
|
41-65
|
6.00
|
1.50-2.80
|
3.4-9
|
48-64
|
8.00
|
2.00-3.15
|
4.5-9.1
|
53-63
|
10.00
|
2.00-3.15
|
3.7-8.0
|
59-69
|
14.00
|
2.00-4.00
|
3.0-9.6
|
61-76
|
19.00
|
2.80-4.00
|
4.2-7.9
|
68-76
|
22.00
|
2.50-4.00
|
3.0-7.1
|
72-80
|
25.00
|
4.00-5.00
|
6.4-9.3
|
70-74
|
26.00
|
4.00-5.00
|
6.10-9.20
|
70-75
|
28.00
|
3.00-4.00
|
3.5-5.8
|
77-82
|
30.00
|
3.00-4.00
|
3.3-5.6
|
78-83
|
32.00
|
4.00
|
5.30
|
79
|
35.00
|
4.00-5.00
|
4.8-7.3
|
77-81
|
40.00
|
4.00
|
4.00
|
84
|
Wire Ripple Anti-Clogging Wire Mesh Screens
Wire ripple anti-clogging wire mesh screen can be furnished with any style of edge preparation or hook strip, ready for installation into any type equipment.
Wire ripple anti-clogging wire mesh screen can be used for dewatering, washing, sizing, scalping, and more. Also widely used on shale shakers for reclaiming drilling mud.
Specifications
1. Wire diameter: 0.71mm-12.5mm.
2. Aperture: 1mm-100mm.
3. Wire diameter tolerance <0.03mm.
4. Aperture tolerance ±3%.
5. Screen length and width tolerance is ±5mm.
6. Screen diagonal tolerance is controlled within 1.5mm every 300” length.
7. Following is some common styles, others also could be custom-made.
slotted crimped self cleaning screen
some parts of specification as reference, at same time we wab be according your requirements to custom.
aperture (mm)
|
wire diameter(mm)
|
kg/m2
|
screening area%
|
1.50x50.00
|
1.25
|
4.12
|
53
|
2.00x50.00
|
1.50
|
4.59
|
56
|
2.00x50.00
|
1.60
|
5.33
|
54
|
2.50x50.00
|
1.2
|
3.01
|
66
|
2.50x50.00
|
1.50
|
4.39
|
61
|
3.00x50.00
|
1.60
|
3.95
|
63
|
3.50x50.00
|
1.50
|
3.63
|
68
|
4.00x50.00
|
2.00
|
5.58
|
64
|
5.00x50.00
|
2.00
|
4.94
|
69
|
5.00x60.00
|
2.50
|
6.81
|
64
|
6.00x60.00
|
2.80
|
7.5
|
65
|
7.00x60.00
|
3.15
|
8.45
|
65
|
8.00x60.00
|
3.15
|
7.85
|
68
|
9.00x60.00
|
3.15
|
7.33
|
70
|
10.00x60.00
|
4.00
|
10.55
|
67
|
12.00x60.00
|
4.00
|
9.50
|
70
|
20.00x100.00
|
8.00
|
18.77
|
66
|
22.00x80.00
|
8.00
|
18.46
|
67
|
those which secure the mesh on the small side of the rectangle aperture are type A crimps and those on the long side of the rectangle aperture have a combination of straight and crimped areas.
the slot shape aperture has good self-cleaning effect,making it a good choice for screening humid and sticky materials
