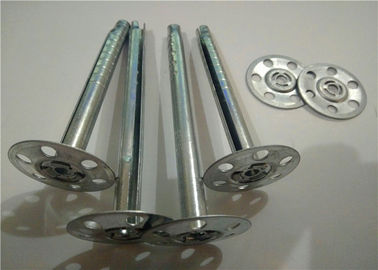

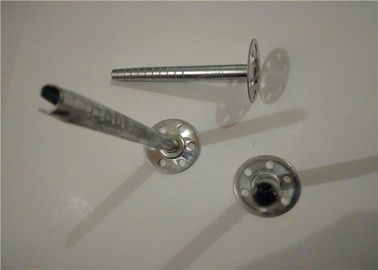

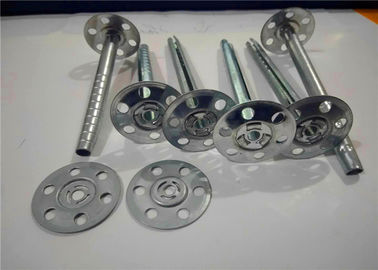

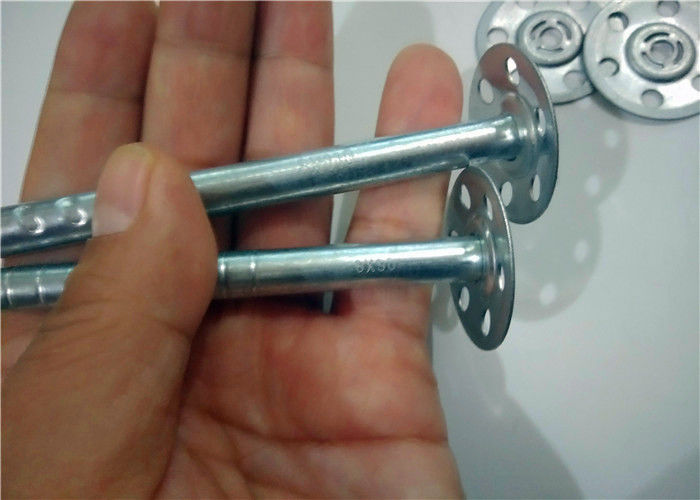

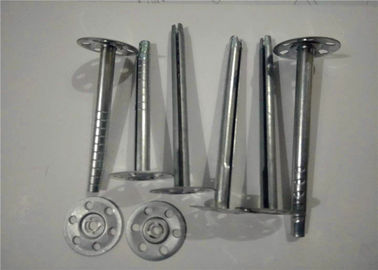

Stainless Steel M8 Insulation Anchor Pin with 30mm Washer

Large Image : Stainless Steel M8 Insulation Anchor Pin with 30mm Washer

Product Details:

Place of Origin:	CHINA
Brand Name:	HUIHAO
Certification:	ISO9001
Model Number:	Rock wool metal plug

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Packaging Details:	20 piece ,50piece ,200 piece in one carton on pallet ,15 days after confirm the order
Delivery Time:	15 days
Payment Terms:	L/C,T/T,Western Union,paypal
Supply Ability:	300000 pcs per month

Contact Now

Stainless Steel M8 Insulation Anchor Pin with 30mm Washer

Description

Product Name:	Rock Wool Metal Plug	Material:	Stainless Steel ,galvanized
Tube OD:	8mm	Mateiral Thickness:	0.7mm
Length:	50mm-230mm	Base Size:	30mm
Custom:	Support
Highlight:	m8 metal insulation fixings , 110mm metal insulation fixings , galvanized metal insulation fixings

M8 X 110mm Metal Insulation Fixings With Round Washer

Product Specifications

Attribute	Value
Product name	rock wool metal plug
Material	stainless steel, galvanized
Tube OD	8mm
Material thickness	0.7mm
Length	50mm-230mm
Base size	30mm
Custom	Support

Product Description

M8 X110 mm metal insulation fixings with round washer, designed for secure anchoring in various construction applications.

Key Features

Material: Stainless steel/galvanized steel
Nail diameter: 8mm
Nail length options: 50mm, 60mm, 80mm, 90mm, 110mm, 140mm, 170mm, 230mm, 300mm
Plate size: 30mm/35mm
Ideal for high wind-suction areas or heights above 20m
Suitable for tile finishing coats

Technical Specifications

Pin	Pin Diameter	Pin Length	Plate Size	Plate Thickness	Packaging (carton)
8*50	8mm	50mm	30/35mm	0.7mm	250pcs
8*60	8mm	60mm	30/35mm	0.7mm	250pcs
8*90	8mm	90mm	30/35mm	0.7mm	250pcs
8*110	8mm	110mm	30/35mm	0.7mm	250pcs
8*140	8mm	140mm	30/35mm	0.7mm	250pcs
8*170	8mm	170mm	30/35mm	0.7mm	250pcs
8*230	8mm	230mm	30/35mm	0.7mm	250pcs
8*300	8mm	300mm	30/35mm	0.7mm	250pcs

Product Advantages

Highly versatile for various construction materials
Can be fixed with hammer or SDS drill adapter
Anchors into concrete/masonry with minimal pilot hole
Direct installation into lightweight blocks without pre-drilling
Quick hammerset installation saves time and labor
No additional screws or nails required
Suitable for ceiling soffits
Fire-resistant (DIN 4102 class A1 certified)
Fire protection report available for galvanized version (hef > 50mm)

Recommended Usage

70mm fixings for 20-40mm insulation panels
90mm fixings for 40-60mm insulation boards
110mm anchors for 60-80mm insulation slabs
130mm anchors for 80-100mm insulation slabs
150mm fixings for 100-120mm insulation slabs
180mm fixings for 120-150mm insulation boards

Compatible Materials

Ideal for fire-resistant soft or pressure-resistant insulating materials including mineral/glass wool, wood wool, foam glass tiles, polystyrene boards, coir matting, concrete, hollow blocks, lightweight concrete, vertically perforated brick, sand-lime brick, natural stone, aerated concrete, and solid brick.
