Stainless Steel Insulation Anchor For Securing Removable Blankets

Large Image : Stainless Steel Insulation Anchor For Securing Removable Blankets

Product Details:

Place of Origin:	China
Brand Name:	huihaokasite
Certification:	ISO9001-2015
Model Number:	Lacing hook washer

Payment & Shipping Terms:

Minimum Order Quantity:	30000sets
Price:	USD0.1/SET
Packaging Details:	500 sets per bag, 4 bags per cartons
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000000 psc per month

Contact Now

Stainless Steel Insulation Anchor For Securing Removable Blankets

Description

Material:	SS, MS, G.I S	Washer Size:	25mm X1mm
Hook Size:	5mmx11mm	Application:	Fabric Expansion Joints,Mat Insulation
Key Word:	Lacing Hook System	Small Order:	Available
Highlight:	rockwool insulation pins , duct insulation pins

Stainless Steel Insulation Anchor For Securing Removable Blankets

Product Attributes

Attribute	Value
material	SS, MS, G.I S
Washer size	25mm x1mm
hook size	5mmx11mm
application	Fabric Expansion Joints, Mat Insulation
key word	lacing Hook system
small order	available

Specification of Mat Insulation Lacing Hook Washers

material	width of lacing hook washer	hook size	thickness	hole size (double)
stainless steel	22mm, 25mm	5mmx11mm	1mm	5mm
galvanized steel	22mm, 25mm	5mmx11mm	1mm	5mm

We accept OEM orders, and supply pattern design, surface treatment and project advices
Suitable installation parts include: lacing anchor pins, lacing washer, lacing wire and lacing rings (O type and D types)
Good hold power, go through with non-return

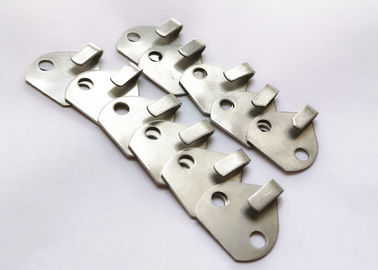

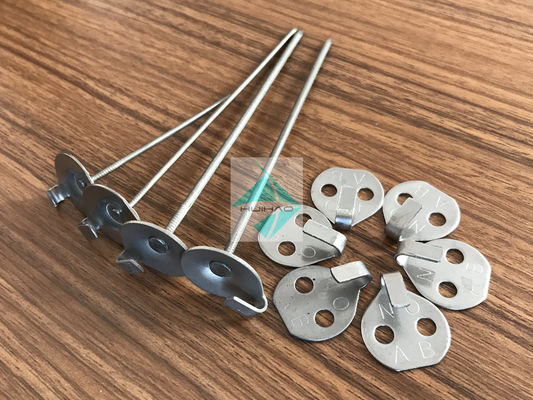

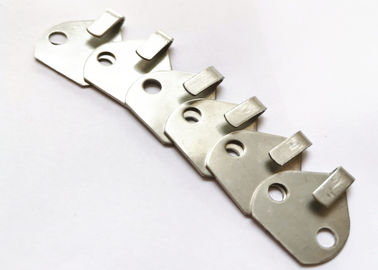

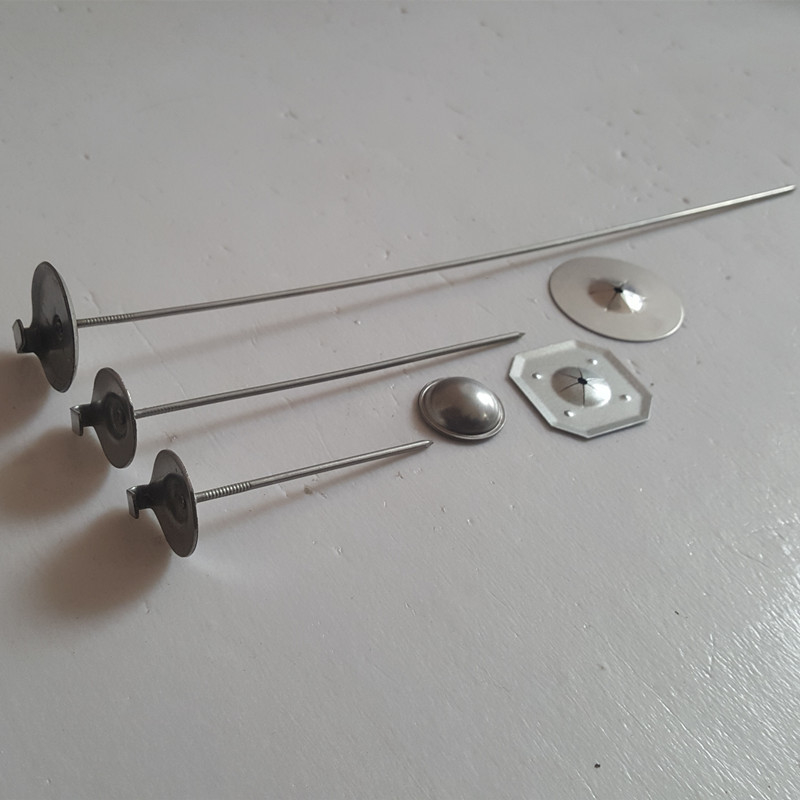

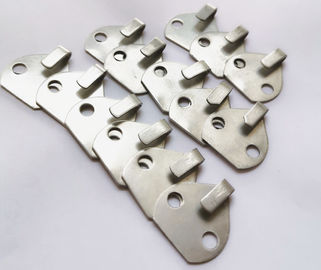

Product Images

Installation Guide

Mat Insulation Metal Lacing Hook Washers / Lacing washer system are used for securing and tying removable insulation blankets, work with Lacing washers to fasten the insulation. Install the lacing hook with wire, secure with lacing washer, use lacing wire to fasten the insulation through the lacing hooks.

Applications

Exhaust insulation blankets

Fabric expansion joints

Temptec exhaust blankets

Mat insulation

Thermal insulation covers

Cooling insulation covers

Heat insulation covers

Freeze protection cover

Removable insulation covers

Tank insulation cover

Flange leak insulation covers

Offshore production cover

Heat-shield insulation blankets

Removable insulation jacket
