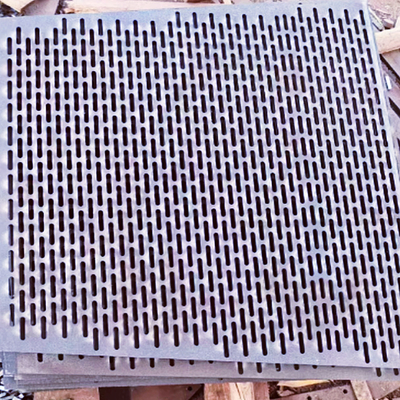

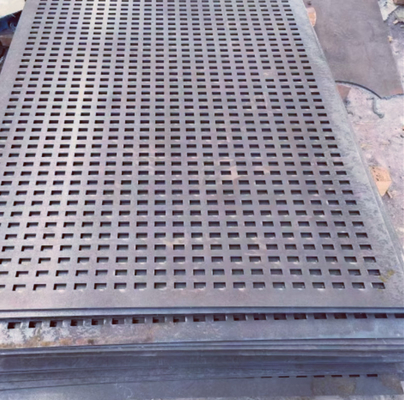

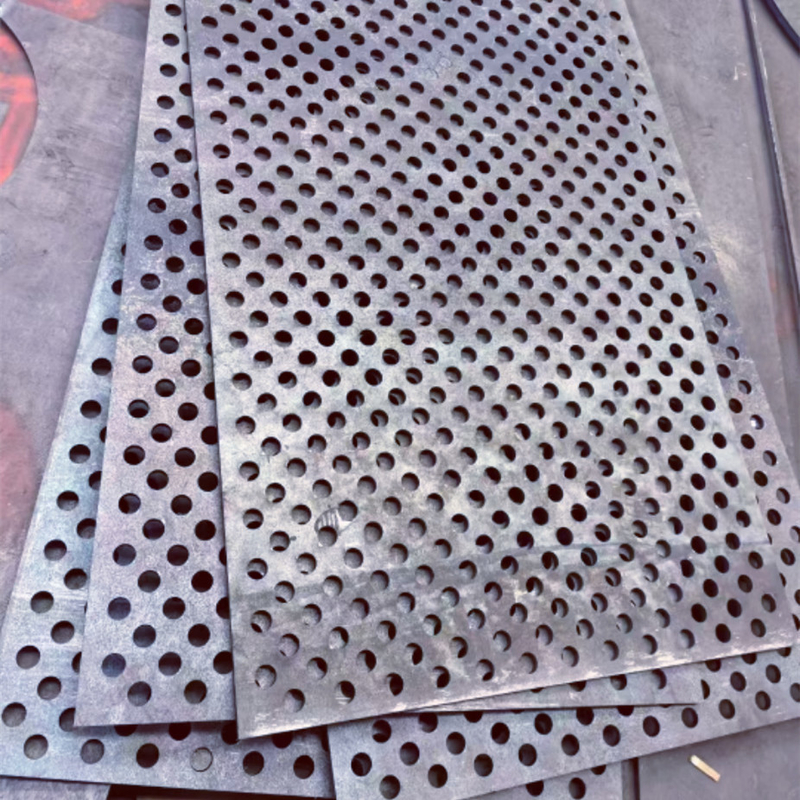

NM500 Hardox Plate Screen Mesh For Asphalt Plant

Large Image : NM500 Hardox Plate Screen Mesh For Asphalt Plant

Product Details:

Place of Origin:	China
Brand Name:	HUIHAOKASITE
Certification:	ISO9001-2015
Model Number:	Hardox Plate Screen Mesh

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	USD196/PC
Packaging Details:	pallets
Delivery Time:	8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000pcs per 15 days

Contact Now

NM500 Hardox Plate Screen Mesh For Asphalt Plant

Description

Material:

NM400/NM500

Wire Diameter:

8mm

Aperture:

10MM-100MM

Width:

Less Than 2400mm

Highlight:

crimped wire mesh

self cleaning screen

NM500 Hardox Plate Screen Mesh For Asphalt Plant

Product Specifications

Attribute	Value
Material	NM400/NM500
Wire Diameter	8mm
Aperture	10MM-100MM
Width	Less than 2400mm

Material Composition

NM500 wear-resistant plate is a high-strength wear-resistant steel plate. The "NM" in its name stands for the pinyin initials of "wear-resistant", while "500" represents a Brinell hardness value of approximately 500HBW. This material adheres to the enterprise standard Q/XGJ166-2009.

C	Si	Mn	P	S	Cr	Mo	Ni	Bt	CEV
≤0.38	≤0.70	≤1.70	≤0.020	≤0.010	≤1.20	≤0.65	≤1.00	0.005-0.006	0.65

Detailed Specifications

Thickness: 8mm
Aperture: 60mm
Size: 1470MM X 1000MM
Set: 5 pcs per set
Hardness: 500 Brinell hardness number (HB value)
Grade Classification: NM500A, NM500B
Heat Treatment: Tempering (quenching + tempering)

Common Applications

Primarily used in the manufacture of wear-resistant components in fields such as:

Construction machinery
Mining machinery
Metallurgical equipment
Power generation
Offshore engineering

Specific applications include excavator bucket plates, loaders, bulldozer bucket plates, cutting edges, side cutting edges, blades, and crusher liners.
