Module Deck Media Rubber Vibrating Screen Mesh for Ore Application Anti-clogging

Large Image : Module Deck Media Rubber Vibrating Screen Mesh for Ore Application Anti-clogging

Product Details:

Place of Origin:	China
Brand Name:	HUIHAOKST
Certification:	ISO9001-2015
Model Number:	Rubber Vibrating Screen Sieve Plate

Payment & Shipping Terms:

Minimum Order Quantity:	20 pieces
Price:	USD20

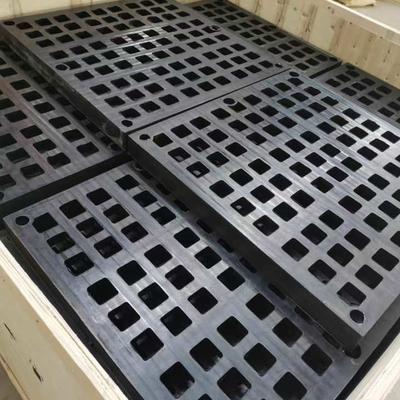

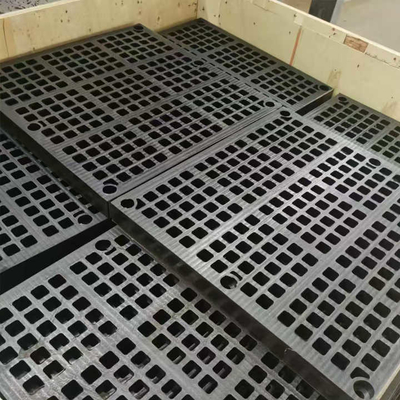

Packaging Details:	pallets
Delivery Time:	8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000pcs per 20 days

Contact Now

Module Deck Media Rubber Vibrating Screen Mesh for Ore Application Anti-clogging

Description

Material:	Rubber	Thickness:	20, 25 & 35mm
Standard Size:	305mmx305mm	Aperture Type:	Square Round Slotted
Small Order:	Support
Highlight:	stainless steel filter mesh , self cleaning screen

Module Deck Media Rubber Vibrating Screen Mesh for Ore Application Anti-clogging

Product Specifications

Attribute	Value
Material	Rubber
Thickness	20, 25 & 35mm
Standard Size	305mm × 305mm
Aperture Type	Square, Round, Slotted
Small Order	Supported

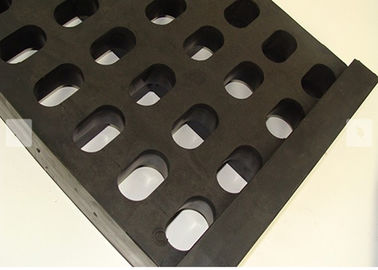

Module Deck Media Rubber Vibrating Screen Sieve Plate

Our Module Deck Media Rubber Vibrating Screen Sieve Plate offers superior performance with these advantages:

Fits most manufacturers' screens
Highly flexible - reduces pegging & blinding
Highly flexible - improves stratification
Reduces noise pollution
Suitable for a wide variety of applications

Ideal for high frequency screens with longitudinal support bars, these sieve plates are effective in primary, secondary, and tertiary screening applications as well as rotary trommel screens.

Hook Type Specifications

Hook Type	Suitable For
Light Duty	3-10mm thickness
Standard Duty	15-35mm thickness
Standard Recessed	35mm, 70mm Apt & below
Heavy Duty Recessed	35mm, 70mm Apt & above
End Tensioned	20-40mm thickness
Heavy Duty - non std hook	25 & 35mm thickness

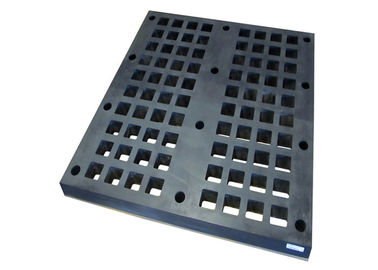

Standard Square Hole Specifications

Size of aperture W	Overall height BH	Height of the screening area SF	Effective open screening area %
7	30	11	27.7
8	30	10	29
9	30	18	24
10	30	12	29
11	30	16	27
12	30	17	33
13	30	17	28
14	30	19	25
15	30	19	26
16	30	17	27
18	30	20	34
18	40	24	24
19	30	19	37
20	30	20	30
22	30	20	36
24	30	20	32
25	30	22	26
27	30	21	35
30	30	19	27
32	40	30	27
34	40	30	25
35	40	30	22
36	40	40	24
38	30	20	30
40	40	31	29
42	40	31	33
45	35	30	37
50	50	30	30
55	40	40	34
60	40	40	35
63	40	40	30
65	40	40	25
65	50	50	27
67	38	38	35
70	40	40	29
80	40	40	34

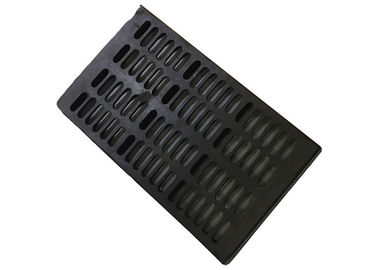

Standard Aperture Sizes - Oblong, Staggered Mesh

Size of aperture W1	Size of aperture W2	Overall height BH	Height of the screening area SF	Width of the screen	Length of the screen	Effective open screening area %
2.2	11.5	30	10	300	1000	21.7
2.5	16	30	10	300	1000	24.6
3	16	30	10	300	1000	18.7
4	20	30	10	300	1000	23

Product Features

✔ Rigid Grid Design:

With a highly wear-resistant rubber formula, the service life of the mine screening can reach 6 to 12 months (metal screens usually last for 2 to 3 months)
Ceramic particles can be inlaid on the surface to further enhance wear resistance (suitable for high-wear scenarios such as iron ore)

✔ Anti-clogging holes & self-cleaning:

The elastic surface of rubber reduces material adhesion and is especially suitable for wet and sticky materials (such as clay and coal slime)
The bouncing screening effect is better, and the screening efficiency is increased by 20% to 30%

✔ Noise reduction and shock absorption:

Compared with metal screens, it can reduce the operating noise of the equipment by more than 15dB and improve the working environment
Reduce vibration transmission, protect the structure of the screen machine, and extend the service life of the equipment
