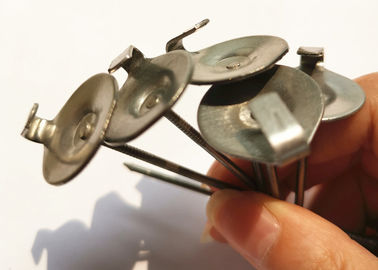

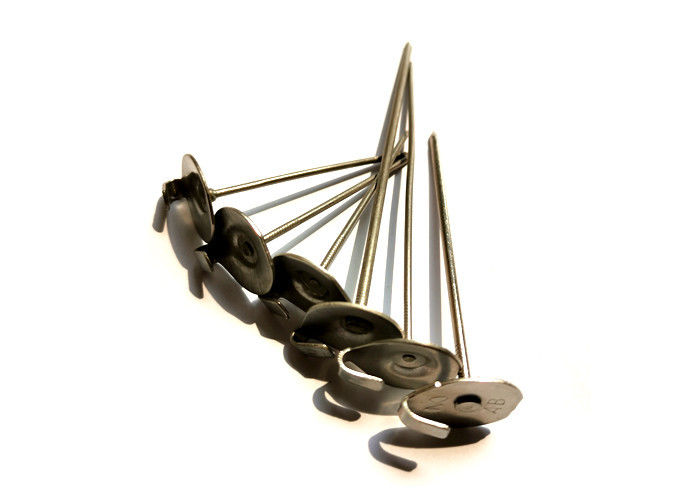

Fixing Part 7/8" Insulation Anchor Pins For Removable Steam Blanket

Large Image : Fixing Part 7/8" Insulation Anchor Pins For Removable Steam Blanket

Product Details:

Place of Origin:	China
Brand Name:	Huihaokasite
Certification:	ISO9001-2015
Model Number:	insulation anchor pins

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	USD0.12/PC
Packaging Details:	paper carton + wood pallet
Delivery Time:	15 days after the payment
Payment Terms:	L/C,T/T,Western Union,Paypal
Supply Ability:	500000 pcs per 15 days

Contact Now

Fixing Part 7/8" Insulation Anchor Pins For Removable Steam Blanket

Description

Material:	Galvanized Steel, Ss, Ms	Head:	7/8" As Standard
Spindle Dia:	12ga Or 14ga As Standard	Length:	2-1/2" Or 4-1/2" As Standard
Head Thickness:	1mm	Application:	Fire Proofing Passive
Highlight:	duct insulation pins , insulation anchors

Fixing Part 7/8" Insulation Anchor Pins For Removable Steam Blanket

Product Specifications

Attribute	Value
Material	Galvanized steel, stainless steel, mild steel
Head	7/8" as standard
Spindle Dia	12ga or 14ga as standard
Length	2-1/2" or 4-1/2" as standard
Head thickness	1mm
Application	Fire Proofing Passive

Product Description

Accept customization ♦ Small order available ♦ Sample available ♦ Accessories support ♦ Door to door service

Why Choose Huihao Hardware?

We provide metal stamping service, CNC machining service, laser cutting service and welding service
Years of production experience with complete mold solutions
Advanced production equipment ensuring product quality
Timely freight arrangement with door-to-door service
Sample service available (standard specifications free, customized samples with fee)
Customized packaging options

Detailed Specifications

Type	Head Size	Hook Length	Head Thickness	Pin Diameter	Pin Length
1	22mm	5mm x 11mm	1mm	2.2mm, 2.7mm, 3mm	25mm-140mm
2	11mm x 24mm	5mm x 11mm	1mm	2.2mm, 2.7mm, 3.0mm	25mm-140mm
3	30mm	5mm x 15mm	1mm	2.2mm, 2.7mm, 3.0mm	63mm-250mm

Materials: Stainless steel, galvanized steel and mild steel

Fixing parts: Self-locking washers, speed clips and dome cap washers (or custom as requested)

Installation Guide

Prepare the insulation blanket or removable cover
Press the lacing anchor through the insulation
Press the self locking washer into the pin to fasten the insulation
Bend over or clip off the pin
Install the insulation blanket or removable cover
Lace the hook by lacing tie to fasten the insulation

Product Images

Key Features

Sharp nail tip reduces penetration resistance
Made of annealed material for easy bending
Fully automated production with accurate dimensions
Firm nail seat that doesn't fall off
Aging resistance and high heat tolerance
Resistant to sudden temperature changes
Simple construction process

Applications

Stainless steel material lacing anchors are widely used for fixing:

Exhaust insulation blankets
Fabric expansion joints
Temptec exhaust blankets
Mat insulation
Thermal insulation covers
Cooling insulation covers
Heat insulation covers

Freeze protection cover
Removable insulation covers
Tank insulation cover
Flange leak insulation covers
Offshore production cover
Heat-shield insulation blankets
Removable insulation jacket
