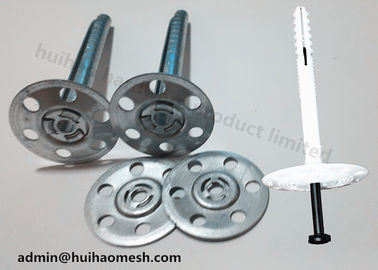

External Wall Metal Insulation Fixings Fixing Rock wool

Large Image : External Wall Metal Insulation Fixings Fixing Rock wool

Product Details:

Place of Origin:	China
Brand Name:	HUIHAOkasite
Certification:	ISO
Model Number:	External Wall Insulation Fixings

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	USD0.1
Packaging Details:	20piece,50piece or 200 piece in one carton box ,then pallet,Within 15 days after confirm the order
Delivery Time:	7 work days
Payment Terms:	L/C,T/T,Western Union,paypal
Supply Ability:	1000tons per year

Contact Now

External Wall Metal Insulation Fixings Fixing Rock wool

Description

Material:	Zinc Plated AISI 1008 Steel Austenitic 304 Stainless Steel	Diameter Of Head:	35mm
Diameter Of Shank:	7mm	Typical Pull Through:	12.5mm Plasterboard 340N ; 9.5mm Plasterboard 255N
Embedment Depth:	Aircrete 50-75mm; Brick/Block 40-60mm; Softwood 35-50mm	Length:	65mm, 85mm,105mm, 125mm,145mm
Highlight:	rockwool insulation pins , insulation anchors

External Wall Metal Insulation Fixings for Rock Wool

Product Specifications

Attribute	Value
Material	Zinc Plated AISI 1008 Steel Austenitic 304 Stainless Steel
Diameter of Head	35mm
Diameter of Shank	7mm
Typical Pull Through	12.5mm Plasterboard 340N; 9.5mm Plasterboard 255N
Embedment Depth	Aircrete 50-75mm; Brick/Block 40-60mm; Softwood 35-50mm
Length	65mm, 85mm, 105mm, 125mm, 145mm

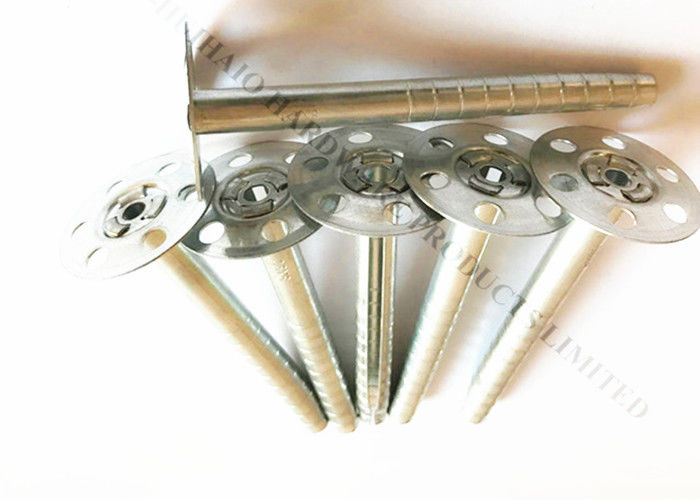

TYPE A - Rock Wool Galvanized Steel Insulation Fixing

General Description: Metal Insulation Fixings for fixing insulation boards.

Material: Pre-Galvanized Steel, available with Stainless Steel

Finish: Galvanized

Technical Data

Size	Length [mm]	Diameter of tube [mm]	Base size [mm]	Thickness [mm]	Packaging [Pieces]	Weight [kg/mpc]
8 × 50	50	8	35	0.7	50	10.2
8 × 60	60	8	35	0.7	50	11.2
8 × 80	80	8	35	0.7	50	13.7
8 × 90	90	8	35	0.7	50	14.8
8 × 110	110	8	35	0.7	50	17.2
8 × 140	140	8	35	0.7	50	20.8
8 × 170	170	8	35	0.7	50	24.4
8 × 200	200	8	35	0.7	50	28
8 × 230	230	8	35	0.7	50	31.8
8 × 250	250	8	35	0.7	50	33.4
8 × 300	300	8	35	0.7	50	40

Applications

To fix fire-resistant soft or pressure-resistant insulating materials, such as:

Mineral / glass wool
Light building boards made of wood wool
Foam glass tiles

Also suitable for:

Polystyrene boards
Coir matting

Building materials:

Concrete
Hollow blocks made from lightweight concrete
Vertically perforated brick
Perforated sand-lime brick
Solid sand-lime brick
Natural stone with dense structure
Aerated concrete
Solid brick made from lightweight concrete
Solid brick

Available Product Variants

Product Variant	Drill hole diameter d0 [mm]	Anchor length l [mm]	Min. drill hole depth h1 [mm]	Usable length fix [mm]	Effect. anchorage depth hef [mm]
HUIHAO40	8	80	50	10 - 40	40
HUIHAO50	8	110	50	40 - 70	40
HUIHAO100	8	140	50	70 - 100	40
HUIHAO130	8	170	50	100 - 130	40
HUIHAO160	8	200	50	130 - 160	40
HUIHAO210	8	250	50	170 - 210	40
HUIHAO260	8	300	50	220 - 260	40

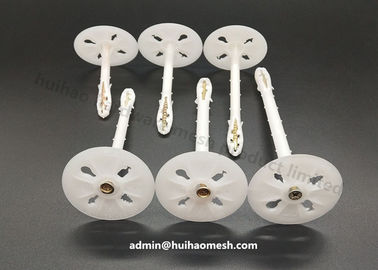

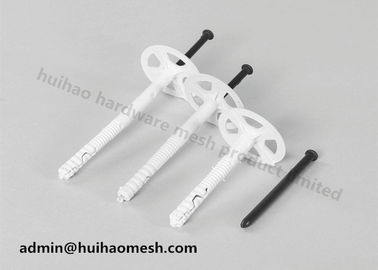

TYPE B - Plastic/Nylon External Wall Insulation Fixings

Mechanical insulation anchor with plastic plug and glass fibre drive pin. Suitable for anchoring polystyrene and rigid foam insulation board to concrete, bricks & blocks.

Anchor hole size [mm]	Anchor length [mm]	Fixture thickness [mm]	Min Embedment Depth [mm]	Minimum Hole Depth [mm]	Head diameter [mm]	Qty per box
10	70	30-40	30	40	50	250
10	90	50-60	30	40	50	250
10	110	70-80	30	40	50	250
10	130	90-100	30	40	50	250
10	150	110-120	30	40	50	250
10	180	130-150	30	40	50	250

Quick Guide

Fire-proof mechanical fixing for plasterboard insulation
Quick & easy to use
Dependable performance
Countersinks without tearing
Dished head retains filler
Highly versatile in a wide range of construction materials
Fixes plasterboard to light-weight block without pre-drill
Fixes to concrete block & brick with tiny pilot hole

Drill a 10mm diameter hole, push anchor through the insulation and embed at least 30mm into base material. Drive in the glass-reinforced pin to provide a mechanical expansion connection. The 50mm diameter head features large perforations to provide a good key for external wall insulation render systems.

Usage Guide

70mm insulation fasteners for 20-40mm insulation panels
90mm insulation fasteners for 40-60mm insulation boards
110mm insulation anchors for 60-80mm insulation slabs
130mm insulation anchors for 80-100mm insulation slabs
150mm insulation fixings for 100-120mm insulation slabs
180mm insulation fixings for 120-150mm insulation boards
