Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool

Large Image : Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool

Product Details:

Place of Origin:	China
Brand Name:	Huihao
Certification:	ISO9001:2008
Model Number:	Insulation anchor pins

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Packaging Details:	1. length less than 65mm, 1000 pcs per carton, 64 cartons per pallet. 2.length less than 120mm, 500pcs per carton, 64 cartons per pallet. 3. others to be your requirements.
Delivery Time:	7 work days
Payment Terms:	L/C,T/T,Western Union,paypal
Supply Ability:	10,0000 pcs per week

Contact Now

Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool

Description

Product Name:	Insulation Fasteners	Material:	Stainless Steel , Galvanized Steel, Aluminum
Application:	Rock Wool Insulation Material	Key Word 1:	Insulation Anchor Pins
Key Word 2:	Insulation Hangers	Key Word 3:	Lacing Anchor
Key Word 4:	Insulation CD Weld Pins	Key Word 5:	Cup Head Weld Pins
Highlight:	rockwool insulation pins , insulation anchors

Ducting Accessories Insulation Anchor Pins With Washer Fit Fixing Rock Wool

Product Attributes

Attribute	Value
Product name	insulation fasteners
Material	stainless steel, galvanized steel, aluminum
Application	rock wool insulation material
Key word 1	insulation anchor pins
key word 2	insulation hangers
key word 3	lacing anchor
Key word 4	insulation CD weld pins
Key word 5	cup head weld pins

Common Sizes and Usages of Insulation Anchor Pins

1 - 5/8": Used for 1-1/2" .75# Fiberglass Duct Wrap
2 - 1/2": Used for 2" Fiberglass Rigid Board / Foam Board
4 - 1/2": Used for 4" Fiberglass Rigid Board / R-13
6 - 1/2": Used for R-19 Fiberglass Batt Insulation
9 - 1/2": Used for R-30 Fiberglass Batt Insulation
12 - 1/2": Used for R-38 Fiberglass Batt Insulation

About Our Insulation Anchor Pins

Huihao is an insulation fasteners/insulation anchors manufacturing company. We produce all kinds of insulation pins and washers. Our products include CD weld pins, Cup head weld pins, perforated base pins, self adhesive pins, Lacing Anchors, Quilting pins, all kinds of self locking washers, and Dome caps.

Insulation Anchor Pins Details

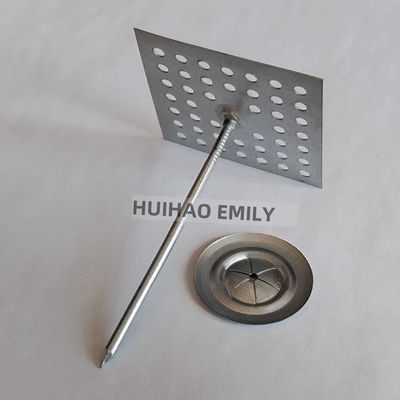

Product name: perforated base insulation anchor pins

Material: stainless steel, galvanized steel, aluminum

Base size: 50mmx50mm, 40mmx40mm, 35mmx35mm, 24mmx24mm

Pin diameter: 2.7mm, 3.0mm in common, other to be request

Pin length: 25mm-300mm

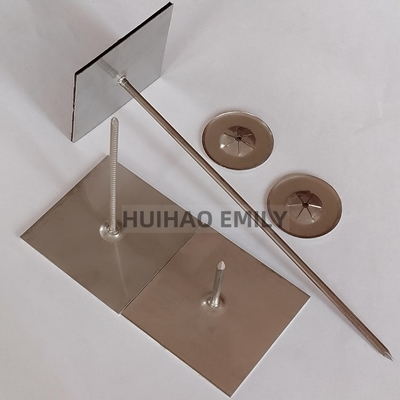

Product name: self stick pins

Material: stainless steel, galvanized steel, aluminum

Base size: 50mmx50mm, 40mmx40mm, 35mmx35mm, 24mmx24mm

Pin diameter: 2.7mm, 3.0mm in common, other to be request

Pin length: 25mm-300mm

Product name: CD weld pins

Material: stainless steel, galvanized steel, aluminum

Pin diameter: 1mm-5mm

Pin length: 10mm-500mm

Product name: bimetallic pins

Base material: aluminum alloy

Base size: 6X15mm

Pin material: copper coated, zinc plate stainless steel

Pin diameter: 2.7mm, 3.0mm in common

Pin length: 45mm-300mm

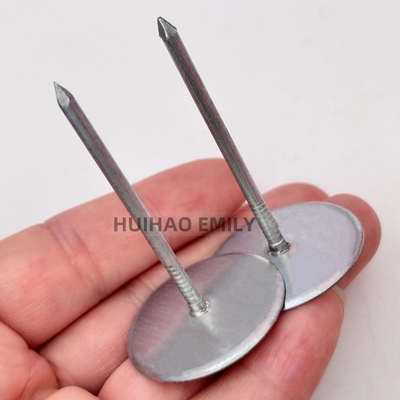

Product name: Cup head weld pins

Material: galvanized steel

Base size: 25mm, 30mm

Pin diameter: 2.7mm, 3.0mm, 3.4mm

Pin length: 25mm-300mm

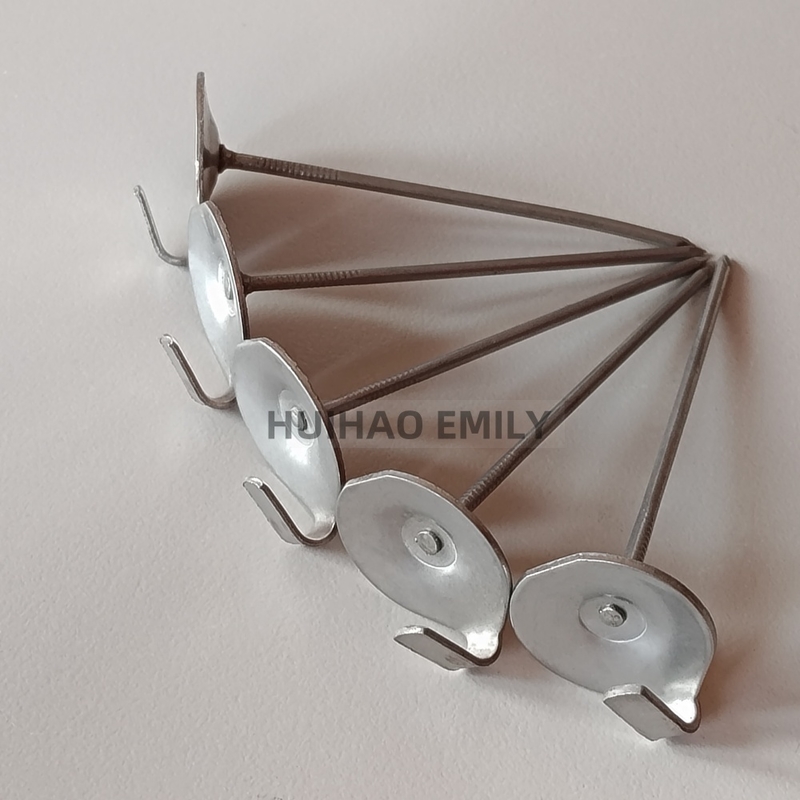

Product name: lacing anchor

Material: stainless steel, galvanized steel

Base size: 22mm

Hook size: 5mmx11mm

Pin diameter: 2.7mm, 3.0mm

Pin length: 25mm-300mm

Advantages of Ducting Accessories Insulation Anchor Pins and Hardware

Suitable for all kinds of wall
High pull-off strength for a higher security of the system
Low thermal conduction addition value to avoid thermal bridge
Galvanized layer on the steel nail to protect the nail from alkali

Accessories of Insulation Anchor Pins

Round self locking washer

Square self locking washer

Metal dome cap washer

PE+metal dome cap washer
