22mm Stainless Steel Lacing Hook For Reusable Insulation Blankets

Large Image : 22mm Stainless Steel Lacing Hook For Reusable Insulation Blankets

Product Details:

Place of Origin:	China
Brand Name:	HUIHAO KASITE
Certification:	ISO9001-2015
Model Number:	hook-22

Payment & Shipping Terms:

Minimum Order Quantity:	5000 pcs
Price:	USD0.1/PC
Packaging Details:	BAG + CARTON+PLATE for Reusable Insulation Blankets SS Lacing Hook
Delivery Time:	7 WORK DAYS
Payment Terms:	L/C,T/T
Supply Ability:	50 0000 sets Reusable Insulation Blankets SS Lacing Hook per 30 days

Contact Now

22mm Stainless Steel Lacing Hook For Reusable Insulation Blankets

Description

Name:	SS Lacing Hook	Material:	Stainless Steel 304 / 316
Hook Size:	22mm	Washer Size:	25mm
Ring Size:	3x30mm	Speed Clips:	25 MM
Factory:	Huihao Hardware	Application:	Insulation Blanket, Pad Connector
Highlight:	22 Mm Head Insulation Blankets , Reusable Insulation Blankets , SS Lacing Hook Insulation Blankets

22mm Stainless Steel Lacing Hook For Reusable Insulation Blankets

Product Specifications

Attribute	Value
Name	SS lacing hook
Material	Stainless steel 304 / 316
Hook size	22mm
Washer size	25mm
Ring size	3x30mm
Speed clips	25 MM
Factory	Huihao hardware
Application	Insulation blanket, pad connector

Product Details

Material: Stainless steel 304/316, carbon steel
Head size: 22mm diameter, 30mm diameter, 25x11mm
Pin diameter: Standard size is 12GA (2.7mm), 14GA(2.0mm)
Pin length: 2-1/2" and 4-1/2" are standard
Install parts: Self-locking washers available in various sizes, shapes, and materials

Features

Pins material is annealed steel wire, easy for bending and cutting
Zinc coated/copper plated surface treatment for rustproof
Smooth surface, no burrs
Base washer material is hardness material, not easily deformed

Technical Specifications

Brand Name: huihaocustom
Diameter: 12ga, 14ga
Length: 10mm-115mm
OEM: Available
Production: Automated production
Supply Ability: 100000 Piece/Pieces per Month
Surface treatment: Zinc coated/copper plated, polished

Standards

US Standard

Head diameter: 1 inch
Pin diameter: 10Ga
Length options: 1/2inch to 2 inch
Packaging: Typically packed by bucket (36 buckets per pallet)

EU Standard

Head diameter: 30mm
Pin diameter: 2.7mm
Length options: 22mm to 100mm
Custom options: Kraft paper under head or plastic sleeve on pin available

Australia Standard

Common lengths: 25mm, 50mm, 75mm, 100mm

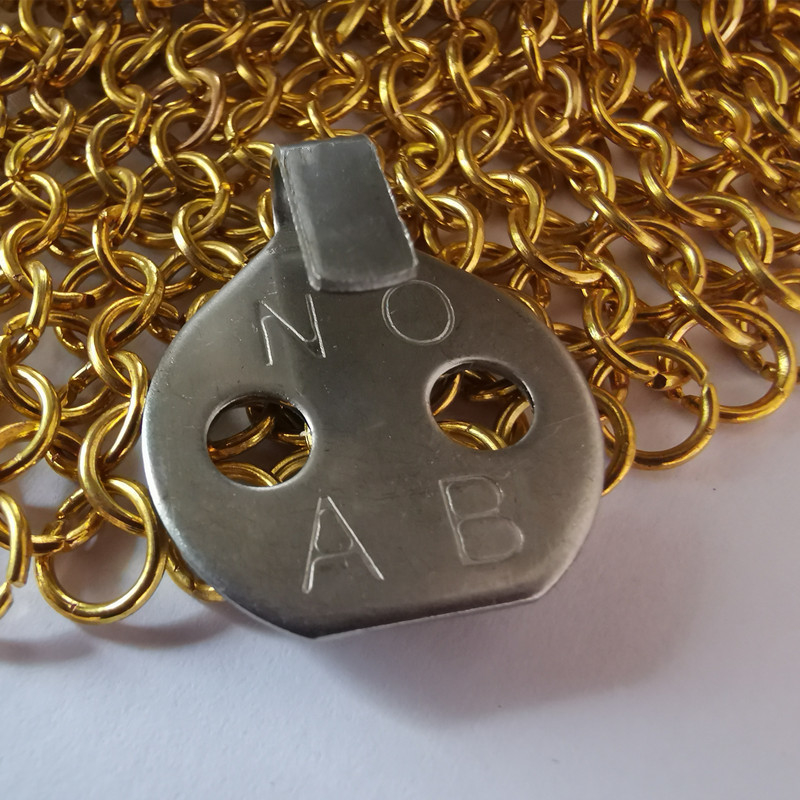

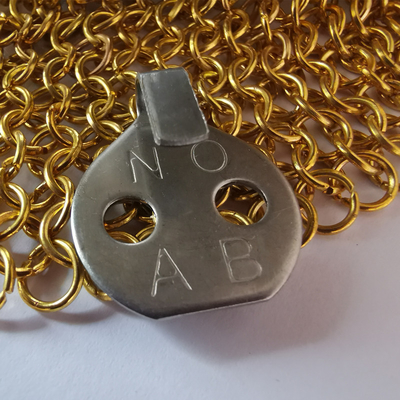

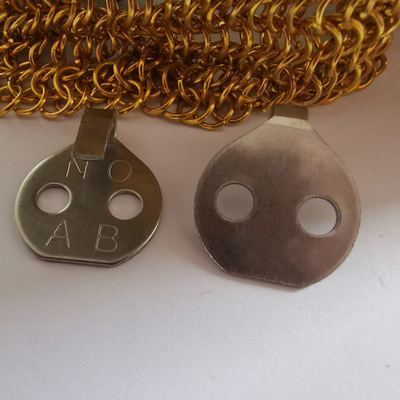

Marked NO AB to indicate asbestos free
Available diameters: 2 mm (14 ga) and 2.7 mm (12 ga)

Applications

Rooftop insulation (can be applied under shingles)
Process piping and tanks
Petrochemical processing
Refineries and manufacturing plants
Hot and cold food processing
Wine tank insulation
Retort ovens
Refrigerated rooms and buildings
Heat conservation applications
Boats and ships
