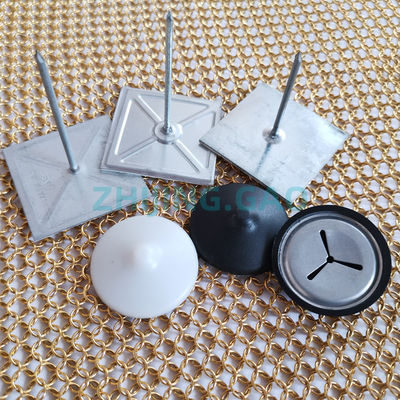

Self Adhesive Type Rock Wool Pins With 50 Mm Tape Base

Self Adhesive Type Rock Wool Pins With 50 Mm Tape Base
Self Adhesive Type Rock Wool Pins With 50 Mm Tape Base Self Adhesive Type Rock Wool Pins With 50 Mm Tape Base

Large Image :  Self Adhesive Type Rock Wool Pins With 50 Mm Tape Base

Product Details:
Place of Origin: China
Brand Name: HUIHAO KASITE
Certification: ISO9001-2015
Model Number: SA-50
Payment & Shipping Terms:
Minimum Order Quantity: 10000 sets Rock Wool Fasteners
Price: USD0.08/SET
Packaging Details: CARTON+PLATE or to be your request for Rock Wool Fasteners
Delivery Time: 7 WORK DAYS
Payment Terms: L/C,T/T
Supply Ability: 500000 pcs Rock Wool Fasteners per 30 days
Contact Now

Self Adhesive Type Rock Wool Pins With 50 Mm Tape Base

Description
Name: Rock Wool Fasteners Tape Base: 50 Mm
Fastener Length: 25mm-280mm Fasteners Dia: 12 GA , 3MM
Fastener Type: Self Adhesive Pins Application: Fixing Insulation System
Factory: Huihao Hardware Custom: Patterns, Size And Colors Can Be Customized
Highlight:

50 mm self stick insulation pins

,

12 ga self stick insulation pins

,

50 mm insulation pins self adhesive

Self Adhesive Type Rock Wool Pins With 50 Mm Tape Base
Product Specifications
Attribute Value
Name Rock Wool Fasteners
Tape base 50 mm
Fastener length 25mm-280mm
Fasteners diameter 12 GA, 3MM
Fastener type Self adhesive pins
Application Fixing insulation system
Factory Huihao hardware
Customization Patterns, size and colors can be customized
Product Overview
  • Product names: self adhesive pins, self stick nails, rock wool insulation pins, self stick up hangers
  • Pin material: stainless steel, mild steel, aluminum
  • Pin diameter: 2.7mm or 3mm
  • Common pin lengths: 38mm, 45mm, 63mm, 90mm, 120mm, 140mm, 160mm, 180mm, 203mm
  • Tape base size: 50mm×50mm

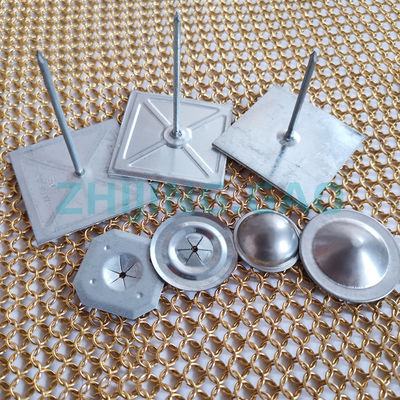

  • Fixing parts: Self locking washer, dome cap washers, speed clips
Product Description

Self Stick rock wool fasteners easily install any type of insulation up to 3.5" thick to air ducts, metal buildings, concrete foundations - even to the underside of wooden roofs. These insulation hangers are perfect for installing fiberglass or rubber insulation blankets or polystyrene board. The sticker backing makes placement easier, with a unique Easy-Peel adhesive backing design that eliminates fumbling with release paper.

Technical Specifications
Pin Diameter Base Plate Size Self Stick Pin Length
12ga (2.7mm/3mm) 50mm square w/tape 1"
12ga (2.7mm/3mm) 50mm square w/tape 1-5/8"
12ga (2.7mm/3mm) 50mm square w/tape 2"
12ga (2.7mm/3mm) 50mm square w/tape 2-1/2"
12ga (2.7mm/3mm) 50mm square w/tape 3-1/2"
12ga (2.7mm/3mm) 50mm square w/tape 4-1/2"
12ga (2.7mm/3mm) 50mm square w/tape 5-1/2"
12ga (2.7mm/3mm) 50mm square w/tape 6-1/2"
12ga (2.7mm/3mm) 50mm square w/tape 8"

Material Properties:

  • Polyethylene foam with aggressive pressure sensitive rubber resin adhesive
  • Service Temperature: -40°C to +70°C
  • Highly resistant to abrasion, corrosion and moisture
  • Conforms to European Directive 2000/53 (Lead, Chromium VI, Mercury, Cadmium free)
  • 10 Minutes 180 degree Peel Adhesion: 30 N/25mm
  • 500 Hour static shear (Stainless Steel): 0.8 kg/cm³
Installation Instructions
  1. Clean the surface thoroughly
  2. Peel off the backing paper
  3. Stick the pin in place
  4. Apply pressure to the pin
  5. Wait 15-20 minutes for adhesive to set
  6. Install insulation and secure with self locking washer

Application Guidelines: Average usage is 6pcs/m² for 1-10 layers, 7pcs/m² for 11-20 layers, and 9pcs/m² for 21-26 layers. Any single block with an area greater than 0.1m² must be anchored. Increase anchor density around sun-exposed areas, under openings, and along edges (not exceeding 300mm spacing). Maintain at least 60mm from base edges.

Self Adhesive Type Rock Wool Pins With 50 Mm Tape Base 0 Self Adhesive Type Rock Wool Pins With 50 Mm Tape Base 1
Frequently Asked Questions
Are you a factory or trading company?

We are the specialized supplier of insulation pins fasteners and can provide the best price.

Where is your factory located?

Our factory is located in Raoyang City, Hebei Province.

How can I get pricing information?

We typically provide quotes within 24 hours of receiving your inquiry. For urgent requests, please contact us directly.

Do you offer OEM or ODM services?

Yes, we accept OEM service requests.

How do you ensure product quality?

Every production process is inspected by our quality control department to ensure consistent quality.

Can I request samples before ordering?

Yes, samples are available free of charge. Please contact us for arrangements.

What payment methods do you accept?

We accept T/T, Western Union, L/C, and PayPal. Payment terms are negotiable.

What shipping methods are available?

Products can be shipped by sea, air, or express (EMS, UPS, DHL, TNT, FedEx). Please confirm shipping method before ordering.

What is your typical lead time?

Lead time depends on order quantity and season. Small quantities typically ship within 3-7 days, while large orders may take 20-30 days.
