Mild Steel Fasteners Insulation Support Hanger Adhesive Tape

Large Image : Mild Steel Fasteners Insulation Support Hanger Adhesive Tape

Product Details:

Place of Origin:	China
Brand Name:	HUIHAO KASITE
Certification:	ISO9001-2015
Model Number:	SA-50

Payment & Shipping Terms:

Minimum Order Quantity:	10000 pcs Insulation Support Hanger
Packaging Details:	BAG + CARTON+PLATE for Insulation Support Hanger
Delivery Time:	7 WORK DAYS
Payment Terms:	L/C, T/T
Supply Ability:	500000PCS Insulation Support Hanger PER 30 DAYS

Contact Now

Mild Steel Fasteners Insulation Support Hanger Adhesive Tape

Description

Name:	Insulation Support Hanger	Base Type:	Adhesive Tape
Base Plate Size:	50 Mm X 50 Mm	Machine Type:	Full Auto
Hanger Length:	38 Mm-180 Mm	Hanger Dia:	12 GA
Factory:	Huihao Hardware	Carton Size:	38x38x38cm
High Light:	mild steel self stick insulation hangers , 12 ga self adhesive insulation hangers , mild steel self stick insulation hangers

Mild Steel Fasteners Insulation Support Self Stick Pins For Glass Wall Fixed

Features of insulation support hanger:

anneaded finished for steel wire and stainless steel wire to make the softly hanger pins.
hardness metal sheet is used for base of the perforated insulation hangers
suitable material make sure the locked is firmly.
Environmentally-friendly, our product meet American standard, Japanese standard, European standard and German standard.
Light, dust free, fire retardant (A) and easy to install
Heat reflection, heat insulation, sound insulation, counter radiation, counter vibration.
During Summer: moisture barrier, sun protection, waterproof, energy saving consumed by cool air conditioning
During Winter: heat protection, remarkable energy saving consumed by warm air conditioning
Best results are obtained when ambient temperature is above 40° F at the time of application
A firm straight, forward pressure should be used. Do not twist

Technical data Of insulation support hanger

modle	BASE TYPE	SUPPORT NAIL DIA	LENGTH OF NAILS
SQ-50-55	0.5MM X50MM	2.7MM, 3MM	55MM
SQ-50-63	0.5MM X50MM	2.7MM, 3MM	63MM
SQ-50-70	0.5MM X50MM	2.7MM, 3MM	70MM
SQ-50-90	0.5MM X50MM	2.7MM, 3MM	90MM
SQ-50-100	0.5MM X50MM	2.7MM, 3MM	100MM
SQ-50-110	0.5MM X50MM	2.7MM, 3MM	110MM
SQ-50-120	0.5MM X50MM	2.7MM, 3MM	120MM
SQ-50-130	0.5MM X50MM	2.7MM, 3MM	130MM
SQ-50-140	0.5MM X50MM	2.7MM, 3MM	140MM
SQ-50-160	0.5MM X50MM	2.7MM, 3MM	160MM
SQ-50-180	0.5MM X50MM	2.7MM, 3MM	180MM
SQ-50-203	0.5MM X50MM	2.7MM, 3MM	203MM
SQ-50-230	0.5MM X50MM	2.7MM, 3MM	230MM
SQ-50-250	0.5MM X50MM	2.7MM, 3MM	250MM

Material of insulation support hanger:

Galvanised mild steel (PIN ADHESIVE MS)
Stainless steel (PIN ADHESIVE.SS)
Aluminium (PIN ADHESIVE.AL)

Adhesive	Base	White, cross-linked, closed-cell polyethylene foam
	Coating	Modified acrylate adhesive on both sides
	Liner	Siliconized paper
	Thickness	1 mm
Power (FINAT-TM 1, on stainless steel, one side covered with 50 microns polyester film)
	1 minute	>18 N/25 mm
	20 minutes	tear
	24 hours	tear
Shear strength (FINAT-TM 8, on stainless steel, one side covered with 50 micronspolyester film)
	23 °C	>150 hours
	70 °C	1 hour

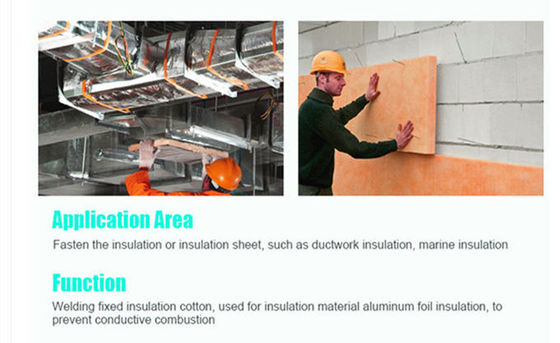

Applications of Insulation support Hanger

Mild Steel Fasteners Insulation Support Self Stick Pins For Glass Wall Fixed 1

square base insulation support hanger that is both fast and easy to install.
Suitable for fixing all types of insulation to concrete, brick, stone or block base material.Insulation fastening solutions for concrete and masonry, suitable for insulation materials such as mineral wool, EPS, XPS and fibreglass.
