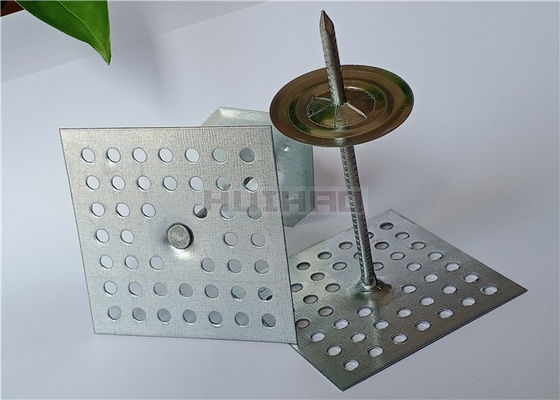

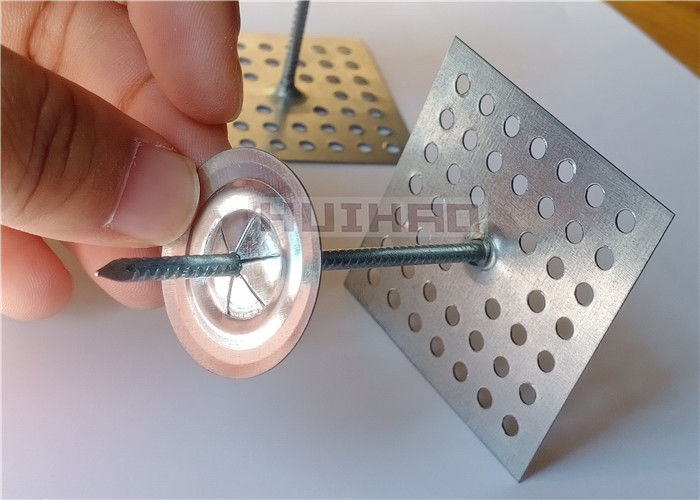

75mm Insulation Hangers With Perforated Base Fixing Insulation Material To Wall & Ceiling

Name: 75mm Insulation Hangers With Perforated Base Fixing Insulation Material To Wall & Ceiling
Brand: Huihao Hardware Mesh Product Limited
SKU: Insulation Hangers With Perforated Base
Price: 0.02 USD
Availability: InStock

All Products

Self Adhesive Insulation Pins
(134)

Insulation Anchor Pins
(157)

Metal Mesh Drapery
(112)

Architectural Wire Mesh
(109)

Tile Backer Board Washers
(62)

Stud Welding Pins
(205)

Pin Welding Machine
(4)

Fabric Laminated Glass
(51)

Metal Ring Mesh
(99)

Solar Panel Clips
(70)

Grip Strut Grating
(32)

Self Locking Washer
(119)

Expanded Metal Mesh
(41)

Metal Coil Drapery
(32)

Decorative Wire Mesh
(101)

Self Cleaning Screen Mesh
(89)

Johnson Wire Screen
(38)

Plastic Recycling Line
(37)

Ultra Fine Wire
(15)

Stainless Steel Wire Rope Mesh
(25)

Best Products

50mm Base Metal Self Adhesive Insulation Pins Adhesive Insulation On Smooth Surface

Certification

Customer Reviews

Great! Place next order in near future

—— Joe Paletta

Many thanks for your service and the coil mesh is so beautiful.

—— Mélissa Tovar

Recieved the insulation pins, Everything looks good.

—— Ivan

Zhijing.Gao is a great associate to do business with. she is honest and clear with communication. I will do business with them again

—— Amila

I ordered a custom mesh metal chain curtain for my charity dinner event in Canada for CANFAR. I was a bit crammed on timing and Cherry managed to get it to me on time. I had to pay a bit more for express shipping but it was worth the cost. I am happy. thank you!!!

—— Daerye

Emily introduce the Perforated base pin clear and helpful to me. Good service and good guality.

—— Karl

I'm Online Chat Now

75mm Insulation Hangers With Perforated Base Fixing Insulation Material To Wall & Ceiling

Large Image : 75mm Insulation Hangers With Perforated Base Fixing Insulation Material To Wall & Ceiling

Product Details:

Place of Origin:	China
Brand Name:	HUIHAO
Certification:	ISO9001-2015
Model Number:	Insulation Hangers With Perforated Base

Payment & Shipping Terms:

Minimum Order Quantity:	10000 pcs
Packaging Details:	500pcs per carton, 48 cartons per pallet, or as your requirement
Delivery Time:	10 work days
Payment Terms:	L/C, T/T,
Supply Ability:	10000 pcs oer hour

Contact Now

75mm Insulation Hangers With Perforated Base Fixing Insulation Material To Wall & Ceiling

Description

Name:	Insulation Hangers With Perforated Base	Brand:	Huihao Custom
Base Material:	Galvanized Steel Or Stainless Steel	Base Size:	40x40mm, 50x50mm Etc.
Pin Material:	Galvanized Steel Or Stainless Steel Or Aluminum	Base Thickness:	0.4mm, Etc.
Product Customization:	Support	Pin Diameter:	2.7mm, 3.0mm, 3.4mm Etc.
Samples:	Support	Pin Length:	1" - 12"
Highlight:	75mm self stick insulation hangers , ceiling self adhesive insulation hangers , 75mm self stick insulation hangers

75mm Insulation Hangers With Perforated Base Fixing Insulation Material To Wall & Ceiling

Specification details of the insulation hangers with perforated base

Insulation hangers with perforated base are widely used to attach insulation material with the use of general purpose adhesive.

Huihao Hardware Mesh Product Limited is a professional manufacture of perforated base insulation hangers and self locking washers, we choose high standard raw materials, have fully automatic production line and strict quality control system, the quality is good, and the delivery is fast.
If you are in need of perforated base insulation hangers and self locking washers, please feel free to ask me a price or sample, my email is cherry@huihaomesh.com

Base size in common: 40mmx40mm, 50mmx50mm
Pin diameter in common: 2mm, 2.5mm, 2.7mm, 3mm and 10ga (3.4mm)
Pin length in common: 50mm, 63mm, 90mm, 114mm, 125mm, 175mm, 203mm, 230mm etc.

Surface treatment: zinc coated or copper coated for mild steel material

Material available

Pin material

-mild steel: must be annealed treatment,

easy for bend;

zinc coated/copper plated finished for anti-rust

-aluminum 1100 grade

-annealed stainless steel for specification

Base

Galvanized steel, stainless steel

Common Size Details

base type

pin diameter

pin length

material thickness

25 mm x 25 mm

1.8 mm , 2.0 mm

20 mm - 114mm

0.4-0.5 mm

40 mm x 40 mm

2.5 mm, 2.7mm

20 mm -180mm

0.4-0.5 mm

50 mm x50 mm

2.7 mm , 3.0mm, 3.4mm

50 mm - 280mm

0.4-0.5 mm

Applications of the insulation hangers with perforated base

	1. Wipe surface clean Perforated insulation hangers must be applied to a clean, dry, non-painted surface.
	2. Apply adhesive to the bottom of the perforated insulation hangers Spread adhesive onto the perforated base with a putty knife.
	3. immediately stick the insulation hangers in place. Press the hangers into position with a twisting motion to assure an even spread of adhesive. The adhesive should protrude through the performation & beyond the edges of base.
	4. Install Insulation Note: allow adhesive to dry thoroughly before hanging insulation, usually 24-72 hours.
	5. Secure with washers Secure insulation in place with a self locking washer and then bend over or clip off the pins

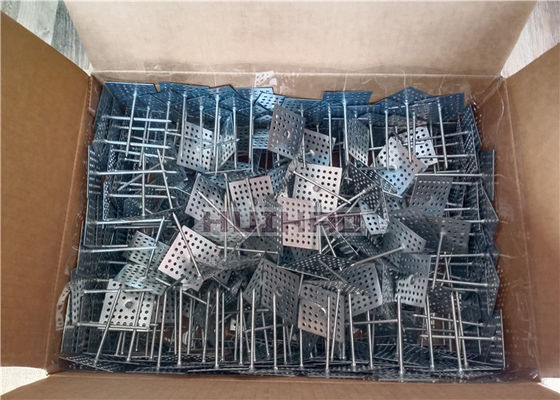

Package Details Of The Perforated Base Insulation Hangers

PIN LENGTH	CARTON SIZE	QTY/CARTON
38MM	41CMX28CMX17CM	1000PCS
50MM-65MM	41CMX28CMX17CM	500PCS
70MM-84MM	30CMX28CMX29CM	500PCS
90MM-120MM	30CMX30CMX30CM	500PCS
130MM-160MM	30CMX30CMX35CM	500PCS
170MM-203MM	30CMX30CMX28CM	250PCS
OTHERS	SUPPORT CUSTOM	SUPPORT CUSTOM

Huihao Hardware Mesh Product Limited.

1. We sell what we manufacture, the price is good.
2. We choose the best quality materials to make sure the good quality.
3. We have fully automatic production line to make sure the quick delivery.
4. We have strict quality control system.
5. The material, the size, the package all could be customized according to customer's requirement.
6. We have free samples, for you to check the quality.
