Product Details:
|
| Material: | Stainless Steel304,316 | Name: | Johnson Rotary Screen Drum |
|---|---|---|---|
| Slot Size: | 0.5-100mm | OEM: | Accept OEM |
| Length: | Upto 4000mm | Diameter: | Upto 2900mm |
| High Light: | johnson wedge wire screens,johnson well screen |
||
Johnson Rotary Screen Drum details:
_______________________________________________________________________________________________
Stainless Steel Inverted Wrapped V Wedge Wire Strainer Filter Mesh For Rotary Drum is made up of rods and wire. The rod can be round wire, triangular
wire or trapezoid wire. The wire is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension.
At the same time, water well screens have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics.
It can be used in many kinds of medium filtering.
Specification of Johnson Rotary Screen Drum
_______________________________________________________________________________________________
Type:support rod reverse .
End connection: male/female threaded coupling, welded rings/plain beveled ends, flange, closed-end plate, same slot sieve plate
|
Material |
SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc |
||||
|
OD Range |
According to request and the actual flange and strengthen bar |
||||
|
Normal ID |
176mm, 200mm, 230mm, 255mm. According to request |
||||
|
Normal Length |
600mm, 602mm, According to request |
||||
|
Normal Slot |
0.21mm, 0.4mm, 0.41mm, 0.8mm. Customized 0.02-3mm. |
||||
|
Slot Direction |
Radial Direction |
||||
|
Wedge Wire |
0.75x1.5 |
1x2 |
2x3 |
2*4 |
3*5 |
|
Support Rod |
1.5x2.5 2x3 |
1.5x2.5 2x3 |
2x3 2x4 3x5 3x6
|
2x4 3x5 3x6 5x6 |
3x5 3x6 5x6
|
|
End Finishing |
Flange, , Metal Ring, etc |
||||
|
Note |
Customized According To Requirement |
||||
images of Johnson Rotary Screen Drum
_______________________________________________________________________________________________

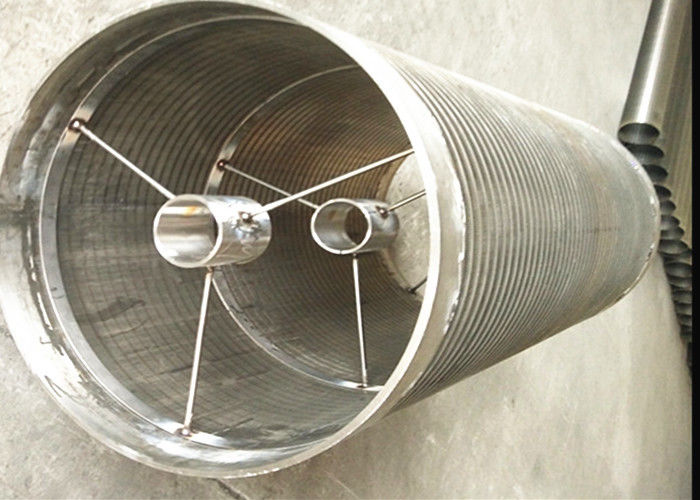

1. End view of external-fed cylinder

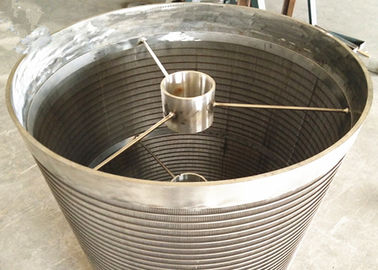

2. Internally-fed fabricated rotary screen cylinder

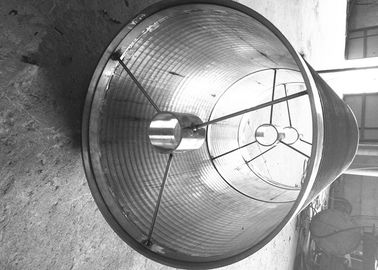

3. Internally-fed rotary screen cylinder
4. Reinforced externally-fed rotary screen
5. Externally-fed rotary screen with flanges
6. Internally-fed rotary screen with flights
7.Many Profile wire constructions are available.
8.This table only lists a few typical profile wire / support rod combinations.
