product details of Heavy Duty Poly Ripple Self Cleaning Screen Mesh

Heavy Duty Poly Ripple Self Cleaning Screen Mesh are well suited to today’s quarry operations. Heavy Duty Poly Ripple Self

Cleaning Screen Mesh are light but durable, combining the high open area of wire, with the wear resistance of polyurethane.

Offering many advantages over conventional screencloths, they are lightweight and easy to install reducing down-time and

increasing production and efficiency, which makes Poly Ripple the most economical choice in screencloth

Specification of Heavy Duty Poly Ripple Self Cleaning Screen Mesh

The general rule for the correct wire diameter for a given aperture, Heavy Duty Poly Ripple Self Cleaning Screen Mesh is that

it is the next gauge down from what would normally be supplied in woven wire. For example 12.5 mm aperture in 4mm wire,

6.3 mm aperture in 2.5mm wire and so on. The following list of specifications gives all current apertures and the wire diameters

available.

Features of Heavy Duty Poly Ripple Self Cleaning Screen Mesh

Heavy Duty Poly Ripple Self Cleaning Screen Mesh has proved to be a great asset to the mining and quarrying industries,

offering these benefits:

• Pegging or Blinding -is reduced, as the very active wires are not woven together.
• With less pegging, the result is a clean screencloth surface and optimum area throughout the screening process.
• These active wires will not allow the build up of ultra fine particles
• Lighter screen cloth, which leads to easier installation
• Poly Ripple is lighter than woven wire and therefore is easier to handle and install.
• the Poly Ripple is longer lasting than woven wire and wire ripple, which therefore reduces maintenance and saves dollars

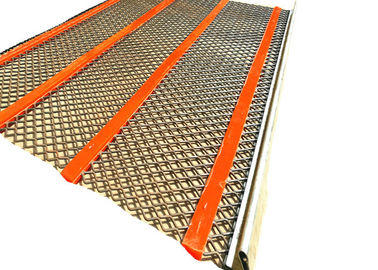

There are four main parts to the Poly Ripple

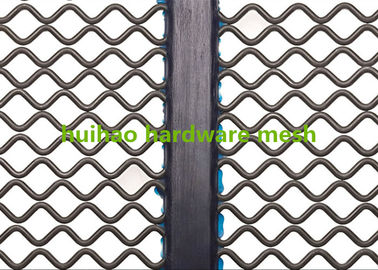

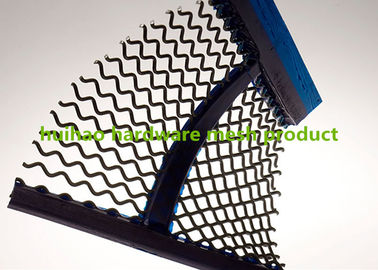

• Crimped wires are laid on their sides to form an aperture, and are held in position by means of moulded polyurethane strips.
• These poly strips are designed to sit over the support bars or stringers of the screen when fitted.
• This allows for maximum screening area uninterrupted by polyurethane.
• The aperture that is formed by this process allows the wires to vibrate independently, as they are not woven together.

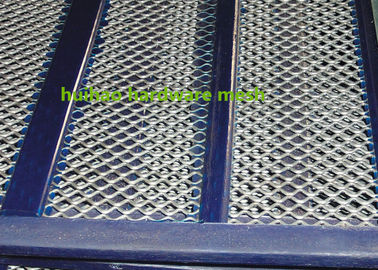

• The Poly Ripple is fitted to the vibrating screen in the same manner as normal woven wire.
• When fitted to machines with centre hold down bars, the Poly Ripple is supplied to suit, complete with boltholes already cut.
