Type D Aperture Mining Screening Media Wire Mesh Screen 3000 X 1830 Mm

Large Image : Type D Aperture Mining Screening Media Wire Mesh Screen 3000 X 1830 Mm

Product Details:

Place of Origin:	CHINA
Brand Name:	HUIHAO
Certification:	ISO900-2008
Model Number:	Self Cleaning Screen Mesh

Payment & Shipping Terms:

Minimum Order Quantity:	20 pieces
Packaging Details:	pallets
Delivery Time:	8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000 pcs per 15 days

Contact Now

Type D Aperture Mining Screening Media Wire Mesh Screen 3000 X 1830 Mm

Description

Material:

Heavy Duty Wire

Size:

3000x1830mm

Wire Diameter:

1.5MM-4MM

Aperture:

16mm , 20mm

Highlight:

stainless steel filter mesh

self cleaning screen

Type D Aperture Mining Screening Media Wire Mesh Screen 3000 X 1830 Mm

Product Specifications

Attribute	Value
Material	Heavy duty wire (45mn steel, 65mn steel)
Size	3000x1830mm (Standard sizes: 4000x1830mm, 3000x1830mm)
Wire diameter	1.5MM-4MM
Aperture	16mm, 20mm
Wire type	Crimped wire
Hook material	1.5mm thickness galvanized steel sheet
Hook degree	45 degree, 60 degree

Technical Specifications

Aperture (mm)	Wire diameter (mm)	kg/m²	Screening area %
22.00	2.50-4.00	3.0-7.1	72-80
25.00	4.00-5.00	6.4-9.3	70-74
26.00	4.00-5.00	6.10-9.20	70-75
28.00	3.00-4.00	3.5-5.8	77-82
30.00	3.00-4.00	3.3-5.6	78-83
32.00	4.00	5.30	79
35.00	4.00-5.00	4.8-7.3	77-81
40.00	4.00	4.00	84

Product Features

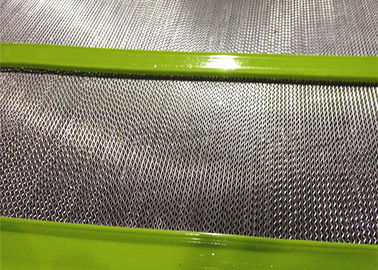

Type D (Triangular Opening) Mining Screening Media: Similar to Type S but with increased precision due to an added straight wire between each crimped wire. This design limits crimped wire movement for greater precision, prevents wedging of elongated particles (though with slightly reduced screening area), and performs exceptionally well under heavy loads and higher impact materials.

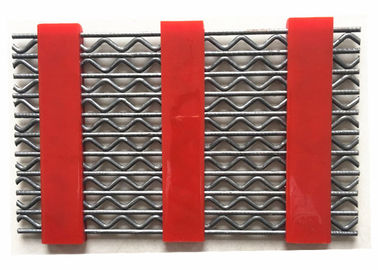

Polyurethane Bands

Polyurethane bands are typically made with 80-90 shore hardness PU, capable of withstanding temperatures exceeding 70°C. Highly recommended for asphalt plants and aggregate screening applications, these bands offer excellent wear resistance and significantly extend screen life. Suitable for all types of self-cleaning screens.

Standard thickness: 15mm, 20mm
Standard width: 30mm, 40mm

Customization Options

We accept custom orders according to your drawings or specifications. Our team can design patterns and sizes to meet your specific requirements. Minimum order quantity: 10 pieces.

Hook Types
