Self Cleaning Anti-clogging Screen For Plant Construction And Mining Machinery

Self Cleaning Anti-clogging Screen For Plant Construction And Mining Machinery
Self Cleaning Anti-clogging Screen For Plant Construction And Mining Machinery Self Cleaning Anti-clogging Screen For Plant Construction And Mining Machinery Self Cleaning Anti-clogging Screen For Plant Construction And Mining Machinery Self Cleaning Anti-clogging Screen For Plant Construction And Mining Machinery Self Cleaning Anti-clogging Screen For Plant Construction And Mining Machinery

Large Image :  Self Cleaning Anti-clogging Screen For Plant Construction And Mining Machinery

Product Details:
Place of Origin: China
Brand Name: huihao
Certification: ISO9001-2008
Model Number: Self Cleaning Anti-clogging Screen
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Packaging Details: 1.Inside is plastic ,outside is hessian and tie by steel strips then packing by pallet 2.wooden box 3.Special packing can be made according to the customers request
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union,paypal
Supply Ability: 1000pcs per 20 days

Self Cleaning Anti-clogging Screen For Plant Construction And Mining Machinery

Description
Product: Self Cleaning Anti-clogging Screen Wire Diamtere: 0.8-12MM
Aperture: 5mm-130mm Width: 1800MM
Length: 2180mm Application: For Quarry , Mining , Aggregate Industry
Highlight:

crimped wire mesh

,

stainless steel filter mesh



Self Cleaning Anti-clogging Screen For Plant Construction And Mining Machinery

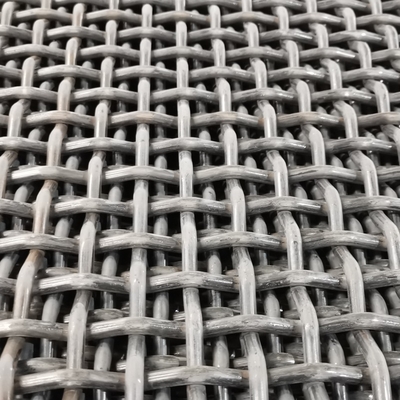

Self Cleaning Anti-clogging Screen is manufactured from manganese steel wire, galvanized wire or stainless steel wire. The wires are

woven into square, rectangular or long slot meshes.



Self Cleaning Anti-clogging Screen has various weaving types, such as plain weave, pre-crimped weave, flat top, intermediate crimped

and lock crimped. Various weaving types can fit different vibrating screens and materials.



Specification of Self Cleaning Anti-clogging Screen For Plant Construction And Mining Machinery



Aperture (mm) Nominal Wire Dia (mm) Approx. Free screening area% Aperture (mm) Nominal Wire Dia (mm) Approx. Free screening area% Aperture (mm) Nominal Wire Dia (mm) Approx. Free screening area%
2 1.25 38 16 4 64 40 5.6 77
2.5 1.25 44   5 58   6.3 75
3.15 1.25 51   5.6 55   8 69
4 1.6 44 20 5 64   10 64
1.25 58   5.6 61 45 5.6 79
1.6 51   6.3 58   6.3 77
5 1.6 57 22.4 5 66   8 72
2 51   6.3 60   10 67
2.5 45 25 5 69 50 6.3 79
6.3 2 58   6.3 64   12 65
2.5 51   8 57 56 6.3 81
3.15 45 28 5.6 69   8 77
8 2 64   6.3 67   10 72
2.5 58   8 61   12 68
3.15 52 31.5 5.6 72 63 6.3 83
10 2.5 64   6.3 70   8 79
3.15 58   8 64   10 74
4 51   10 58   12 71
12.5 3.15 64 36 5.6 75 80 8 83
4 57   6.3 72   10 79
5 51   8 67   12 76
14 3.15 67   10 61 100 8 86
4 61         10 83
5 54         12 80
Custom Size



installation of Self Cleaning Anti-clogging Screen For Plant Construction And Mining Machinery



Self Cleaning Anti-clogging Screen For Plant Construction And Mining Machinery 0

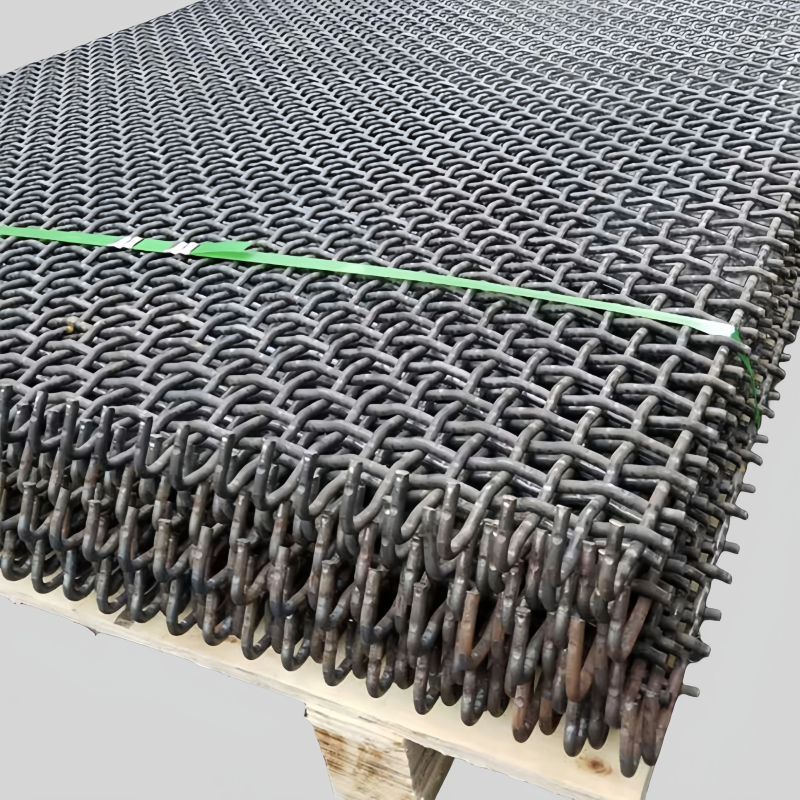

hook types of Self Cleaning Anti-clogging Screen For Plant Construction And Mining Machinery



Self Cleaning Anti-clogging Screen For Plant Construction And Mining Machinery 1



Application of Self Cleaning Anti-clogging Screen For Plant Construction And Mining Machinery



The square wire mesh is widely used in the vibrating screens, crushers and trommel screens.
Industrial square wire mesh can be used for screening and separating stones, coal, mining, gravel, sand and any other materials.



Self Cleaning Anti-clogging Screen For Plant Construction And Mining Machinery 2
