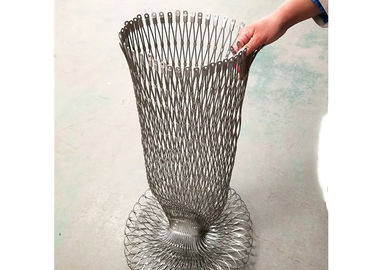

Warning Line Rope Mesh Bag For Environmental Protection

Large Image : Warning Line Rope Mesh Bag For Environmental Protection

Product Details:

Place of Origin:	china
Brand Name:	huihaokasite
Certification:	iso9001-2015
Model Number:	Environmental Protection Stainless Mesh Bag

Payment & Shipping Terms:

Minimum Order Quantity:	30
Price:	USD18/PC
Packaging Details:	rolls with wooden case
Delivery Time:	7 work days
Payment Terms:	L/C,T/T
Supply Ability:	6000 square meters per 30 days

Contact Now

Warning Line Rope Mesh Bag For Environmental Protection

Description

Name:	Warning Line Rope Mesh Bag	Rope Diameter:	1.5mm, 2mm, 3mm
Material:	Aisi304/316	Application:	Environmental Protection Stainless Mesh Bag
Hole Shape:	Diamond Hole	Surface Treatment:	Suppot
Highlight:	woven wire screen mesh , architectural steel mesh

Warning Line Rope Mesh Bag For Environmental Protection

Product Specifications

Attribute	Value
Name	Warning Line rope Mesh bag
Rope diameter	1.5mm, 2mm, 3mm
Material	aisi304/316
Application	Environmental Protection Stainless Mesh Bag
Hole shape	Diamond Hole
Surface treatment	suppot

Product Description

Huihao Company Design for safety required. Features include:

Smooth surface
Three dimension structure
Excellent visibility
Top quality wire rope from South Korea
Factory production since 2011
OEM & ODM service available
Precision sizing
100% installation guarantee
Factory direct pricing
Quick delivery
Professional service

Technical Specifications

Wire rope structure	Diameter (mm)	Breaking force (KN)	Mesh Size
Wire rope structure	Diameter (mm)	Breaking force (KN)	25×43 weight	30×55 weight	40×69 weight	50×87 weight	60×104 weight	70×121 weight	80×139 weight
7×7	1.2	0.63	0.9kg	0.72kg	0.5kg
7×7	1.5	1.67	1.29kg	1.01kg	0.71kg	0.62kg	0.5kg	0.4kg	0.35kg
7×7	2.0	2.94			1.33kg	1.0kg	0.83kg	0.68kg	0.63kg
7×7	2.5	4.61				1.65kg	1.31kg	1.11kg	0.93kg
7×19	2.5	4.82				1.65kg	1.31kg	1.11kg	0.93kg
7×7	3.0	6.37				2.54kg	2.02kg	1.68kg	1.42kg
7×19	3.0	6.57				2.54kg	2.02kg	1.68kg	1.42kg

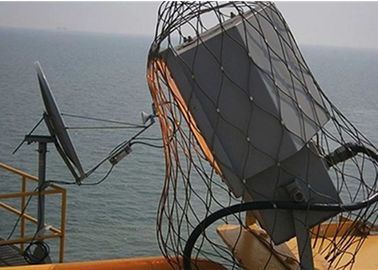

Applications

Installation Components

Frequently Asked Questions

Q: Are you factory/manufacturer or trader?

A: We are direct factory who owns production lines and workers. Everything is flexible and there is no need to worry about extra charges by the middle man or trader.

Q: How can I get prompt and accurate quotation?

A: We are custom made and how long you need to make. We need to understand the materials first, such as stainless steel 306, stainless steel 304, etc., then please tell me the wire diameter, aperture, size and quantity.

Q: Can I get free samples?

A: If the sample is available, yes, can be free. If unavailable, need to customize.

Q: Which countries do you export to?

A: Our goods are mainly exported to Australia, Canada, UK, USA, Germany, Thailand, South Korea and so on.

Q: Which payment method you can accept?

A: Generally we adopt T/T, LC, Western Union, Escrow and Money Gram.
