Stainless Steel Wire rope Mesh Used For Stair Balustrade

Stainless Steel Wire rope Mesh Used For Stair Balustrade
Stainless Steel Wire rope Mesh Used For Stair Balustrade
Stainless Steel Wire rope Mesh Used For Stair Balustrade Stainless Steel Wire rope Mesh Used For Stair Balustrade Stainless Steel Wire rope Mesh Used For Stair Balustrade Stainless Steel Wire rope Mesh Used For Stair Balustrade

Large Image :  Stainless Steel Wire rope Mesh Used For Stair Balustrade

Product Details:
Place of Origin: China
Brand Name: huihaokasite
Certification: ISO9001-2015
Model Number: ferrule flexible rope mesh
Payment & Shipping Terms:
Minimum Order Quantity: 30 square meters
Price: USD45/M2
Packaging Details: packed in carton box or wooden box. Or can be customized
Delivery Time: within 8 days
Payment Terms: T/T,L/C
Supply Ability: 1000 square meters per 28 days
Contact Now

Stainless Steel Wire rope Mesh Used For Stair Balustrade

Description
Material: Stainless Steel 316. 304 Cable Standard: 7x7(1.5mm, 2mm, 2.5mm), 7x19(3mm, 4mm)
Aperture: 25mmx43mm To 200mmx346mm Degree: 60
Width: 0.5-2meter Length: 30 Meters
Highlight:

woven wire screen mesh

,

architectural steel mesh

Stainless Steel Wire Rope Mesh Used For Stair Balustrade
Product Specifications
Attribute Value
Material Stainless Steel 316, 304
Cable Standard 7x7 (1.5mm, 2mm, 2.5mm), 7x19 (3mm, 4mm)
Aperture 25mmx43mm to 200mmx346mm
Degree 60
Width 0.5-2 meter
Length 30 meters
Product Features

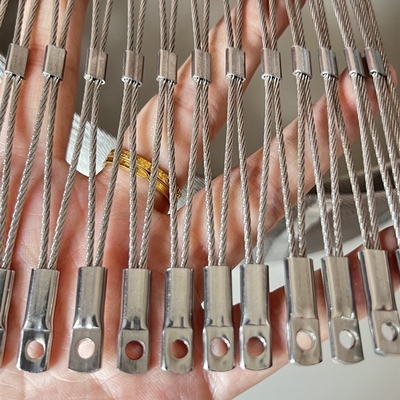

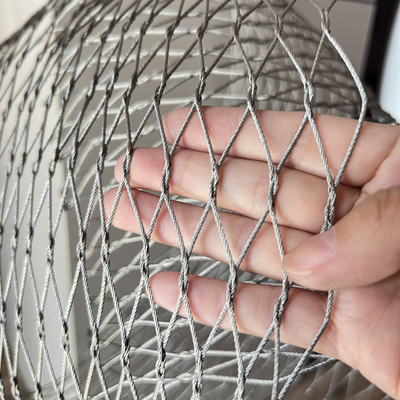

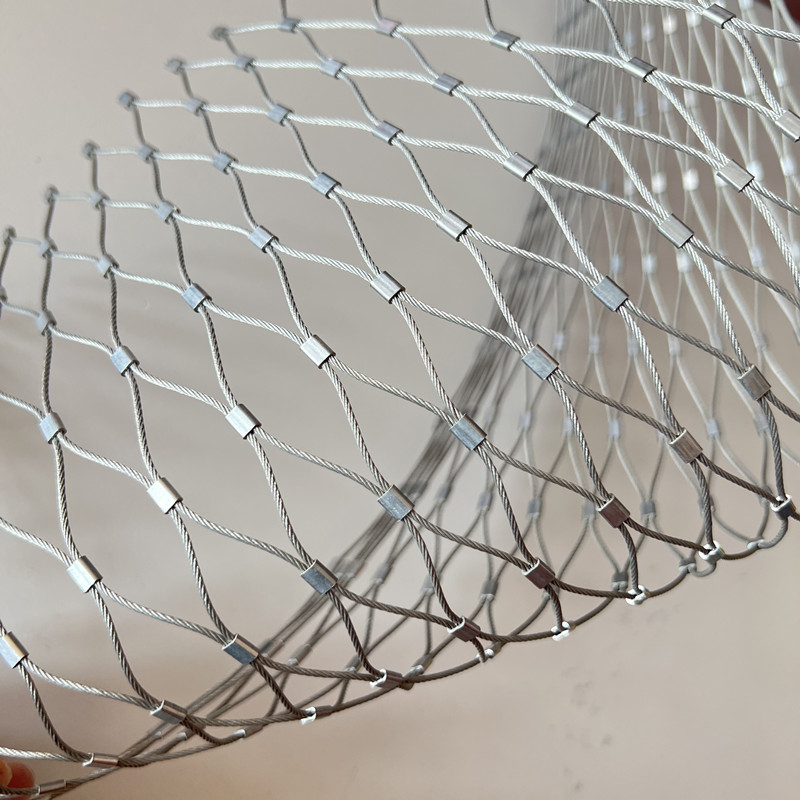

Ferrule Flexible Stainless Steel Cable Mesh With Frame Used For Stair Balustrade

  • Cable Mesh Material: 304, 316
  • Wire Diameter: 1.2 mm
  • Cable Wire Construction: 7*7
  • Mesh Type: Ferruled Mesh
  • Orientation: Vertical, Horizontal
  • Cable Mesh Angle: 60 degree in shape diamond
  • Flow Of Production: 100% Hand Made
  • Mesh Finished: Stainless Steel Polished
  • Usage: Staircases, Balustrades
  • Supply Ability: 300 Square Meter/Square Meters per Week
Type Breaking Load (KN) Wire Dia. (MM) Mesh Opening (MM)
7 X 19 7.38 3.2 120x120,102x102, 90x90,76x76,51x51
7 x 19 4.18 2.4 102x102, 90x90,76x76,51x51
7 x 7 3.17 2.0 76x76,60x60,51x51,38x38
7 x 7 2.17 1.6 76x76,51x51,38x38, 30x30,25.4x25.4
7 x 7 1.22 1.2 51x51, 38x38,30x30 25.4x25.4,20x20
Custom Services
  • Pattern design support according to the application
  • Frame design support according to the installation
  • Surface treatments support, include PVDF, PVD, Spraying
  • Supply install accessories, include screw, wall anchor, track, bolt and others
  • Material options: stainless steel, copper, bronze, brass, aluminum, aluminum alloy, etc.
  • Weave type options: plain weave, twill weave, dutch weave, plain dutch weave, twill dutch weave, unique woven method, etc.
  • ISO9001-2008 Quality certification management system
Accessories
Stainless Steel Wire rope Mesh Used For Stair Balustrade 0
Frame Types
Stainless Steel Wire rope Mesh Used For Stair Balustrade 1
