Product Details:
|
Name: | Architectural Metal Mesh Drapery | Application: | Wall Coverings / Room Dividers |
---|---|---|---|
Material: | Stainless Steel 304,316 | Ring Diamter: | 1.2mmx10mm ( Common Size) |
Width: | To Be Your Requirements | Length: | To Be Request |
Highlight: | metal chain curtains,mesh curtain panels |
Name | Architectural Metal Mesh Drapery |
Application | Wall Coverings / Room Dividers |
Material | Stainless steel 304, 316 |
Ring Diameter | 1.2mm × 10mm (common size) |
Width | Customizable to requirements |
Length | Customizable to request |

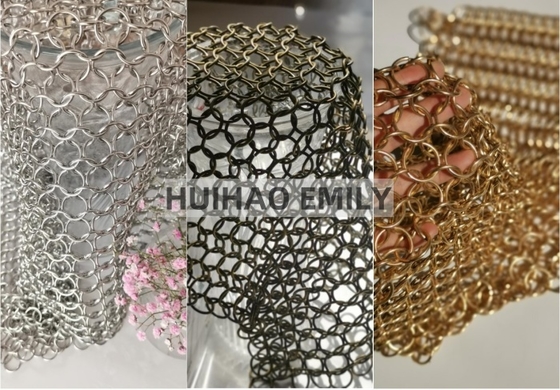

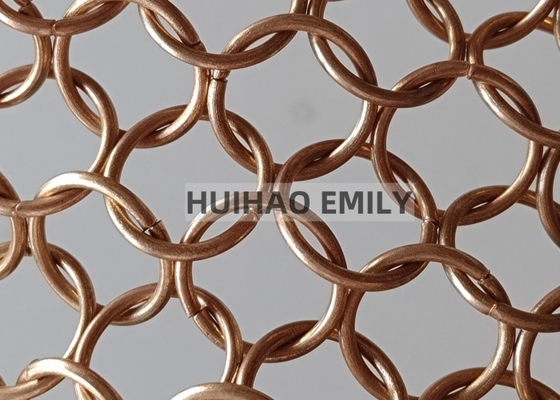

Architectural Chainmail Metal Mesh Drapery consists of linked metal rings that create supple and free-flowing sheets. Unlike individually-welded rings, this linked pattern allows for easy passage through the curtain while maintaining structural integrity.
This chain braided ring mesh serves as an elegant decorative element for both residential and commercial spaces. Its distinctive metal luster and shimmering effect create a unique environment, offering a sophisticated alternative to traditional cloth curtains. Additionally, it is nonflammable and easy to maintain.
Term | Type | Material | Wire Diameter | Outer Diameter | Weight/m² |
---|---|---|---|---|---|
XY-SS-053 | Weld | Stainless steel | 0.53mm | 3.81mm | 3.2kgs |
XY-SS-080 | Weld | Stainless steel | 0.80mm | 7.00mm | 2.8kgs |
XY-SS-150 | Weld | Stainless steel | 1.50mm | 15.00mm | 4.8kgs |
XY-CS-150 | Weld | Copper/brass | 1.50mm | 15.00mm | 5.5kgs |
XY-SS-200 | Weld | Stainless steel | 2.0mm | 20.00mm | 6.8kgs |
XY-CS-200 | Weld | Copper/brass | 2.0mm | 20.00mm | 7.8kgs |
Term | Type | Material | Wire Diameter | Outer Diameter | Weight/m² |
---|---|---|---|---|---|
XY-SS-100 | Non-welding | Stainless steel | 1.0mm | 8.00mm | 4.7kgs |
XY-MS-100 | Non-welding | Mild steel | 1.0mm | 8.00mm | 4.6kgs |
XY-SS-120 | Non-welding | Stainless steel | 1.2mm | 10mm | 4.8kgs |
XY-CS-120 | Non-welding | Mild steel | 1.2mm | 10mm | 5.5kgs |
XY-SS-150 | Non-welding | Stainless steel | 1.5mm | 15mm | 4.8kgs |
XY-CO-150 | Non-welding | Mild steel | 1.5mm | 15mm | 5.5kgs |
XY-SS-200 | Non-welding | Stainless steel | 2.0mm | 20mm | 6.8kgs |
XY-CO-200 | Non-welding | Mild steel | 2.0mm | 20mm | 7.8kgs |

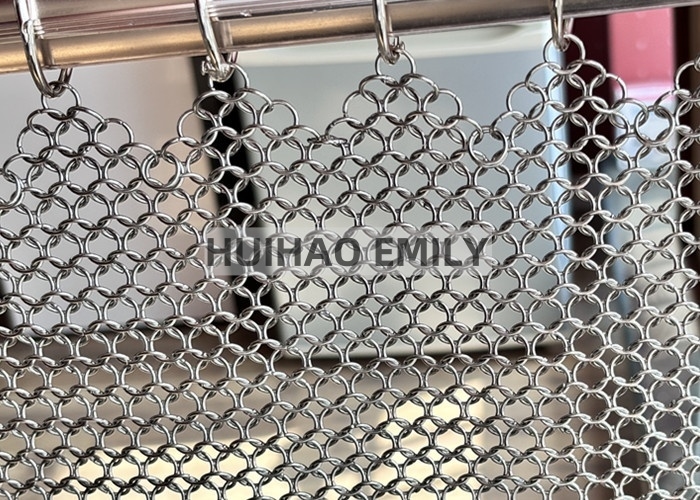

Ring mesh drapes can be hung by any competent installer from strong, conventional track using carriers with integral hooks. Choose from these 5 methods:
Manufactured with stainless steel, brass, copper, or low carbon steel wire, our chainmail ring wire mesh offers both durability and aesthetic appeal. The stainless steel versions provide long-lasting performance, while copper and brass options offer beautiful surfaces for decorative applications.
Common applications include:
