SS304 Lacing Anchor For Reusable Insulation Pad

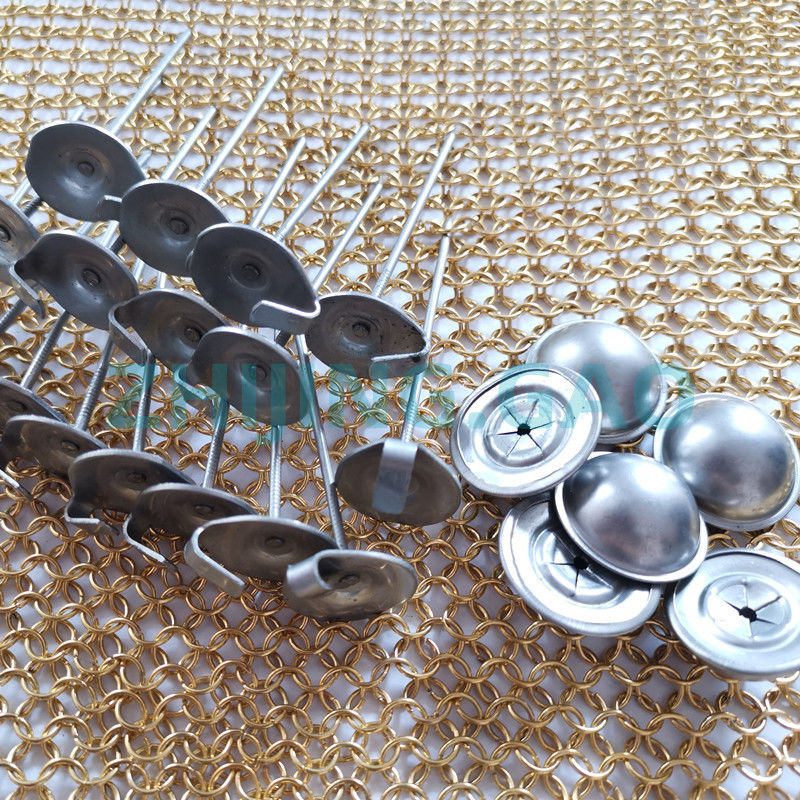

LACING anchor fastener is a insulation hanger that is fabricated by a round or rectangular hook attached a pin, it is used for fasten the insulation blanket or removable cover. Press the pin through insulation and put the self-locking washer onto the pin, bend over or clip off the pin. The insulation material can be laced by hook with a tie wire.

• Name: Lacing hangers, lacing anchors
• Material: stainless steel 304/316 in common
• Hangers thickness: 14 GA, 12GA, In common
• Hangers length: 63mm,114mm in common, or customized length
• Lacing anchor types: US standard, EU standard and AU standard
• Head types: 22m round head hook and 30mm round head hook

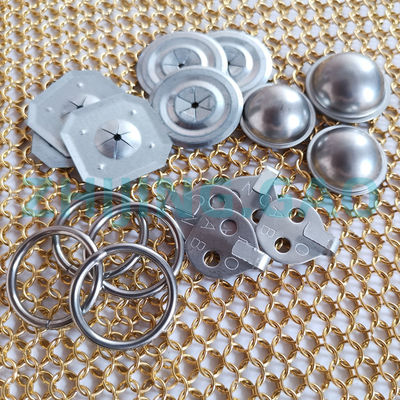

• Other parts: self speed clips, dome cap washer, Lacing wire, lacing ring, lacing hook and lacing washer
• Washers size: 22mm,25mm,30mm in common

• Rooftop insulation (can be applied under shingles)
• Process piping and tanks
• Petrochemical processing
• Refineries and manufacturing plants
• Hot and cold food processing
• Wine tank insulation
• Retort ovens
• Refrigerated rooms and buildings
• Heat conservation applications
• Boats and ships

1. Prepare the insulation blanket or removable cover
2. Press the lacing anchor through the insulation
3. Press the self locking washer into the pin to fasten the insulation
4. Bend over or clip off the pin
5. Install the insulation blanket or removable cover
6. Lace the hook by lacing tie in order to fasten the insulation
