Self Stick Insulation Support Nail With Self Locking Washer

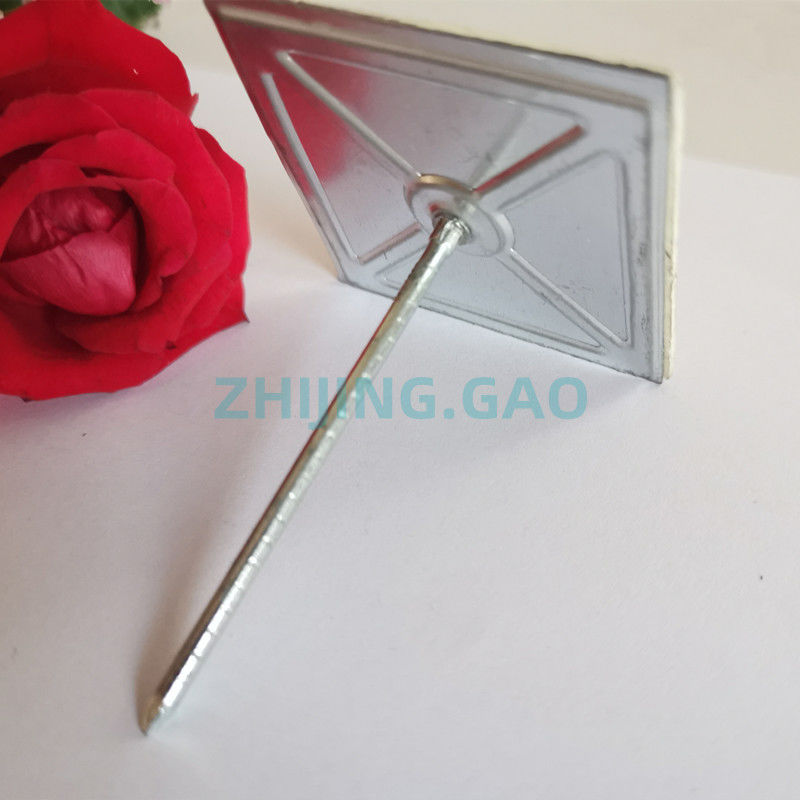

Large Image : Self Stick Insulation Support Nail With Self Locking Washer

Product Details:

Place of Origin:	China
Brand Name:	HUIHAO KASITE
Certification:	ISO9001-2015
Model Number:	SA-50

Payment & Shipping Terms:

Minimum Order Quantity:	10000 sets Self Stick Insulation Support Nail
Price:	USD0.1/SET
Packaging Details:	BAG + CARTON+PLATE for Self Stick Insulation Support Nail
Delivery Time:	7 WORK DAYS
Payment Terms:	L/C,T/T
Supply Ability:	500000 sets Self Stick Insulation Support Nail per 30 days

Contact Now

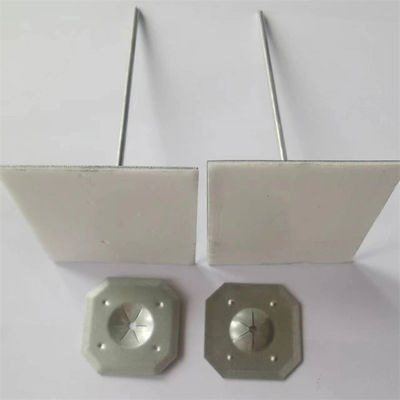

Self Stick Insulation Support Nail With Self Locking Washer

Description

Name:	Insulation Support Nail	Type:	Self Adhesive Pin
Base Size:	2 Inches Square Type	Nail Length:	25 Mm -280 Mm
Nail Dia:	2.7 Mm , 3 Mm	Finished:	Copper Coated, Zinc Coated
Install:	Self Locking Clips	Factory:	Huihao Hardware
Highlight:	air duct insulation fastener , self stick insulation fastener , zinc coated insulation fastener

Self Stick Insulation Support Nail With Self Locking Washer

Product Specifications

Attribute	Value
Name	Insulation Support Nail
Type	Self adhesive pin
Base size	2 inches square type
Nail length	25 mm - 280 mm
Nail diameter	2.7 mm, 3 mm
Finished	Copper coated, zinc coated
Install	Self locking clips
Factory	Huihao hardware

Product Features

Pin diameter options: galvanized annealed steel wire and aluminum wire
Stainless steel soft wire available for custom orders
Maximum pin length: 300mm
Customizable base size, pin diameter, and length
Zinc coated surface treatment for mild steel material
Special materials available for customization

Installation Guide

Best results when ambient temperature is above 40°F at time of application
Remove release paper from base plate and apply to suitable flat surface
Use firm, straight forward pressure (do not twist)
Do not remove release paper until ready to apply hanger
Insulation may be applied immediately after securing hanger
Store at 75°F and 50% relative humidity with stock rotation
Shelf life: 2 years when stored as recommended

Performance Tape Specifications

Polyethylene foam with aggressive pressure sensitive rubber resin adhesive
Service temperature: -40°C to +70°C
Highly resistant to abrasion, corrosion, and moisture
Complies with European Directive 2000/53 (Lead, Chromium VI, Mercury, Cadmium free)
10 minutes 180° peel adhesion: 30 N/25mm
500 hour static shear (stainless steel): 0.8 kg/cm³

Standard Specifications

Nail diameter	Base size	Common nail lengths	Fixed parts
12 Ga (2.7mm or 0.106")	2"×2" base (50mm×50mm)	1"	Self locking type washers Speed clips Dome cap washer
12 Ga (2.7mm or 0.106")	2"×2" base (50mm×50mm)	1 1/2"
12 Ga (2.7mm or 0.106")	2"×2" base (50mm×50mm)	1 5/8"
12 Ga (2.7mm or 0.106")	2"×2" base (50mm×50mm)	3 1/2"
12 Ga (2.7mm or 0.106")	2"×2" base (50mm×50mm)	4 1/2"
12 Ga (2.7mm or 0.106")	2"×2" base (50mm×50mm)	5 1/2"
12 Ga (2.7mm or 0.106")	2"×2" base (50mm×50mm)	6 1/2"

Why Choose Our HUIHAO Insulation Fasteners?

1. Premium quality materials for all insulation fasteners

2. Copper plating, zinc coating, and phosphating pretreatment

3. Multi-station cold forging for superior mechanical properties

4. Automatic riveting machine installation

5. Rust prevention suitable for long sea shipments

6. Short delivery times through efficient production management
