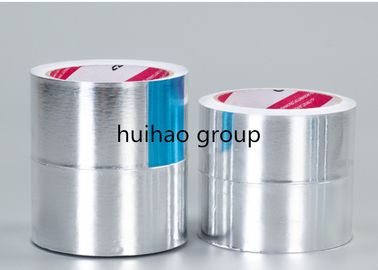

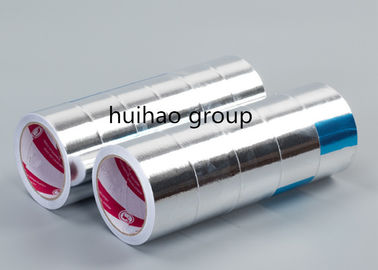

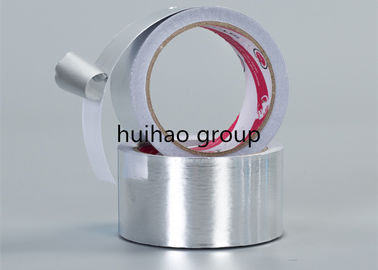

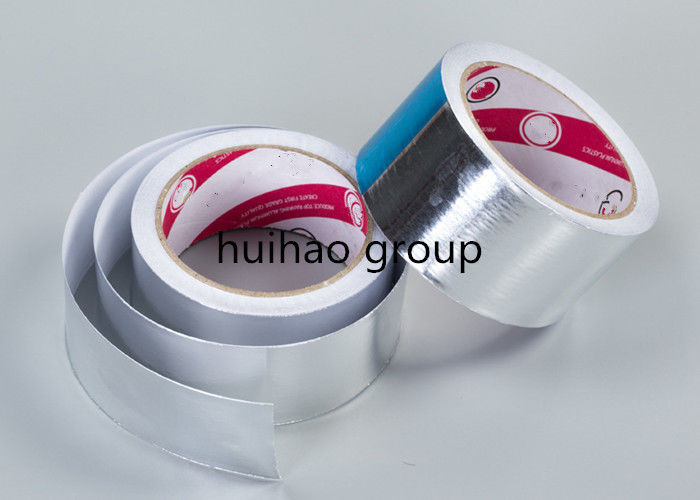

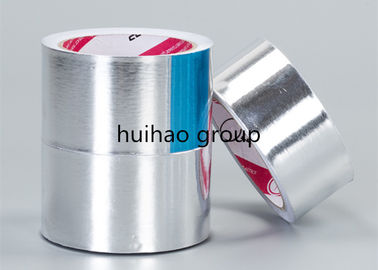

Self Adhesive Aluminum Foil Tape For Insulation Material

Large Image : Self Adhesive Aluminum Foil Tape For Insulation Material

Product Details:

Place of Origin:	China
Brand Name:	huihaoKASITE
Certification:	ISO9001-2015
Model Number:	Aluminum Foil Tape

Payment & Shipping Terms:

Minimum Order Quantity:	5000m
Price:	USD3
Packaging Details:	6rolls/shrink,36rolls/carton,72rolls/carton. Individual shrink or as customer's requirement
Delivery Time:	8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	10000 rolls per 5 days

Contact Now

Self Adhesive Aluminum Foil Tape For Insulation Material

Description

Material:	Aluminum Foil	Thickness:	50micr-60micr
Width:	12-1280mm	Length:	20-4000m
Small Order:	Available	Sample:	Support
Highlight:	insulation hangers , insulation wall plugs

Self Adhesive Aluminum Foil Tape For Insulation Material

Product Specifications

Attribute	Value
Material	Aluminum foil
Thickness	50micr-60micr
Width	12-1280mm
Length	20-4000m
Small Order	Available
Sample	Support

Product Description

Waterproof Aluminum Foil Tape is constructed with heavy aluminum facing and an extra thick rubberized asphalt-based adhesive system. This tape is recommended for most types of roofs, windows, and flashing applications including:

Trailers
RV's
Mobile homes
Industrial buildings
Roof awnings
Truck Trailers
Chimney Flashing
Roof to Wall Flashing
Ridge Flashing
Window frames of glass, metal, plastic
Wood including OSB
Clay and Cement Roof Tiles

Technical Specifications

Part No.	Adhesive	Foil Thickness	Total Thickness
H18	Solvent/water acrylic	18mic	50mic
H22		22mic	55mic
H26		26mic	60mic
H30		30mic	65mic
H36		36mic	70mic
H40		40mic	75mic
H50		50mic	85mic
H100		100mic	150mic
H125		125mic	175mic
H18M	Hot melt	18mic	50mic
H22M		22mic	55mic
H26M		26mic	60mic
H30M		30mic	65mic
H40M		40mic	75mic
H50M		50mic	85mic

Product Test Report

Item	Measurement	Test Method
Tensile Strength	0.7kgf/cm2	JIS K 6301 500MM/MIN
Water Resistance	No deterioration, No fat separation, Water absorption＞0.028	20℃ water, 168 Hr
Heat Resistance	No hanging, No fat separation, No deterioration	5mm5mm100mm on Vertical steel plate, 110℃ 168Hr
Holding Power	Slide is 0.5mm	2mm50mm50mm on Vertical steel plate, 100℃ 168Hr
Cold Resistance	No cracking, no slide	5mm5mm100mm on Vertical steel plate, -30℃ 24Hr
Offensive Smell	No offensive smell	10g in 1 liter glass tubes, 24Hr

Key Features

Strong adhesion
Waterproof
Broad temperature range
High efficient sorting packaging in production control
Packing carton boxes with automatic sealing machine

Applications

This aluminum foil tape adheres to all types of surfaces. It is excellent for heavy-duty packaging, bundling, sealing, mending, binding books, carpet seams, waterproof packaging, air-conditioning pipes, and surface protection. The tape tears straight and is curl-resistant. It has good plasticity and better insulation than fiberglass and fiber fabric, resin and insulated materials.
