Railing Infill Wire Mesh For Stairs Wire System

Railing Infill Wire Mesh For Stairs Wire System
Railing Infill Wire Mesh For Stairs Wire System Railing Infill Wire Mesh For Stairs Wire System Railing Infill Wire Mesh For Stairs Wire System Railing Infill Wire Mesh For Stairs Wire System

Large Image :  Railing Infill Wire Mesh For Stairs Wire System

Product Details:
Place of Origin: China
Brand Name: huihaokasite
Certification: ISO9001-2015
Model Number: Railing Infill Wire Mesh
Payment & Shipping Terms:
Minimum Order Quantity: 30 square meters
Price: USD55/M2
Packaging Details: plastic paper per piece, 50 pieces per wooden case
Delivery Time: 5 work days
Payment Terms: L/C,T/T,paypal,alibaba
Supply Ability: 1000 square meters per 20 days

Railing Infill Wire Mesh For Stairs Wire System

Description
Name: Railing Infill Wire Mesh Material: Ss
Frame Material: Aluminum Frame Width: 25mmx25mm
Warp Pitch: 13mm Weft Pitch: 80mm
Samll Order: Available Sample: Available
Highlight:

stainless steel wire cloth

,

monel wire mesh

Railing Infill Wire Mesh For Stairs Wire System
Product Specifications
Attribute Value
Name Railing Infill Wire Mesh
Material Stainless Steel
Frame Material Aluminum
Frame Width 25mm × 25mm
Warp Pitch 13mm
Weft Pitch 80mm
Small Order Available
Sample Available
Product Features
  • Pattern design support according to application requirements
  • Frame design support for proper installation
  • Multiple surface treatment options including PVDF, PVD, and Spraying
  • Complete installation accessories including screws, wall anchors, tracks, and bolts
  • Available in various materials: stainless steel, copper, bronze, brass, aluminum, and alloys
  • Multiple weave types: plain weave, twill weave, dutch weave, and custom woven methods
Architectural Metal Mesh Specifications
Material Stainless Steel Opening Area 71.2%
Warp Diameter 3mm Mesh Thickness 7mm
Warp Pitch 13mm Surface Clean & oil-free
Weft Diameter 2mm × 3 Max Height 4000mm
Weft Pitch 80mm Max Width 8000mm
Weight 6.5kgs/m² Application Interior / Exterior
Architectural Metal Mesh Details

Material: Stainless Steel Wire, Aluminum Alloy, brass, copper or other alloy materials.

Color Options: Silver, black, copper, yellowish, dark yellow, brass, dark brass, purple bronze, gray, etc.

Characteristics: Excellent flexibility, strength, unique texture, variety of colors, and durability.

Applications: Widely used as curtains, screens for dining halls, hotel partitions, ceiling decorations, animal containment, and security fencing.

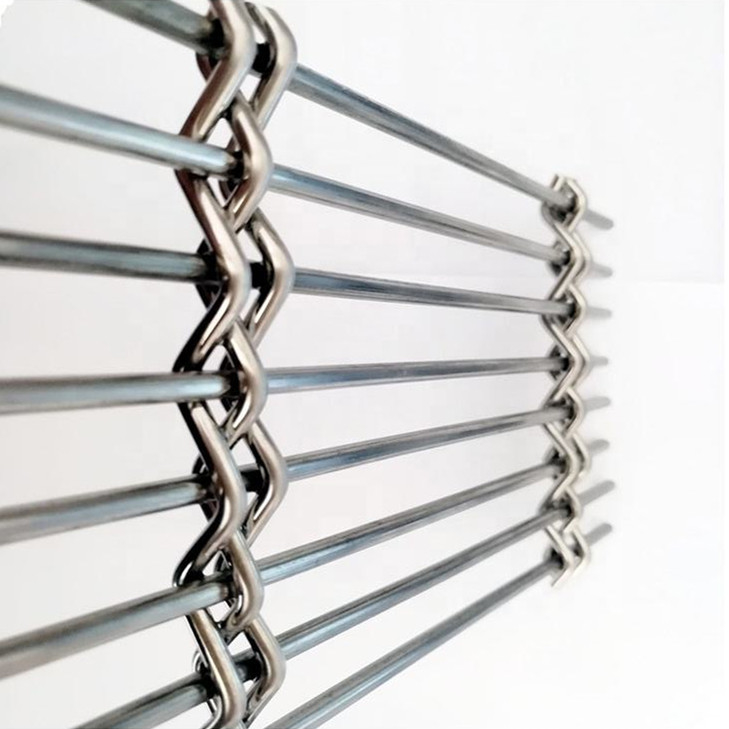

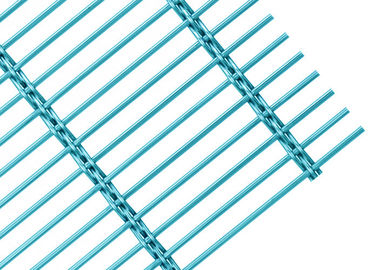

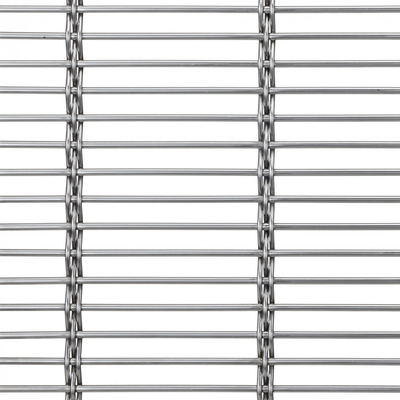

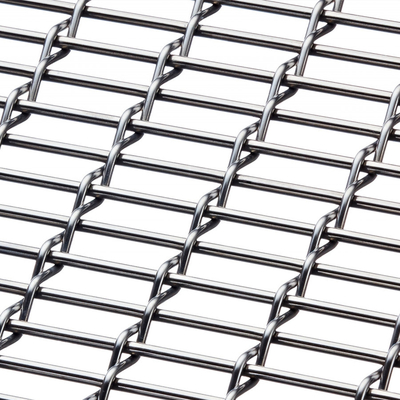

Product Images
Railing Infill Wire Mesh For Stairs Wire System 0 Railing Infill Wire Mesh For Stairs Wire System 1 Railing Infill Wire Mesh For Stairs Wire System 2
Shipping Information

Overseas warehouse services available with double clearing tax and door-to-door delivery, primarily serving the United States, Australia, and Europe. Other regions pending development.
