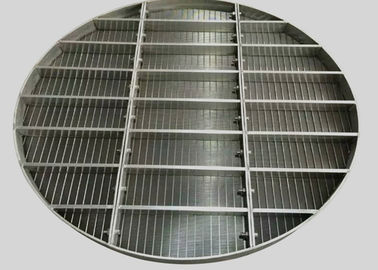

Media Support Grids Fabricated With Wedge Wire

Large Image : Media Support Grids Fabricated With Wedge Wire

Product Details:

Place of Origin:	China
Brand Name:	HUIHAOKASITE
Certification:	ISO9001-2015
Model Number:	Media Support Grids

Payment & Shipping Terms:

Minimum Order Quantity:	20 pcs
Price:	USD28
Packaging Details:	standard packing, wooden case
Delivery Time:	8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	2000pcs per 28 days

Contact Now

Media Support Grids Fabricated With Wedge Wire

Description

Name:

Media Support Grids

Slot:

0.7mm, 0.75mm, 0.8mm, 1.0mm, Customized

Diameter:

200mm To 2500mm

Support Bar:

3mmx5mm

Highlight:

johnson wedge wire screens

johnson well screen

Media Support Grids Fabricated With Wedge Wire

Name

Media Support Grids

Slot

0.7mm, 0.75mm, 0.8mm, 1.0mm, customized

Diameter

200mm To 2500mm

Support Bar

3mmx5mm

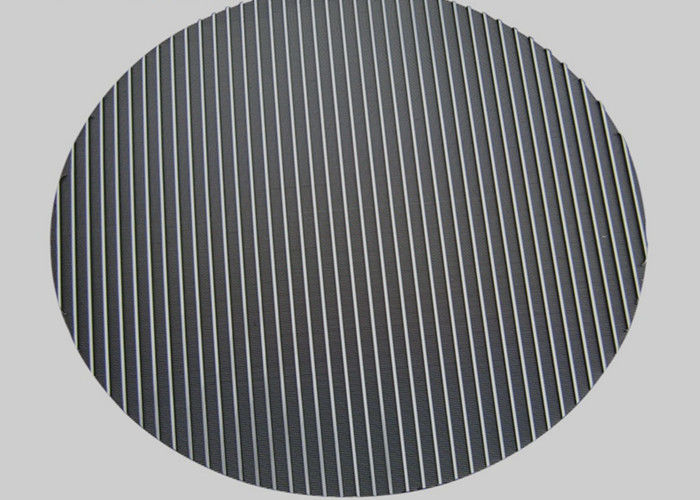

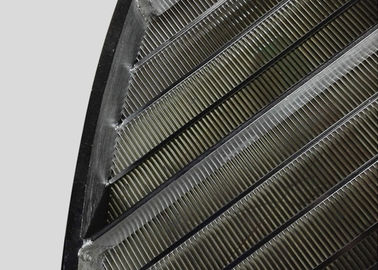

Details of Media Support Grids Sieve

Wedge wire grids have maximum design flexibility, can be constructed in a wide variety of shapes and sizes from a variety of corrosion resistant alloys such as type 304, 316, 316L, 321, and 410S stainless steels, as well as nickel alloys such as C-276. Any process or vessel requirements can be accommodated, such as vertical or horizontal vessels, chordal or pie-shaped screen segments, with or without manway or other ports in the screens.

Feature	Description
V-Shaped Slots	Openings shaped like a "v" that open toward the inside of the well tend to allow the particles that are just barely smaller than the width of the slot pass. In other shapes of openings, these particles would get caught in the screen and clog it.
Continuous Slots	The special design gives continuous slot opening across the periphery and length of screen.
Very Large Open Area	This design gives continuous slot and hence the% open area for water to enter is more than 2 times that of conventional slotted pipes of any size and slot opening. This allows more water to enter at much lesser frictional head loss and the efficiency of tube well is improved appreciably.
Better Sand Filtration	Due to specialize manufacturing process, wide range of slot opening is available down to 0.15mm to allow proper slot selection depending upon the size of sand in particular area. This gives better sand control and reduced pump maintenance and longer tube well life.
Energy Saving	Due to reduce frictional head losses and increased discharge, the pump load reduces the power required to pump same quantity of water. Power saving of around 20-25% is observed.

Specification of Media Support Grids Sieve

Normal Name	Lauter Tun Screen, Mash Tun Screen, False Bottom Screen, Etc.
Diameter Range (MM)	200mm To 2500mm. Diameter Customized
Normal Diameter (MM)	29", 30", 35", 37", 40", 45", 47", 59", 63", 74", Etc
Normal Slot (MM)	0.7mm, 0.75mm, 0.8mm, 1.0mm, customized
Normal Thickness (MM)	8.5mm, 20mm. 25mm, 30mm, 40mm, 50mm, Customized.
Sections & shape	1 Cycle, 2 PCS, 3 PCS, 4 PCS, 6 PCS, 8 PCS. Customized
Wedge wire (MM)	2x4MM Wedge Wire, 3x5MM Wedge Wire
Support Rod (MM)	3x5MM V shaped Support Rod, 3x5mm Square Support Rod
Strengthen Rod (MM)	Thickness and Height according to the diameter and screen thickness
Note	Usually customized.
