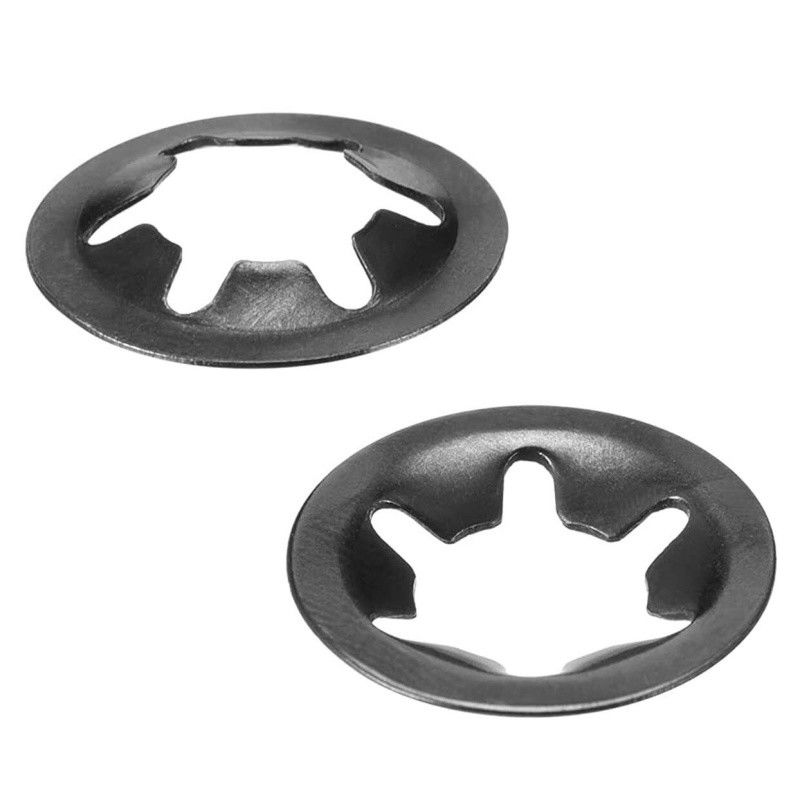

Internal Tooth M3 Star Locking Washer With Black Oxide Finish

Large Image : Internal Tooth M3 Star Locking Washer With Black Oxide Finish

Product Details:

Place of Origin:	CHINA
Brand Name:	HUIHAOKasite
Certification:	ISO9001-2015
Model Number:	M3 Star locking washer

Payment & Shipping Terms:

Minimum Order Quantity:	10000PCS Internal Tooth round speed clip
Price:	USD0.06/PC
Packaging Details:	SMALL PP BAG OR BOX, THEN PUT INTO CARTON
Delivery Time:	7 work days
Payment Terms:	L/C,T/T,alipay
Supply Ability:	1000000 pcs Internal Tooth round speed clip per 30 days

Contact Now

Internal Tooth M3 Star Locking Washer With Black Oxide Finish

Description

Name:	M3 Star Locking Washer	Type:	Internal Tooth Round Speed Clip
Size:	M3	ID:	2.5MM
OD:	9MM	Material:	65Mn Metal Steel, Anti-Corrosion And Durable
Application:	Machinery Equipment, Industrial Production Of Shock Absorption And Insulation	Desinger:	Zhijing.gao13363891298
Highlight:	star locking washer m3 , black oxide finish star locking washer , m3 internal tooth starlock washers

Internal Tooth M3 Star Locking Washer With Black Oxide Finish

Product Specifications

Attribute	Value
Name	m3 star locking washer
Type	Internal Tooth round speed clip
Size	M3
ID	2.5MM
OD	9MM
Material	65Mn Metal Steel, Anti-Corrosion And Durable
Application	Machinery Equipment, Industrial Production Of Shock Absorption And Insulation

Product Features

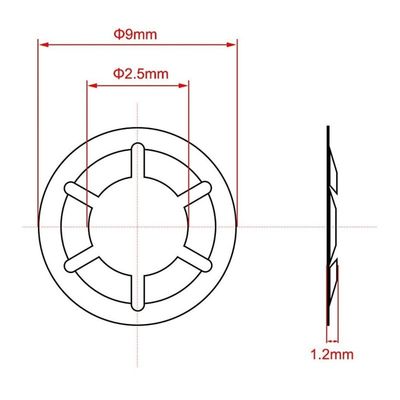

Size: M3 (I.D.: 2.5Mm, O.D.: 9Mm)
Made Of 65Mn Metal Steel, Anti-Corrosion And Durable
Great Corrosion Resistance For Machinery Equipment, Easy To Install
Provide Spring Force, Grip Sturdy, Create A Permanent Installation
Widely Used In Machinery Equipment, Industrial Production Of Shock Absorption And Insulation

Technical Specifications

size	2	3	4	5	6	8	10	12
d	MIX	1.9	2.9	3.9	4.9	5.9	7.9	9.9	11.9
MIN	1.8	2.75	3.75	4.75	5.75	7.75	9.75	11.75
dc	6	10	12	14	16	17.5	21	27
H	0.7	1.3	1.4	1.55	1.75	1.8	2.2	2.8
h (Average)	0.25	0.3	0.3	0.4	0.4	0.5	0.7	0.9
MIX	0.275	0.325	0.325	0.43	0.43	0.53	0.74	0.95
MIN	0.225	0.275	0.275	0.37	0.37	0.47	0.66	0.85

Notes:

The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

The size, color, printing word, etc is subject to the real product.

If the above link does not have the product that you want, please consult us and customize.

Product Images

We have Magnetic Powder Detector, Material Testing Machine, Metallographic Microscope, and other testing instruments to guarantee product high quality and beautiful appearance. The quality control is strictly performed from buying raw materials in warehouse to different machining procession and to final packing.
