Galvanized Steel Perforated Grtp Strut Grating For Stair Tread

Galvanized Steel Perforated Grtp Strut Grating For Stair Tread

Galvanized Steel Perforated Grtp Strut Grating For Stair Tread

Galvanized Steel Perforated Grtp Strut Grating For Stair Tread

Large Image : Galvanized Steel Perforated Grtp Strut Grating For Stair Tread

Product Details:

Place of Origin:	China
Brand Name:	Huihao
Certification:	iso9001-2008
Model Number:	Grtp Strut Grating

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Packaging Details:	into wodden cases or Packaging as the customer's request
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union,paypal
Supply Ability:	150000pcs per year

Contact Now

Galvanized Steel Perforated Grtp Strut Grating For Stair Tread

Description

Material:	Galvanized Steel Or Aluminum	Width:	9-1/4"
Depth:	2"-4"	Length:	Less Than 6 Meters
Installation Service:	Fixing Accessories	Small Order:	Support
Stock Quantity:	20 Pieces	Custom:	Support
Highlight:	aluminum safety grating , aluminum plank grating

Galvanized Steel Perforated Grtp Strut Grating For Stair Tread

Product Specifications

Attribute	Value
Material	Galvanized Steel Or Aluminum
Width	9-1/4"
Depth	2"-4"
Length	less than 6 meters
Installation Service	fixing accessories
Small Order	support
Stock Quantity	20 pieces
Custom	support

Product Description

Galvanized Steel Perforated Grtp Strut Grating For Stair Tread With Diamond Hole

Introduction To The Perforated Grtp Strut Grating With Diamond Holes

The widths of the Perforated Grtp Strut Grating is 9-1/4"

The lengths can be as your requirement. Common length less than 6 meters

Material: galvanized steel, stainless steel, aluminum, hot roll, cold roll
Hole shape: crocodile mouth, diamond hole
Production technique: punching, cutting, bending, welding

Specification of Galvanized Steel Perforated Grtp Strut Grating

2 Diamond / 9-1/4" Width
Diamond Pattern	Width	Channel Depth	Galvanized	Aluminum
2 Diamonds	9-1/4"	2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	9-1/4"	2-1/2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	9-1/4"	3"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	9-1/4"	4"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")

Applications

It is widely used in industry and commerce, for platforms, mezzanines, racking, shelving, billboard catwalks, highway signs, rooftop walkways, crossovers and ramps, vented vertical partitions, and other places.

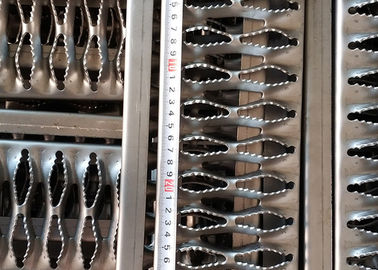

Galvanized Steel Perforated Grtp Strut Grating For Stair Tread 0

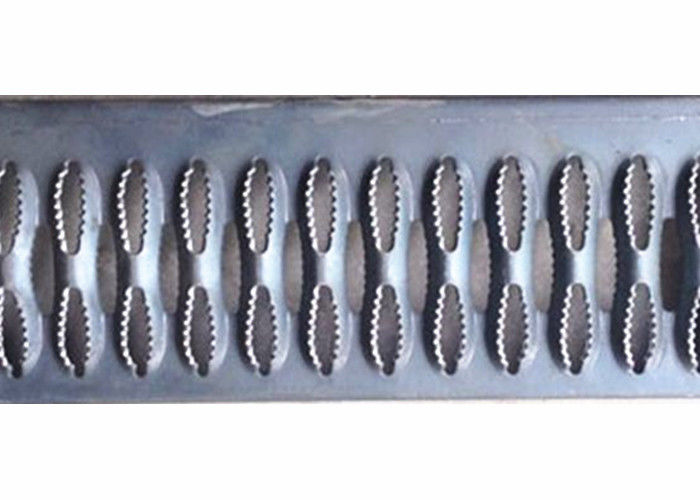

Galvanized Steel Perforated Grtp Strut Grating For Stair Tread 1

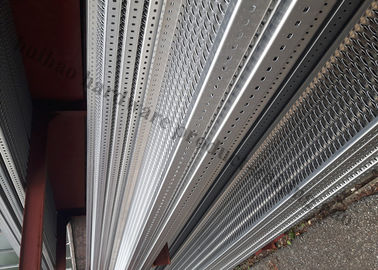

Galvanized Steel Perforated Grtp Strut Grating For Stair Tread 2

Please email at david@huihaomesh.com for the price, samples, and catalog.
