Flexible Stainless Steel Rope Wire Mesh For Fencing

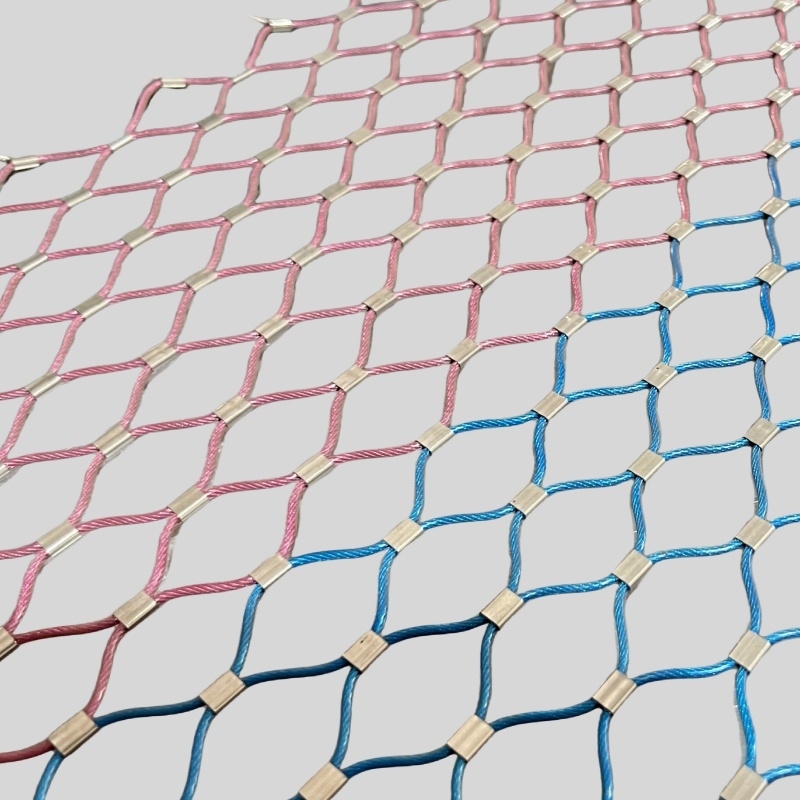

Large Image : Flexible Stainless Steel Rope Wire Mesh For Fencing

Product Details:

Place of Origin:	China
Brand Name:	Huihao
Certification:	ISO
Model Number:	wire rope mesh

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	USD45/M2
Packaging Details:	Packed in roll by paper tube,then kraft paper inside,at last plastic film outside and plywood box outside as the export package and we also could pack them
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union,Paypal
Supply Ability:	500 square meters per day

Contact Now

Flexible Stainless Steel Rope Wire Mesh For Fencing

Description

Product Name:	Stainless Steel Rope Mesh	Material:	SS304, 316
Wire Diameter:	1.2-4mm	Hole Shape:	Rhombus , Diamond
Rope Construct:	7 X 7 , 7 X 19 , 1 X 19	Weave Type:	Knotted,Ferruled
Highlight:	woven wire screen mesh , architectural steel mesh

Flexible Stainless Steel Rope Wire Mesh For Fencing

Product Specifications

Attribute	Value
Product Name	Stainless steel rope mesh
Material	SS304, 316
Wire diameter	1.2-4mm
Hole shape	Rhombus, Diamond
Rope construct	7 X 7, 7 X 19, 1 X 19
Weave type	Knotted, Ferruled

Detailed Specifications

Rope Construction	Rope Diameter (Inch)	Rope Diameter (mm)	Aperture (mm)	Breaking Force (kN)
7X19	1/8	3.2	120X208	7.38
7X19	1/8	3.2	100X173	7.38
7X19	1/8	3.2	90X156	7.38
7X7	3/32	2.4	100X173	4.18
7X7	3/32	2.4	90X156	4.18
7X7	3/32	2.4	80X139	4.18
7X7	3/32	2.4	70X121	4.18
7X7	5/64	2.0	100X173	3.17
7X7	5/64	2.0	90X156	3.17
7X7	5/64	2.0	80X139	3.17
7X7	5/64	2.0	70X121	3.17

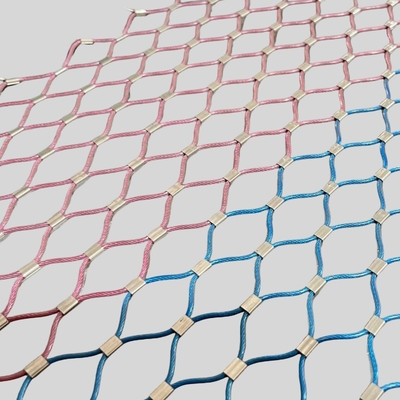

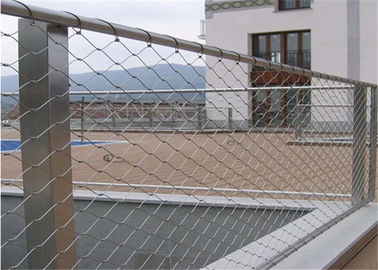

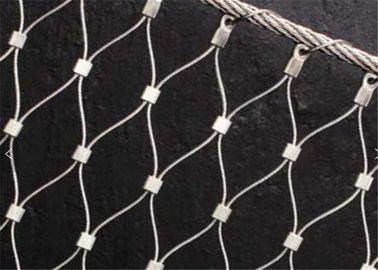

Product Images

Applications

Our flexible stainless steel wire cable mesh features rhombus-shaped openings with excellent flexibility, impact resistance, and breaking force. It withstands harsh weather conditions including rain, snow, and hurricanes.

Common applications include: Aviary mesh, bird netting, animal enclosures, zoo mesh, agricultural fencing, residential security, sports facilities, and fall protection systems.

Key Features

Light weight and high flexibility: Customizable width, length, rope diameter, and opening sizes available, including diagonal and irregular shapes for easy installation in various conditions.
High strength and durability: Ferrules combine stainless steel ropes firmly, creating a mesh resistant to fatigue and impact.
Excellent softness: 7×7 or 7×19 rope construction allows easy bending and folding for simple transportation and installation without risk of injury.
Superior corrosion resistance: Made from 304 or 316 stainless steel for rust resistance and a lifespan exceeding 30 years.
Attractive appearance: Diamond-shaped openings and ferrules provide excellent visibility and aesthetic appeal for architectural and decorative applications.
Low maintenance: Non-toxic material that won't rust or deform over time, requiring no maintenance after installation.
