Exterior Aluminum Expanded Mesh Facade With PVDF Colors

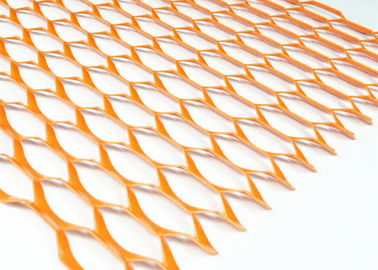

Large Image : Exterior Aluminum Expanded Mesh Facade With PVDF Colors

Product Details:

Place of Origin:	China
Brand Name:	HUIHAOKASITE
Certification:	ISO9001-2015
Model Number:	expanded mesh facades

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	usd45/pc
Packaging Details:	Slotted Hole Metal Screen Facade 1.packing on a pallet and then wrapped with plastic film 2.wrapped with plastic film then put into wodden cases
Delivery Time:	7 work days
Payment Terms:	L/C,T/T,Western Union,paypal
Supply Ability:	1000tons per year

Contact Now

Exterior Aluminum Expanded Mesh Facade With PVDF Colors

Description

Material:	Aluminum	Hole Type:	45mmx15mm
Thickness:	1.5mm,2mm	Size:	1200 X 2400mm
Finished:	PVDF	Application:	Facade Board
Highlight:	expanded metal mesh , perforated metal sheet

Exterior Aluminum Expanded Mesh Facade With PVDF Colors

Product Specifications

Attribute	Value
Material	aluminum
Hole type	45mmx15mm
Thickness	1.5mm, 2mm
Size	1200 x 2400mm
Finished	PVDF
Application	Facade board

Product Description

Decoration Aluminum Exterior Expanded Metal Mesh Facade Board With PVDF Colors is a sheet of material that contains a series of punched decorative holes. The shape of the hole is determined by the shape of the die. For expanded metal mesh with a decorative hole pattern, the die is shaped in various forms. Our decorative expanded metal mesh is available in a wide array of hole shapes, gauges and materials in straight and staggered patterns.

Material: Stainless steel; Plain steel; Galvanized steel; Aluminum; Brass, copper, phosphor bronze, etc.

Process: Stamping, leveling, cutting, bending, welding, shaping and surface treatment.

Detailed Specifications

LWD	SWD	Stand Width	Stand Thickness	Total Thickness	MS Wt/m²	Alu Wt/m²	Open Area
45mm	15mm	5mm	1.5mm	7mm	8.8kgs	4kgs	33%
45mm	15mm	5mm	2mm	7mm	11kgs	5kgs	33%
45mm	15mm	5mm	3mm	7mm	17kgs	6kgs	33%

Key Features

Continuity - the mesh is formed from a single piece of metal
Environment friendly - no wasteful of material
High strength - higher strength to weight ratio than metal sheet
Adherence - anti slip surface
Very good noise and fluid filtration - excludes & retains simultaneously
Good rigidity - premium reinforcement properties
Good conductivity - highly efficient conductor
Screening - practical and effective light filtration
Good resistance to corrosion

Applications

Fence, panels & grids
Walkways
Protections & barriers
Industrials & fire stairs
Metallic walls
Metallic ceilings
Grating & platforms
Metallic furniture
Balustrades
Containers & fixtures
Facade screening
Concrete stoppers
