European Designer Classical Woven Mesh for Kitchen Window Screen

European Designer Classical Woven Mesh for Kitchen Window Screen
European Designer Classical Woven Mesh for Kitchen Window Screen European Designer Classical Woven Mesh for Kitchen Window Screen European Designer Classical Woven Mesh for Kitchen Window Screen European Designer Classical Woven Mesh for Kitchen Window Screen European Designer Classical Woven Mesh for Kitchen Window Screen European Designer Classical Woven Mesh for Kitchen Window Screen European Designer Classical Woven Mesh for Kitchen Window Screen

Large Image :  European Designer Classical Woven Mesh for Kitchen Window Screen

Product Details:
Place of Origin: China
Brand Name: HUIHAOkasite
Certification: ISO9001-2015
Model Number: Flat Crimped Wire Grille
Payment & Shipping Terms:
Minimum Order Quantity: 30 square meters
Price: USD85/M2
Packaging Details: wooden box
Delivery Time: 6 work days
Payment Terms: L/C,T/T
Supply Ability: 1000 square meters within 20 days

European Designer Classical Woven Mesh for Kitchen Window Screen

Description
Name: Flat Crimped Wire Grille Material: Ss304
Surface Treatment: Burnished Brass Flat Diameter: 1.5mmx3.5mm
Flat Pitch: 10mm Weight: 8.6kgs/m2
Highlight:

architectural woven metal mesh

,

monel wire mesh

European Designer Classical Woven Mesh for Kitchen Window Screen
Product Specifications
Attribute Value
Name Flat Crimped Wire Grille
Material SS304
Surface Treatment Burnished Brass
Flat Diameter 1.5mm × 3.5mm
Flat Pitch 10mm
Weight 8.6kgs/m²
Technical Details
Material: Stainless Steel Opening Area: 42.2%
Flat Wire Diameter: 1.5×3.5mm Total Thickness: 3mm
Surface Treatment: Antique Plated, Burnished Brass Mesh Size: 10mm
Max Length: 3000mm Weight: 8.6kgs/square meters
Max Width: 1500mm Application: Ceiling Drapery, Hotel Facades
Material and Usage

Flat wire mesh made of carbon iron wire, galvanized steel wire or stainless steel wire 304/316.

Manufacturing Technique

Woven after wire being crimped. Crimped wire type is made by our company mold. Surface treatment is applied according to market requirements. We select different colors for different markets: gold and copper colors are popular in Middle East markets, while white, grey and black are most suitable for Southeast Asia markets.

Applications
  • Grille Applications: Designed to bear heavy loads, highly resistant to vibrations and shocks, damage resistant, and coated for long-term protection against corrosion.
  • Ceiling Drapery: Durable quality, excellent abrasion resistance, with sufficient open area for ventilation.
Huihao Advantages
  • Precision Manufacturing: Extensive experience controlling error ranges in flat wire mesh production using high-quality, precision molds.
  • Expert Support: Sales team with 10+ years experience, no language barriers, deep product knowledge, and 24-hour support.
  • Custom Packaging: Strong fumigation-free wooden trays and non-fragile cartons with custom logo options.
  • Surface Treatment Expertise: Mature technology for high-quality finishes at competitive costs, including popular fluorocarbon coating.
  • Flexible Ordering: Small orders accepted (minimum 20 square meters).
Product Image

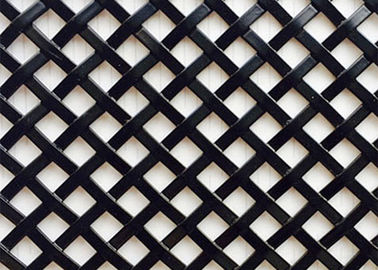

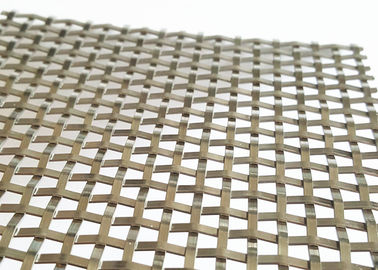

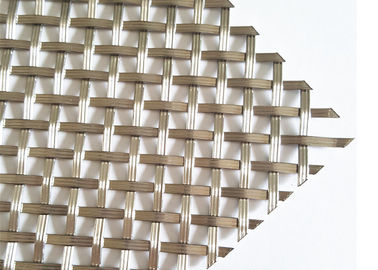

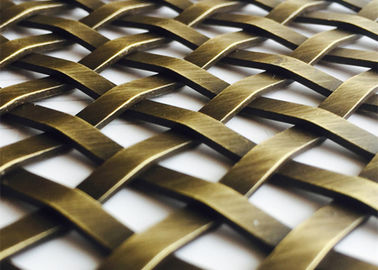

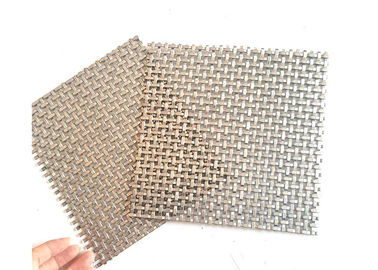

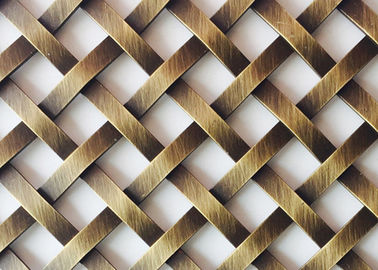

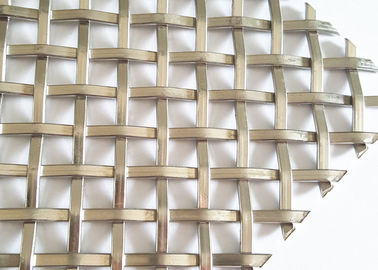

European Designer Classical Woven Mesh for Kitchen Window Screen 0
