Black Color Aluminum Mesh Panel For Partition Wall

Black Color Aluminum Mesh Panel For Partition Wall
Black Color Aluminum Mesh Panel For Partition Wall
Black Color Aluminum Mesh Panel For Partition Wall Black Color Aluminum Mesh Panel For Partition Wall Black Color Aluminum Mesh Panel For Partition Wall Black Color Aluminum Mesh Panel For Partition Wall

Large Image :  Black Color Aluminum Mesh Panel For Partition Wall

Product Details:
Place of Origin: China
Brand Name: HUIHAOKASITE
Certification: ISO9001-2015
Model Number: hh-175-4
Payment & Shipping Terms:
Minimum Order Quantity: 10 SQUARE METERS
Price: USD46
Packaging Details: Wooden or carton box as per your quantity or request For Wire Mesh Spray Black Decorative Fence
Delivery Time: 10 work days
Payment Terms: L/C,T/T
Supply Ability: 2000 M2 PER 28 DAYS
Contact Now

Black Color Aluminum Mesh Panel For Partition Wall

Description
Name: Black Color Aluminum Mesh Panel Material: Stainless Steel 304
Surface Treatment: Spraying Coated Color: Black
Wire: 1.2mm Aperture: 17.5mmx4mm
Max Witdth: 4000mm Manufacturer: Huihao Hardware Mesh
Highlight:

facade stainless steel architectural mesh

,

spray black stainless steel architectural mesh

,

facade architectural stainless steel wire mesh

Black Color Aluminum Mesh Panel For Partition Wall
Product Specifications
Attribute Value
Name Black Color Aluminum Mesh Panel
Material Stainless Steel 304
Surface Treatment Spraying Coated
Color Black
Wire 1.2mm
Aperture 17.5mm x 4mm
Max Width 4000mm
Manufacturer Huihao Hardware Mesh
Product Description

Our black-coated stainless steel architectural mesh panels offer both strength and aesthetic appeal for various architectural applications. Made from 80% recycled material, these panels can be customized to fit virtually any structure, indoors or outdoors.

Technical Specifications
Material: Stainless Steel Opening Area: 45.7%
Warp Diameter: 1.5mm x 2.5mm Mesh Thickness: 3mm
Warp Pitch: 17.5mm Surface: Painting, PVD, PVDF
Weft Diameter: 2mm Max Height: 1500mm
Weft Pitch: 4mm Max Width: 4000mm
Weight: 2.6kgs/m² Application: Interior
Customization Services
  • Frame design services (U type, L type, T type, square tube Type)
  • Pattern design according to project requirements
  • Drawing confirmation for every project
  • Various surface treatment options
  • Door-to-door shipping services
  • Laser cutting services
Applications
  • Modern cabinet designs
  • Fencing and partition walls
  • Restoration projects and antique auto grills
  • Stair railing infill and privacy screens
  • Wall dividers and cabinet screens
  • Interior or exterior lighting features
  • Fireplace screens and wall cladding

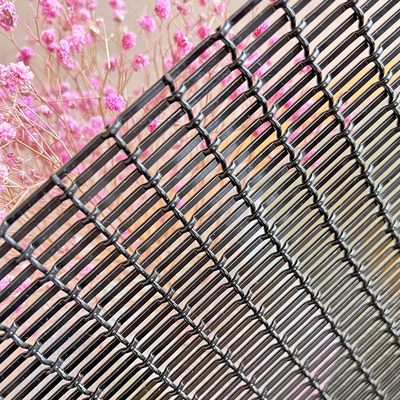

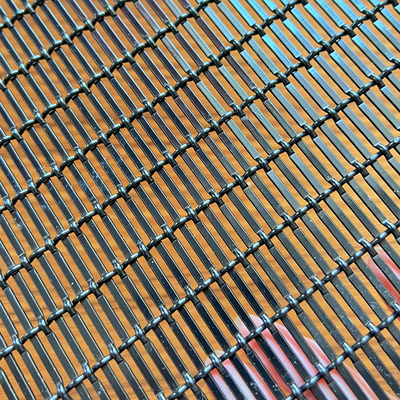

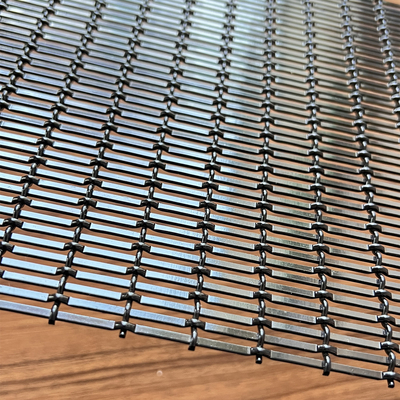

Product Images
Black Color Aluminum Mesh Panel For Partition Wall 0 Black Color Aluminum Mesh Panel For Partition Wall 1 Black Color Aluminum Mesh Panel For Partition Wall 2
How to Get a Quote
  1. Provide your requirements or application details
  2. Specify the size (length & width) and quantity needed
  3. Include your company name, address, phone number and email
  4. Indicate your preferred shipping method (air or sea)

We will provide a customized quotation based on your requirements or our professional suggestions.
