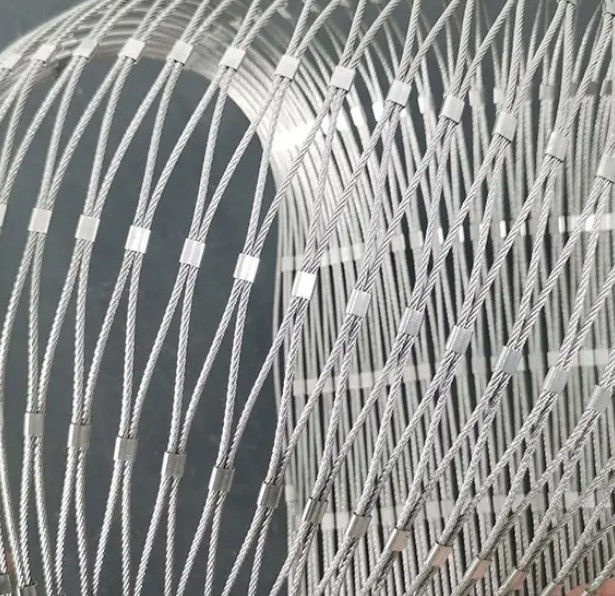

Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety

Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety
Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety
Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety

Large Image :  Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety

Product Details:
Place of Origin: CHINA
Brand Name: HUIHAO
Certification: ISO9001-2015
Model Number: Rope mesh
Payment & Shipping Terms:
Minimum Order Quantity: 100 square meter
Packaging Details: Packing in carton box or in wooden box ,or can be customized
Delivery Time: within 8 days
Payment Terms: L/C,T/T,Western Union,paypal
Supply Ability: 1000 square meter per month
Contact Now

Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety

Description
Product Name: SS Rope Mesh Material: SS 304, SS 316, SS 316 L , Etc
Rope Diameter: 1.2-4mm Mesh Size: 1''X1'',1.5''X1.5'', 2''X2'', Etc
Rope Constructions:: 7x7, 7x19 Mesh Type: Ferrule Type
Technique: Woven Length: Customized
Application: Protect Fence
Highlight:

Safety Rope Mesh

,

2 X 2 Rope Mesh

,

Architectural Rope Mesh

Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety
Product Specifications
Attribute Value
Product name SS Rope Mesh
Material SS 304, SS 316, SS 316 L, etc
Rope diameter 1.2-4mm
Mesh size 1''X1'', 1.5''X1.5'', 2''X2'', etc
Rope Constructions 7x7, 7x19
Mesh type Ferrule type
Technique Woven
Length Customized
Application Protect fence
Product Description

The Flexible rope mesh is a network structure composed of multiple strands of rope, woven by metal rope such as stainless steel rope or galvanized rope wire, which is widely used in many fields. It typically has elasticity and strength to withstand weight or tension.

  • Name: SS rope mesh, Flexible rope mesh, Safety rope mesh
  • Material: 303, 304L, 316, 316L Stainless steel wire
  • Size: Customized
  • Hole shape: Diamond hole
  • Wire diameter: 1mm~5mm or customized
  • Opening size: 2" x 2", 3" x 3", 4" x 4" or customized

Features: Hand knitting, Light weight, High-strength, Rustless, Eco-friendly, Safety, Long service life, Corrosion resistant, Easy assembly

Technical Specifications
Mesh No Rope Construction Rope Diameter Aperture Breaking Force
HUIHAO-01 7 × 19 1/8" (3.2mm) 120 × 208mm 7.38 kN
HUIHAO-02 7 × 19 1/8" (3.2mm) 100 × 173mm 7.38 kN
HUIHAO-03 7 × 19 1/8" (3.2mm) 90 × 156mm 7.38 kN
HUIHAO-04 7 × 7 3/32" (2.4mm) 100 × 173mm 4.18 kN
HUIHAO-05 7 × 7 3/32" (2.4mm) 90 × 156mm 4.18 kN
HUIHAO-06 7 × 7 3/32" (2.4mm) 80 × 139mm 4.18 kN
HUIHAO-07 7 × 7 3/32" (2.4mm) 70 × 121mm 4.18 kN
HUIHAO-08 7 × 7 5/64" (2.0mm) 100 × 173mm 3.17 kN
HUIHAO-09 7 × 7 5/64" (2.0mm) 90 × 156mm 3.17 kN
HUIHAO-10 7 × 7 5/64" (2.0mm) 80 × 139mm 3.17 kN
Product Images
Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety 0 Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety 1
Applications
  • Animal enclosure: For zoo animals and birds
  • Drop safety: Playground fall prevention
  • Mesh Bag: Anti-falling of various lighting fixtures such as searchlights, anti-cutting and anti-theft of backpacks, suitcases
  • Safety balustrade: For bridge, suspension bridge, stair railing, railing balustrade
  • Building decorative: For playground, amusement park, house, etc
  • Used for plant climbing, green wall
Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety 2 Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety 3
Packaging
  • We usually pack the rope mesh in rolls, then wrap it with plastic film, then put into the case
  • The rope mesh can also be packed according to specific requirements
Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety 4 Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety 5
Installation Accessories
Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety 6 Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety 7

Please email us at david@huihaomesh.com or contact us via WhatsApp: +86-18732199987 if you need samples or further details.
