7/8 Inch Galvanized Steel Insulation Dome Cap For Fixing Insulation Pins

7/8 Inch Galvanized Steel Insulation Dome Cap For Fixing Insulation Pins
7/8 Inch Galvanized Steel Insulation Dome Cap For Fixing Insulation Pins
7/8 Inch Galvanized Steel Insulation Dome Cap For Fixing Insulation Pins 7/8 Inch Galvanized Steel Insulation Dome Cap For Fixing Insulation Pins 7/8 Inch Galvanized Steel Insulation Dome Cap For Fixing Insulation Pins 7/8 Inch Galvanized Steel Insulation Dome Cap For Fixing Insulation Pins

Large Image :  7/8 Inch Galvanized Steel Insulation Dome Cap For Fixing Insulation Pins

Product Details:
Place of Origin: CHINA
Brand Name: HUIHAO
Certification: ISO9001
Model Number: insulation dome cap
Payment & Shipping Terms:
Minimum Order Quantity: 5000pcs
Packaging Details: 1.500pcs/1000pcs/5000pcs per carton 2. on pallet
Delivery Time: 15 days after confirm the order
Payment Terms: L/C,T/T,Western Union
Supply Ability: 100,000pcs per week
Contact Now

7/8 Inch Galvanized Steel Insulation Dome Cap For Fixing Insulation Pins

Description
Name: Insulation Dome Cap Material: Carbon Steel ，stainless Steel
Surface Treatment: Polish For SS，galvanized And Spray Paint For CS Type: Accept Special Style Of Customization
Height: According The Diameter Diameter: 22mm,27mm,32mm,38mm,40mm,50mm
Sample: Freely Application: For Fixing 2.0mm,2.7mm,3.0mm Insulation Pins
Highlight:

7/8 Inch Insulation Dome Cap

,

Fixing Pins Insulation Dome Cap

,

Galvanized Steel Insulation Dome Cap

7/8 Inch Galvanized Steel Insulation Dome Cap For Fixing Insulation Pins
Product Specifications
Name: Insulation dome cap
Material: Carbon steel, stainless steel
Surface treatment: Polish for SS, galvanized and spray paint for CS
Type: Accept special style customization
Height: According to diameter
Diameter: 22mm, 27mm, 32mm, 38mm, 40mm, 50mm
Sample: Freely available
Application: For fixing 2.0mm, 2.7mm, 3.0mm insulation pins
Product Description

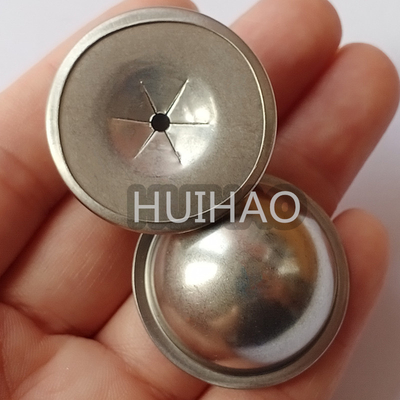

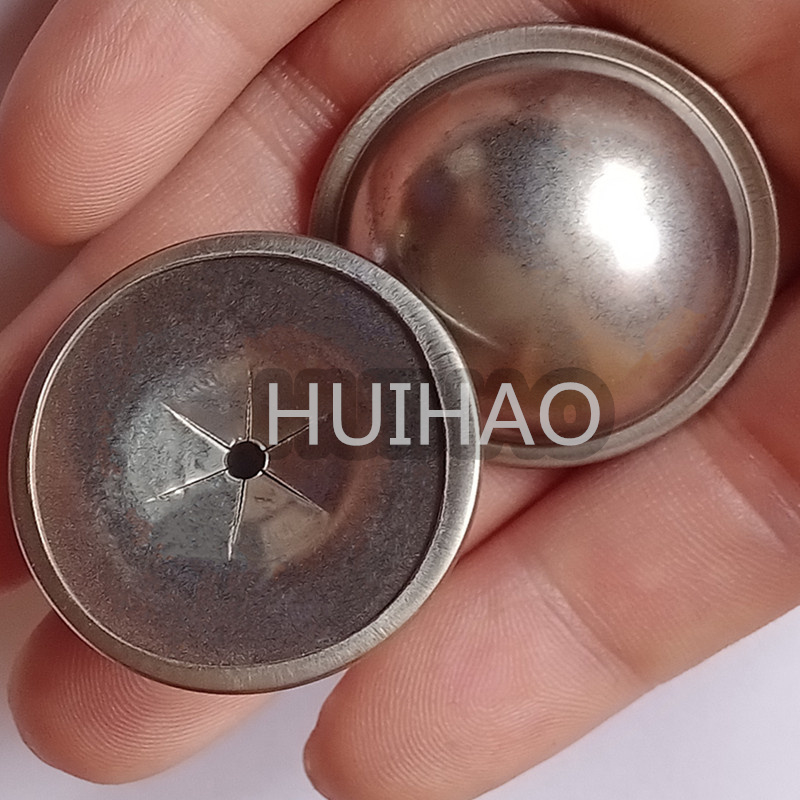

Stainless steel dome cap washers are designed to conceal the tips of lacing hook pins, anchor pins, quilting pins, or hangers during insulation installation. These self-locking washers provide both safety and aesthetic benefits when pins pierce through insulation materials.
Available Options
Materials: Stainless steel, galvanized steel, aluminum, PE cover
Surface treatments: Polish, galvanized, white or black spraying coated
Customization: Special styles available upon request with sample or drawing
Technical Specifications
Term Dimension Height Material Finished
HH-22 22MM 7MM G.S, MS, SS, AL MS: Zinc coated SS: POLISHED AL: white or black spraying coated
HH-25 25MM 8MM G.S, MS, SS, AL
HH-27 27MM 8MM G.S, MS, SS, AL
HH-30 30MM 10MM G.S, MS, SS, AL
HH-40 40MM 8MM G.S, MS, SS, AL
HH-50 50MM 12MM G.S, MS, SS, AL
Product Images
7/8 Inch Galvanized Steel Insulation Dome Cap For Fixing Insulation Pins 0 7/8 Inch Galvanized Steel Insulation Dome Cap For Fixing Insulation Pins 1
Usage Instructions
Dome caps are ideal for applications where appearance and safety are priorities. For optimal results:
  • Select pins that are 1/4 inch longer than the insulation thickness
  • Secure insulation with a self-locking washer first
  • Install the dome cap to cover the nail point
  • Silver dome caps are economical and can be painted to match any color
  • Black dome caps are preferred for black fiberglass acoustic board or black fabrics
  • White finish washers are used on ASJ faced material or white fabrics
7/8 Inch Galvanized Steel Insulation Dome Cap For Fixing Insulation Pins 2
Packaging Information
Diameter Quantity per bag Bags per carton Carton size
22mm 500 pcs 6 bags 41cm x 28cm x 17cm
27mm 300 pcs 6 bags 41cm x 28cm x 17cm
30mm 300 pcs 6 bags 41cm x 28cm x 17cm
40mm 200 pcs 5 bags 41cm x 28cm x 17cm
50mm 100 pcs 8 bags 41cm x 28cm x 17cm



7/8 Inch Galvanized Steel Insulation Dome Cap For Fixing Insulation Pins 3

Frequently Asked Questions
Q1: Are you factory or trader?
Yes, we manufacture what we sell.
Q2: How long is your delivery time?
Typically 7-15 days for shipment.
Q3: What determines your pricing?
Product size, material, surface treatment, and order quantity.
Q4: Can you provide samples?
Yes, we provide samples from stock. Custom samples may require mold fee, which is refundable upon mass order confirmation.
Q5: How do you ensure quality?
  • We provide CAD drawings
  • Our company is ISO certified
  • 20 years of manufacturing experience in this product category
About HUIHAO Company
HUIHAO specializes in manufacturing insulation fasteners and anchors, including various insulation pins and washers. We offer custom solutions based on your drawings and produce:
  • CD weld pins and lacing anchors
  • Bimetallic pins and cup head weld pins
  • Quilting pins and perforated base pins
  • Self adhesive pins and aluminum solar panel mesh clips
  • Various self-locking washers and dome caps
