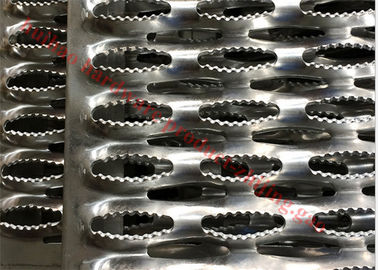

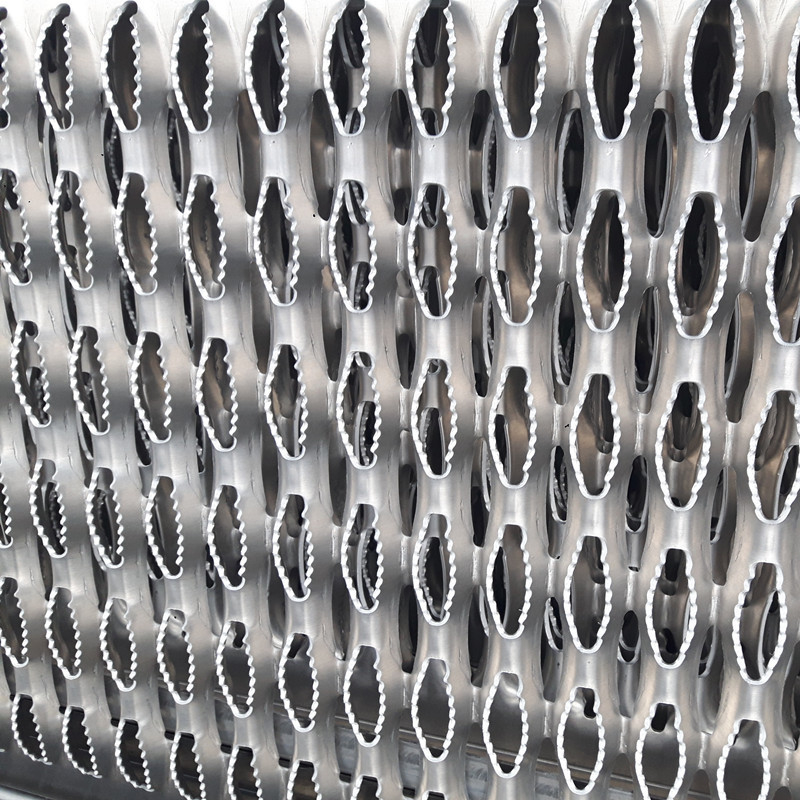

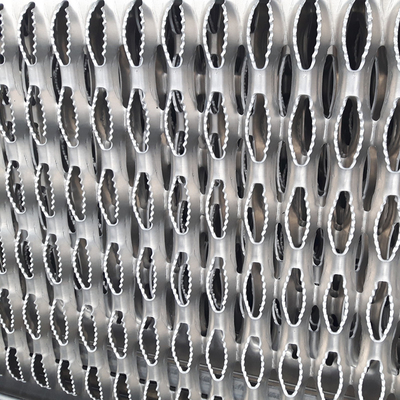

6M Channel Aluminum Plank Grating For Platforms

Large Image : 6M Channel Aluminum Plank Grating For Platforms

Product Details:

Place of Origin:	China
Brand Name:	HUIHAOKASITE
Certification:	ISO9001-2015
Model Number:	Safety Grating Walkway Channels

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	USD68/PC
Packaging Details:	Safety Grating Walkway Channels 1.packing on a pallet and then wrapped with plastic film, 2.wrapped with plastic film then put into wodden cases 3.Packaging as the customer's request
Delivery Time:	7 work days
Payment Terms:	L/C,T/T,Western Union,paypal
Supply Ability:	150000pcs per year

Contact Now

6M Channel Aluminum Plank Grating For Platforms

Description

Material:	Aluminum , Mild Steel, Stainless Steel	Standard Widths:	120 Mm / 180 Mm / 240 Mm / 300 Mm / 360 Mm / 420 Mm / 480 Mm
Standard Height:	40 Mm / 50 Mm / 75 Mm.	Maximum Lengths:	6000mm
Applicatiom:	Safety Grating Walkway Channels	Product Name:	Walkway Aluminum Plank Grating
Highlight:	aluminum safety grating , aluminum plank grating

6M Channel Aluminum Plank Grating For Platforms

Product Specifications

Attribute	Value
Material	Aluminum, mild steel, stainless steel
Standard widths	120 mm / 180 mm / 240 mm / 300 mm / 360 mm / 420 mm / 480 mm
Standard height	40 mm / 50 mm / 75 mm
Maximum lengths	6000mm
Application	Safety Grating Walkway Channels
Product name	Walkway aluminum plank grating

Product Description

Channel steel Safety Grating, Walkway aluminum plank grating process

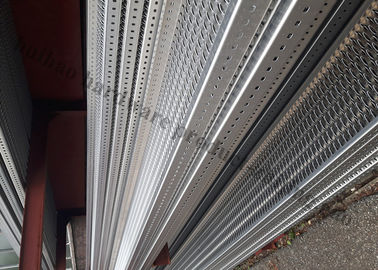

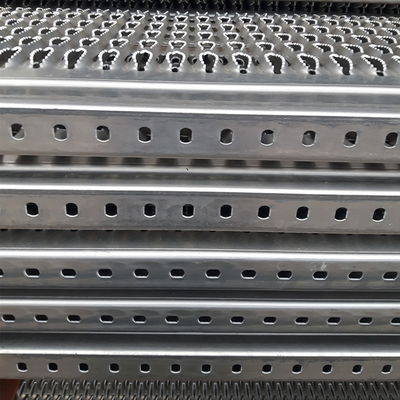

These are one-piece modules manufactured with integral side toe boards projecting above the walking surface of the flooring. Ideal for elevated applications such as suspended walkways or conveyor catwalks, these channels provide safe, economical, slip resistant options for long span walkways. Continuous spans can be accommodated by welding adjacent planks or specifying splice plates.

Technical Specifications

2 Diamond / 9-1/4" Width

Diamond Pattern	Width	Channel Depth	Galvanized	Aluminum
2 Diamonds	9-1/4"	2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
2 Diamonds	9-1/4"	2-1/2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
2 Diamonds	9-1/4"	3"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
2 Diamonds	9-1/4"	4"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")

3 Diamond / 13-3/4" Width

Diamond Pattern	Width	Channel Depth	Galvanized	Aluminum
3 Diamonds	13-3/4"	2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
3 Diamonds	13-3/4"	2-1/2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
3 Diamonds	13-3/4"	3"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
3 Diamonds	13-3/4"	4"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")

5 Diamond / 23-1/4" Width

Diamond Pattern	Width	Channel Depth	Galvanized	Aluminum
5 Diamonds	23-1/4"	2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
5 Diamonds	23-1/4"	2-1/2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
5 Diamonds	23-1/4"	3"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
5 Diamonds	23-1/4"	4"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")

Applications

It is widely used in industry and commerce, for platforms, mezzanines, racking, shelving, billboard catwalks, highway signs, rooftop walkways, crossovers and ramps, vented vertical partitions, and other places.
