50x50mm Base Plate Self Sticking Insulation Hanger Pins For Exterior Wall Insulation

50x50mm Base Plate Self Sticking Insulation Hanger Pins For Exterior Wall Insulation
50x50mm Base Plate Self Sticking Insulation Hanger Pins For Exterior Wall Insulation
50x50mm Base Plate Self Sticking Insulation Hanger Pins For Exterior Wall Insulation 50x50mm Base Plate Self Sticking Insulation Hanger Pins For Exterior Wall Insulation 50x50mm Base Plate Self Sticking Insulation Hanger Pins For Exterior Wall Insulation 50x50mm Base Plate Self Sticking Insulation Hanger Pins For Exterior Wall Insulation

Large Image :  50x50mm Base Plate Self Sticking Insulation Hanger Pins For Exterior Wall Insulation

Product Details:
Place of Origin: China
Brand Name: HUIHAO
Certification: ISO 9001-2015
Model Number: Self-sticking insulation hanger pins
Payment & Shipping Terms:
Minimum Order Quantity: 10,000 PCS
Price: USD0.02-0.1
Packaging Details: Insulation fixing pins 1. length less than 65mm,1000 pcs per carton ,64 per carton per pallet .2. length less than 120mm ,500 pcs per carton ,64 carton per pallet .3. others to be your requirement
Delivery Time: 7 days
Payment Terms: Western Union,T/T,L/C,Paypal
Supply Ability: 300,000 pcs per 20 days
Contact Now

50x50mm Base Plate Self Sticking Insulation Hanger Pins For Exterior Wall Insulation

Description
Product: Self-sticking Insulation Hanger Pins Base Plate: 50x50mm
Pin Diameter: 2.7mm 3mm Pin Length: 20mm-150mm
Accessories: Insulation Washer ,insulation Dome Cap Usage: Exterior Wall
Factory: Yes OEM/ODM: Support
Highlight:

50x50mm base self sticking insulation hangers

,

odm self sticking insulation hangers

,

20mm self adhesive pins for insulation

50x50mm Base Plate Self Sticking Insulation Hanger Pins For Exterior Wall Insulation
Product Attributes
Attribute Value
Product Self-sticking insulation hanger pins
Base plate 50x50mm
Pin diameter 2.7mm / 3mm
Pin length 20mm-150mm
Accessories Insulation washer, insulation dome cap
Usage Exterior wall
Factory Yes
OEM/ODM Supported
Product Overview

These rock wool metal stick pins are designed for easy installation of any type of insulation up to 3.5" thick on various surfaces including air ducts, metal buildings, concrete foundations, and wooden roofs. Perfect for securing fiberglass, rubber insulation blankets, or polystyrene boards.

Key Features
  • Convenient sticker backing for easy placement
  • Unique Easy-Peel adhesive backing design eliminates fumbling with release paper
  • Firm connection between pins and bases
  • Pins are soft and easy to bend for precise positioning
  • Excellent adhesion with double-sided adhesive property
Technical Specifications
Product size Pin length: 1-1/4" - 8"
Pin diameter: 12GA, 14GA
Base size: 2"x2"
Material Pin: Stainless steel, Aluminum
Base: Galvanized steel, stainless steel, aluminum
Surface treatment Galvanized, Polished
Length tolerance ±0.1mm
Supply capability 10,000 pieces/hour
Application Fixing various insulation blankets and boards
Product Images

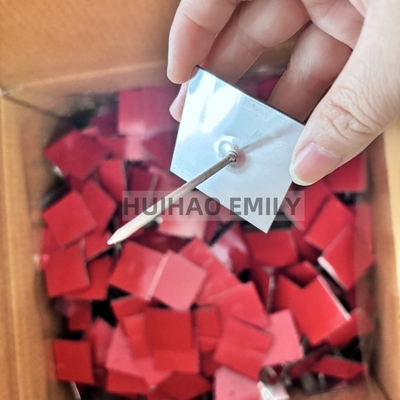

50x50mm Base Plate Self Sticking Insulation Hanger Pins For Exterior Wall Insulation 0
Recommended Installation Method
  1. Separation temperatures: 15 to 25℃
  2. Ensure working surface is clean, dry, and free of dust, grease, or oil
  3. Impale insulation immediately and secure firmly with fastening washer
  4. Maximum adhesive strength achieved after 24 hours

These insulation fixing pins offer high penetration strength with all types of thermal insulation boards and are suitable for brick and concrete walls.

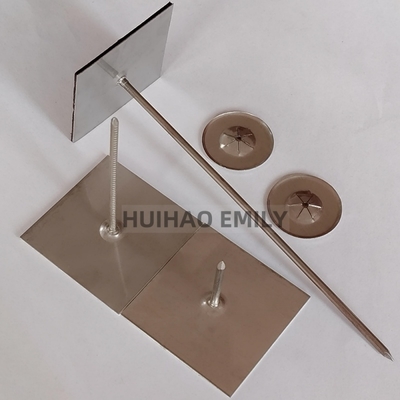

50x50mm Base Plate Self Sticking Insulation Hanger Pins For Exterior Wall Insulation 1
Compatible Fixing Parts
  • Round type self locking washers
  • Square type self locking washers
  • Metal dome cap washers
  • Speed clips with plastic cover

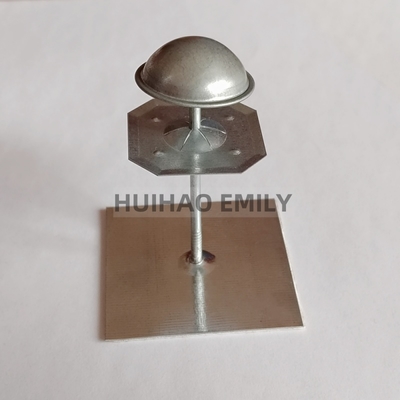

50x50mm Base Plate Self Sticking Insulation Hanger Pins For Exterior Wall Insulation 2
Packing Information
Pin Length Carton Size Quantity/Carton
38MM 41CM×28CM×17CM 1000PCS
50MM-65MM 41CM×28CM×17CM 500PCS
70MM-84MM 30CM×28CM×29CM 500PCS
90MM-120MM 30CM×30CM×30CM 500PCS
130MM-160MM 30CM×30CM×35CM 500PCS
170MM-203MM 30CM×30CM×28CM 250PCS
Others Custom packing supported
50x50mm Base Plate Self Sticking Insulation Hanger Pins For Exterior Wall Insulation 3
