50mmx38mm Acoustical panel insulation impaling clips with 8 pins

50mmx38mm Acoustical panel insulation impaling clips with 8 pins
50mmx38mm Acoustical panel insulation impaling clips with 8 pins 50mmx38mm Acoustical panel insulation impaling clips with 8 pins 50mmx38mm Acoustical panel insulation impaling clips with 8 pins

Large Image :  50mmx38mm Acoustical panel insulation impaling clips with 8 pins

Product Details:
Place of Origin: CHINA
Brand Name: HUIHAO
Certification: ISO9001
Model Number: 50mmX38mm
Payment & Shipping Terms:
Minimum Order Quantity: 3000pcs
Packaging Details: 1.500pcs/1000pcs per carton 2.then on pallet
Delivery Time: 10-15 days after confirm the order
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10000 pcs per day
Contact Now

50mmx38mm Acoustical panel insulation impaling clips with 8 pins

Description
Product Name: Impaling Clips Material: Stainless Steel / Galvanized Steel
Size: 50x38mm Height: 15mm
Thickness: 1mm Service: Door To Door Service
Sample: Support Application: Installing Fiberglass Acoustical Panel
Highlight:

Acoustical Panel Insulation impaling clips

,

8 Pins impaling clips

,

8 pins acoustical insulation impaling clips

50mmx38mm Acoustical Panel Insulation Impaling Clips with 8 Pins
Product Attributes
Attribute Value
Product name impaling clips
Material stainless steel / galvanized steel
Size 50x38mm
Height 15mm
Thickness 1mm
Service door to door service
Sample Support
Application Installing Fiberglass Acoustical Panel
Product Description
Quick Details
  • Material: galvanized steel, stainless steel 304, 316, 316L
  • Surface treatment: zin coated 40g/m3, 60g/m2, 80g/m2 or to be request
  • Hardness: impaling clips is enough hardness, easy for installation
  • Size: 50mmx38mm, 54mmx40mm, 80x50mm, other to be request
  • Height: 15mm/20mm
  • Intended use: To be used in conjunction with construction adhesive when installing fiberglass acoustical panels

Installation Note: Impaling Clips simplify the installation of rigid fiberglass acoustic panels. Use screws to fasten the impaling clip to the surface, apply PolyFoam Adhesive on the clip and acoustic panel then press the fiberglass panel to the clip.

  • Quick and easy installations
  • Installation with glue and screwed
  • 4 to 6 clips are recommended per 24"x48" piece of acoustic insulation
Product Images

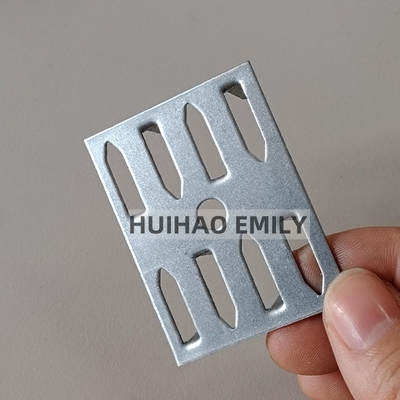

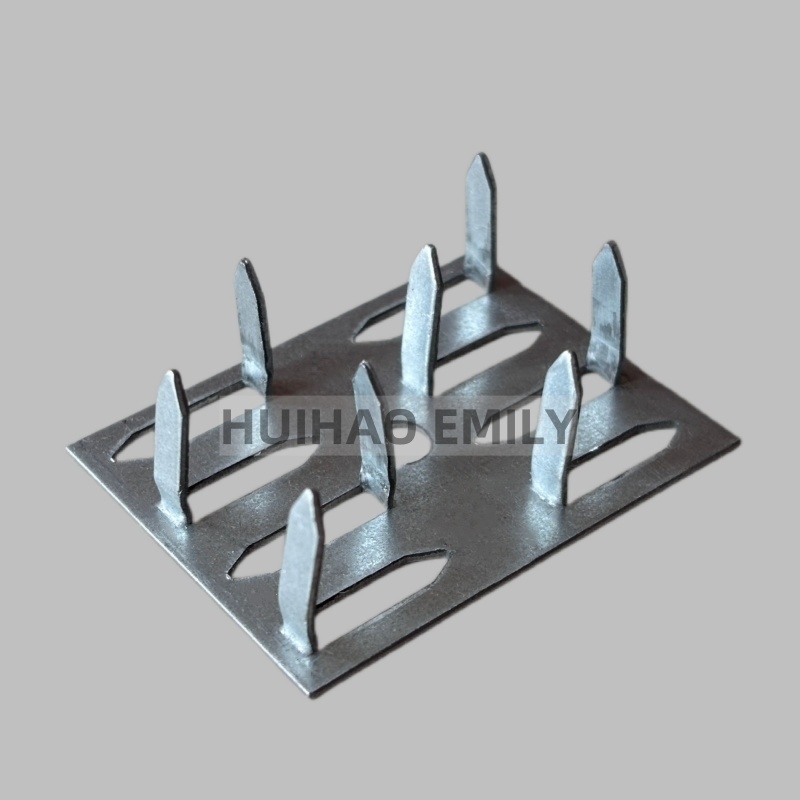

50mmx38mm Acoustical panel insulation impaling clips with 8 pins 0 50mmx38mm Acoustical panel insulation impaling clips with 8 pins 1
Specifications
Material Thickness Size Height Spikes Qty
stainless steel 1mm 50mmx38mm 15mm 8
galvanized steel 1mm 50mmx38mm 15mm 8
Stainless steel 1mm 54mmx40mm 20mm 8
Galvanzied steel 1mm 54mmx40mm 20mm 8
Stainless steel 1mm 80mmx50mm 4
Galvanized steel 1mm 80mmx50mm 4

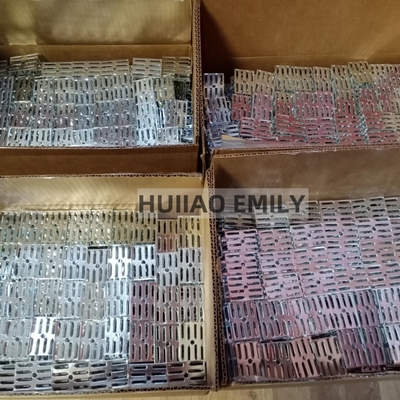

Packaging & Delivery

Standard Package:

  • 500 pcs per bag, 10 bags per carton, 64 cartons per pallet
  • Custom packaging available upon request

Delivery Options:

  • Sample: DHL/EMS/UPS/TNT/EXPRESS
  • Large Order: Recommended by SEA, or by AIR if in emergency
50mmx38mm Acoustical panel insulation impaling clips with 8 pins 2
Frequently Asked Questions
Q1: Are you factory or trader?

Yes, we sell what we manufacture.

Q2: How long is your delivery time?

Usually the ship time is within 7-15 days.

Q3: What is your quote elements?

The size of product, material with surface treatment and the quantity.

Q4: Can you provide samples? Is it free or in charge?

Yes, we can provide sample for we have in stock. For special sample you need pay the mold fee, the mold fee will return back you after confirm the mass order.

Q5: How can you ensure the quality?
  • We can supply CAD drawing pic for you
  • Our company have ISO certificate
  • We have working on this product for twenty years and we have experience on it, and we know the point you focus on
About HUIHAO Company

HUIHAO company is a insulation fasteners/insulation anchors manufacturing company. We produce all kinds of insulation pins and washers. We can make mold according to your drawing pic. Our products include:

  • CD weld pins Lacing Anchors
  • Bimetallic pin Cup head weld pins
  • Quilting pins perforated base pins
  • Self adhesive pins aluminum solar panel mesh clip
  • All kinds of self locking washers, Dome caps
50mmx38mm Acoustical panel insulation impaling clips with 8 pins 3
