22mm Stainless Steel Self Locking Dome Caps for Insulation Pins

22mm Stainless Steel Self Locking Dome Caps for Insulation Pins
22mm Stainless Steel Self Locking Dome Caps for Insulation Pins
22mm Stainless Steel Self Locking Dome Caps for Insulation Pins 22mm Stainless Steel Self Locking Dome Caps for Insulation Pins 22mm Stainless Steel Self Locking Dome Caps for Insulation Pins 22mm Stainless Steel Self Locking Dome Caps for Insulation Pins 22mm Stainless Steel Self Locking Dome Caps for Insulation Pins 22mm Stainless Steel Self Locking Dome Caps for Insulation Pins

Large Image :  22mm Stainless Steel Self Locking Dome Caps for Insulation Pins

Product Details:
Place of Origin: China
Brand Name: Huihao
Certification: iso9001-2008
Model Number: self locking dome caps
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Packaging Details: 1000pcs per bag, 4 bags per carton, or as your requirement
Delivery Time: 15 days after payment
Payment Terms: L/C,T/T,Western Union,PayPal
Supply Ability: 500,000 per 10 days
Contact Now

22mm Stainless Steel Self Locking Dome Caps for Insulation Pins

Description
Material: Stainless Steel AISI 304 Caps Dia: 7/8" / 22mm
Suit For: 2.0mm Pins Application: Caps For Board
Insert Washer Thickness: 0.4mm Dome Caps Height: 7mm
Highlight:

heat insulating washers

,

self locking dome caps

22mm 7/8" Dia Self Locking Dome Caps Stainless Steel Used For Fastening Insulation Pins
Product Specifications
Attribute Value
Material Stainless Steel AISI 304
Caps Dia 7/8" / 22mm
Suit For 2.0mm pins
Application Caps for board
Insert Washer Thickness 0.4mm
Dome Caps Height 7mm
Product Details

Material: Stainless Steel AISI 304 With Stainless Steel Insert

  • The "capped speed washer", or dome cap, provided by HUIHAO Fasteners is a two element self-locking washer.
  • This type of insulation washer consists of a spring clip retaining washer covered by an outer "cap".
  • This type insulation cap has become popular in insulation applications where cosmetics and personnel protection have importance.
  • Available to mate and hold on various weld pins and insulation anchors.
  • The capped washer is usually made in 14 gauge, 12 gauge and 10 gauge hole sizes.
  • Finishes often match insulation materials in use, with bright aluminum popular; various color choices also are presented with white finish in stock, and other colors available.
Technical Specifications
22mm Stainless Steel Self Locking Dome Caps for Insulation Pins 0
B A C
14 Ga (2mm) 7/8" (22mm) 9/32" (7.2mm)
12 Ga (2.7mm) 7/8" (22mm) 9/32" (7.2mm)
10 Ga 7/8" (22mm) 9/32" (7.2mm)
3mm 7/8" (22mm) 9/32" (7.2mm)
Product Images

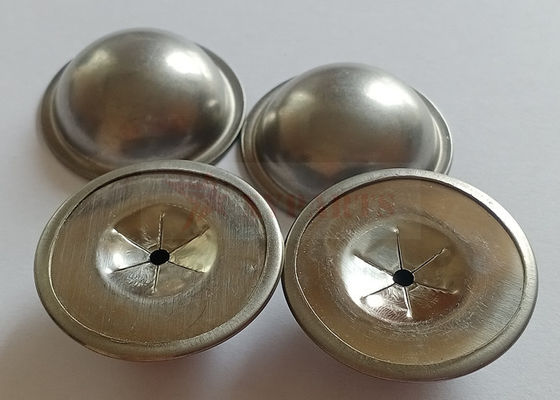

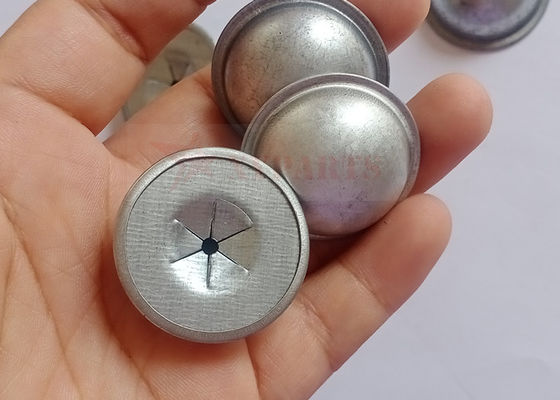

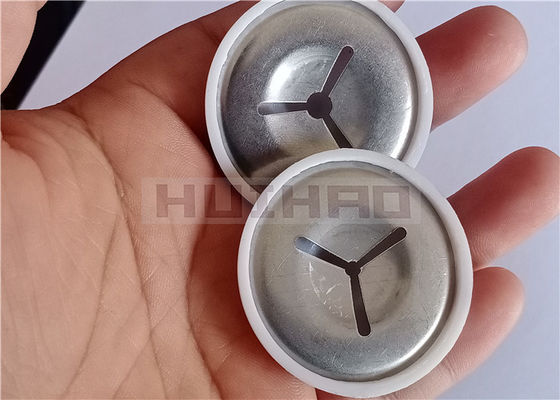

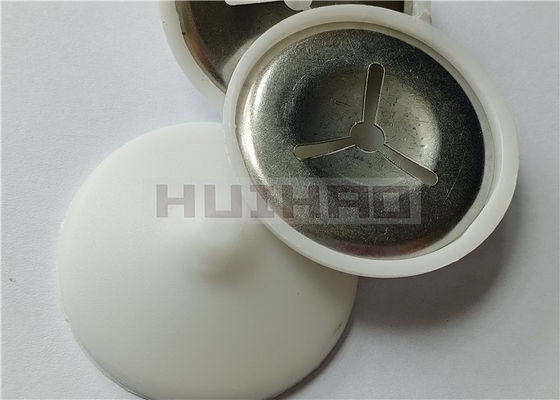

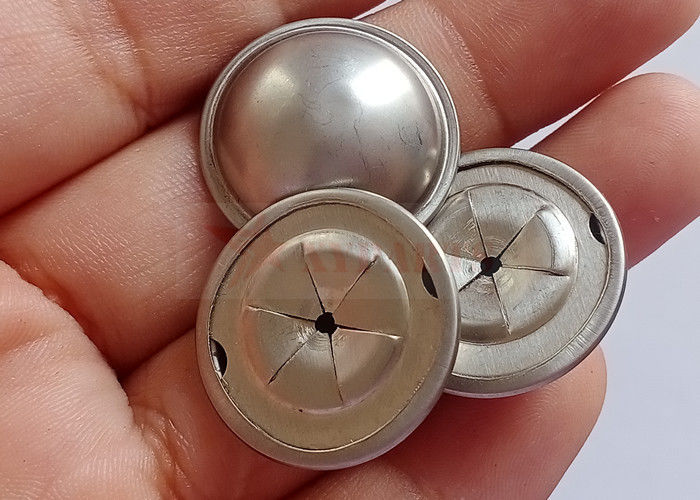

22mm Stainless Steel Self Locking Dome Caps for Insulation Pins 1
Related Products
22mm Stainless Steel Self Locking Dome Caps for Insulation Pins 2
Item: Self Locking Washers
Type: Round Or Square
Size: 25mm, 30mm, 38mm, 50mm, 60mm, 63.5mm etc.
22mm Stainless Steel Self Locking Dome Caps for Insulation Pins 3
Item: Self Locking Dome Caps
Type: Round
Size: 22mm, 30mm, 38mm, 40mm, 50mm etc.
Frequently Asked Questions
1. Are you a factory or a trader?

We have our own factory and international trading company.

2. Do you support product customization?

Yes, the material, the size, and the package all could be customized according to your special need.

3. How can I receive a quotation?

Please send us your product drawings or picture information via email, and we will provide you with a product quotation within 2 working days!

4. How can I get samples?

1) Standard products: We provide free samples under 5 dollars.
2) Custom products: We charge 1-3 times the unit price (based on product specifications).
3) Shipping methods are DHL, FedEX, TNT, UPS, EMS or others. You need to pay for shipping.
4) Samples will be sent as soon as payment is received.

5. What is your preferred payment item?

Samples are paid via paypal and T/T is 100% paid.
Bulk orders: T/T 30% prepaid, the balance should be paid before shipment.

Tag:

self locking dome caps,

insulation fixing washer,

heat insulating washers
