Product Details:
|
| Product Name: | 1" Cup Head Weld Pins With Insulated Paper | Material: | Galvanized Steel |
|---|---|---|---|
| Brand: | HUIHAO CUSTOM | Head Dia: | 30mm |
| Usage: | Fasten Foil Faced Insulation Materials | Pin Diameter: | 2.7mm |
| Samples: | Supported | Pin Length: | 25mm |
| High Light: | 1" cup head pins for insulation,ductwork cup head pins for insulation |
||

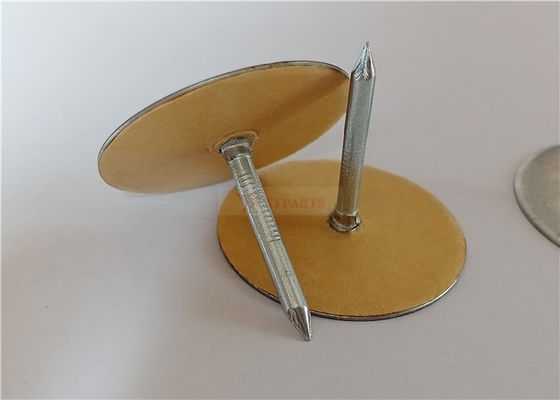

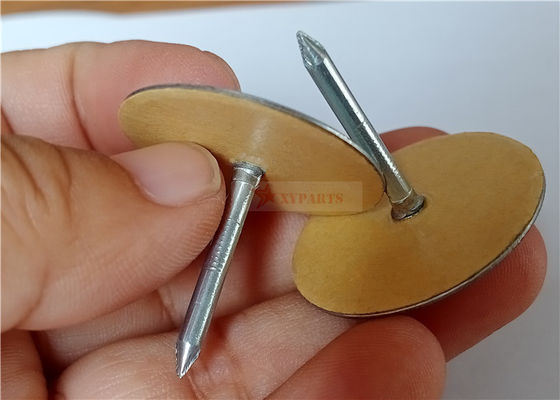

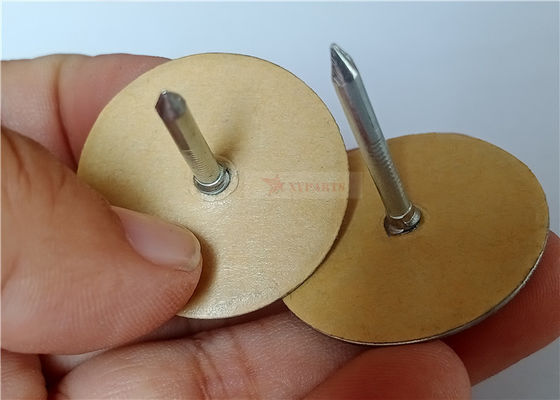

1" Cup head weld pins are used for aluminum foil faced insulation material.
It's a kind of fasteners which could be directly welded through the insulation to the sheet metals
allowing the fabrication to be done in one easy step.
So the cup head weld pins is a labor-saving insulation fastener, it is widely accepted in insulation
markets for use in industrial and commercial applications.
|
Item: 1" Cup Head Weld Pins Head Material: Galvanized steel
|
|
 |

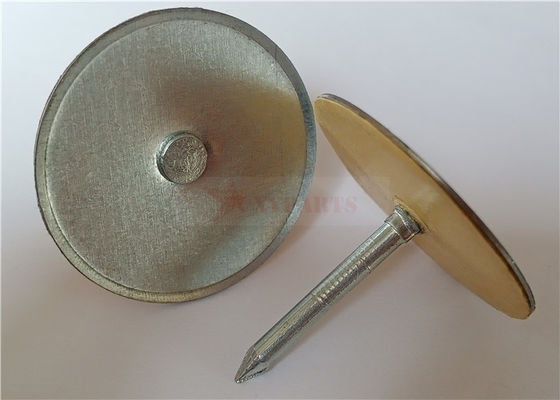

| Photo | Cup head weld insulation pins consist of a round washer and a nail. | |||||
|
Washer material |
Washer size (B) |
Nail material |
Nail dia (A) |
Pin length (L) |
|
| Galvanized steel |
25mm, 30mm, 38mm, |
Galvanized steel, Copper coated steel
|
2mm, 2.7mm, 3.0mm, 3.4mm |
3/8" - 12" | ||
| Note | The washer and nail size could be customized . | |||||
| Beveled edge cap | Prevents tearing of duct liner | |||||
| Faster welds | Forged diamond point design creates more electrical resistance for faster welds. | |||||
| Better plating | Zinc and copper plating exceeds SMACNA standards and gives a more professional appearance. | |||||
| Reduced down time | Consistent point quality reduces frequency of machine adjustments. | |||||
| Stronger welds | Hardened steel point assures positive electrical contact for complete sheet to pin fusion. | |||||
| Applied with standard equipment | Easily applied with automatic pin welder or most standard hand held or hopper fed resistance welders. | |||||
|
||||||
|
Item: Cup Head Weld Pins Application: used for fastening insulation material on metal surface Step: 1. Hanging the insulation |
| Recommended for | Pin length before welding | |||
| 1/2" insulation(all densities) | 12.67mm | |||
| 1" insulation(1-1/2"ib density) | 17.63mm | |||
| 1" foam | 25.55mm | |||
| 1" insulation(3ib densities) | 23.72mm | |||
| 1-1/2" insulation(all densities) | 28.42mm | |||
| 2" insulation(1-1/2"-2" ib density) | 37.95mm | |||
| 2" insulation(3ib densities) | 48.77mm | |||
| 3" insulation(all densities) | 69.85mm | |||
| 4" insulation(all densities) | 95.00mm | |||
|
1. 2000 pcs / 3000 pcs/ 5000 pcs per carton 2. 48 cartons per pallet
3. or according to your requirement.
|
|
|
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.
3. Can i get samples?
Yes, samples for quality confirm are supported in our company.
4. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.
4) We will send you videos and pictures during the production and shipment process.
5. What's your advantages?
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the on-time delivery.
3) Excellent quality: we have rich experience, our products are in line with international standard.
4) Good after-sale service: we offer good after-sale service for each order.
